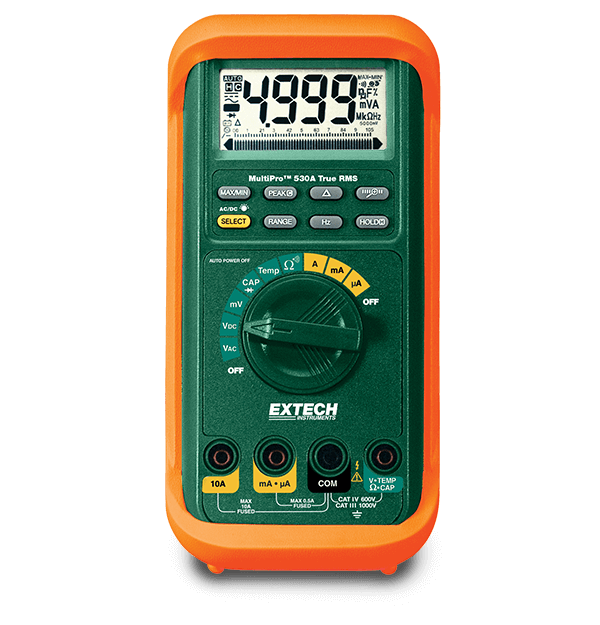

Extech MP530A
MultiPro® High-Performance MultiMeter
The Extech MP530A is a 5000 count, True RMS auto ranging Multimeter that measures AC/DC voltage and current, resistance, temperature, capacitance, and frequency with a 0.08% basic accuracy. Additional features include diode test, continuity check, auto power off, data hold, and low resistance auto lead zero, all on an easy to read, backlit display. Includes protective holster with built-in stand, test leads, Type K bead temperature probe, and 9 V battery.
Specifications
| General | |
|---|---|
| AC Current | 500µA, 5000µA, 50mA, 500mA, 5A, 10A |
| AC Current Basic Accuracy | ±(0.8% of reading + 4 digits) |
| AC Current Max Resolution | 0.1µA |
| AC Voltage | 50mV, 500mV, 5V, 50V, 500V, 1000V |
| AC Voltage Basic Accuracy | ±(0.8% of reading + 3 digits) |
| AC Voltage Max Resolution | 0.01mV |
| Capacitance | 50nF ,500nF, 5µF, 50µF, 500µF, 9999µF |
| Capacitance Max Resolution | 0.01nF |
| DC Current | 500µA, 5000µA, 50mA, 500mA, 5A, 10A |
| DC Current Basic Accuracy | ±(0.2% of reading + 4 digits) |
| DC Current Max Resolution | 0.1µA |
| DC Voltage | 50mV, 500mV, 5V, 50V, 500V, 1000V |
| DC Voltage Basic Accuracy | ±(0.08% of reading + 2 digits) |
| DC Voltage Max Resolution | 0.01mV |
| Frequency | 5Hz to 125kHz |
| Frequency Basic Accuracy | ±(0.01% of reading + 2 digits) |
| Frequency Max Resolution | 0.001Hz |
| Resistance | 50Ω, 500Ω, 5kΩ, 50kΩ, 500kΩ, 5MΩ, 50MΩ |
| Resistance Max Resolution | 0.01Ω |
| Temperature [Type K] Max Resolution | -58 to 1832 °F (-50 to 1000 °C ) |
| Temperature [Type N] | ±(0.3% of reading + 3 digits) |
| Temperature [Type N] Basic Accuracy | 1 °F/ °C |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | CE, UL |
| Dimensions | 7.32 × 3.42 × 1.39" (186 × 87 × 35.5mm) |
| Power | 1 × 9V battery |
| Safety Category | CATIV - 600V |
| Warranty | 2 years |
| Weight | 0.75lb (340g) |
