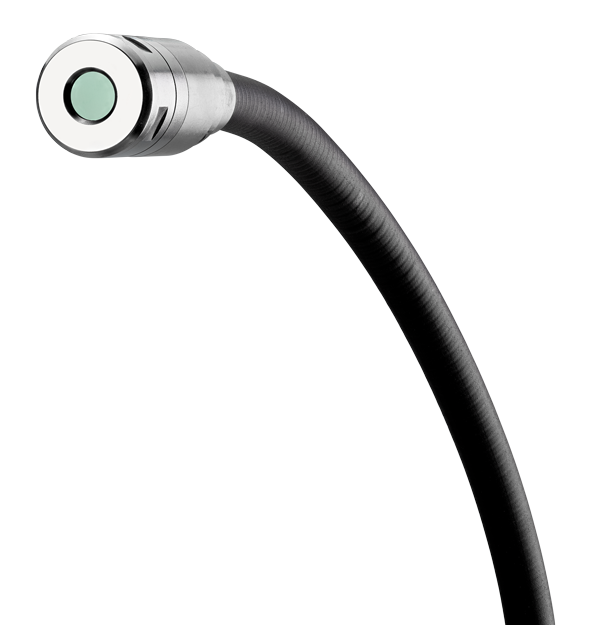

VS80 IR Thermal Camera Probe (VS80CIR-21)
VS80 IR Thermal Camera Probe 19 mm × 1 m long
160 × 120 thermal camera probe for the FLIR VS80 High-Performance Videoscope
The VS80IR-21 is a general purpose thermal camera probe for thermography inspections in difficult-to-access areas such as industrial gearboxes, aircraft engines, building attics, wall cavities, and crawl spaces.
Specifications
| Imaging & Optical | |
|---|---|
| Camera Length Range | >15 cm |
| Color Palettes | Iron, rainbow, grayscale, below alarm, above alarm |
| Depth of Field | 10 mm to infinity |
| Diameter | 19 mm |
| Field of view (FOV) | 71° |
| Frame Rate | 8.7 Hz |
| Image Resolution | 160 × 120 (19,200 pixels) thermal resolution |
| Measurement & Analysis | |
|---|---|
| Object Temperature Range | -10°C to 400°C (14°F to 752°)F |
| Spot Meter | Centre spot, hot spot, cold spot, no measurement |
| Environmental & Certifications | |
|---|---|
| Certifications | CE, UKCA, RCM |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) |
| Warranty | 3 years |
| General | |
|---|---|
| Probe Length | 1 m |
Resources & Support
User Manual
FLIR VS80 Camera Probe User Manual
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
