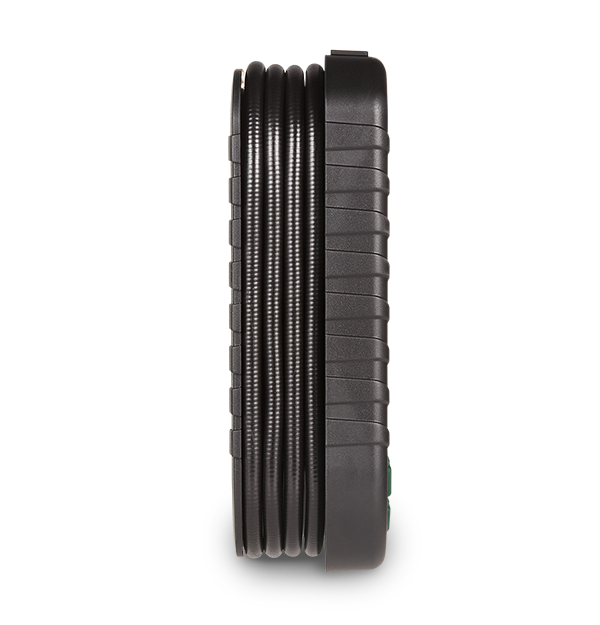

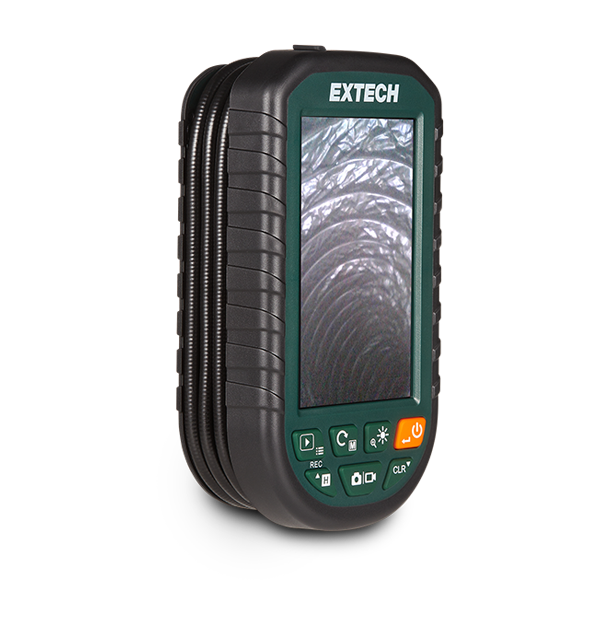

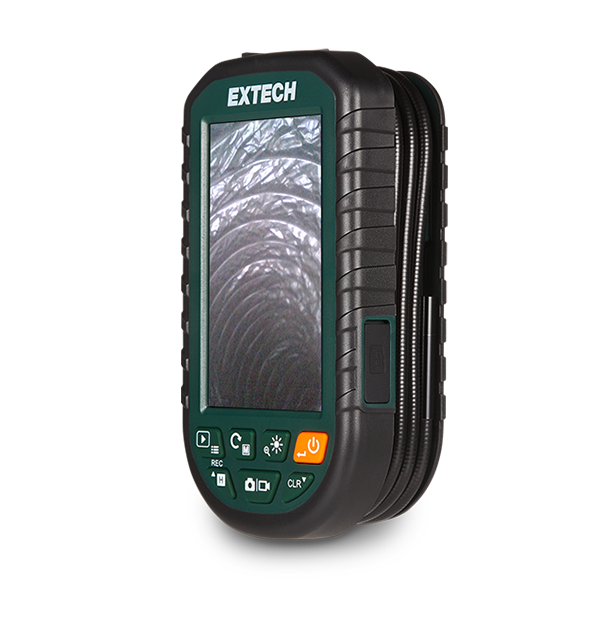

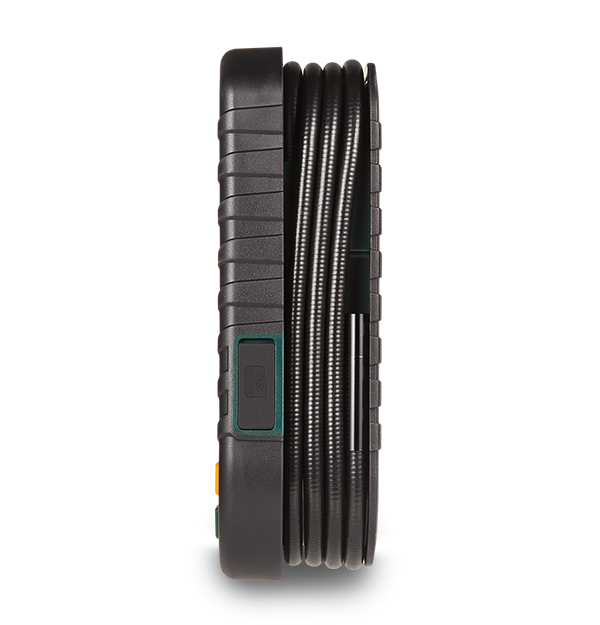

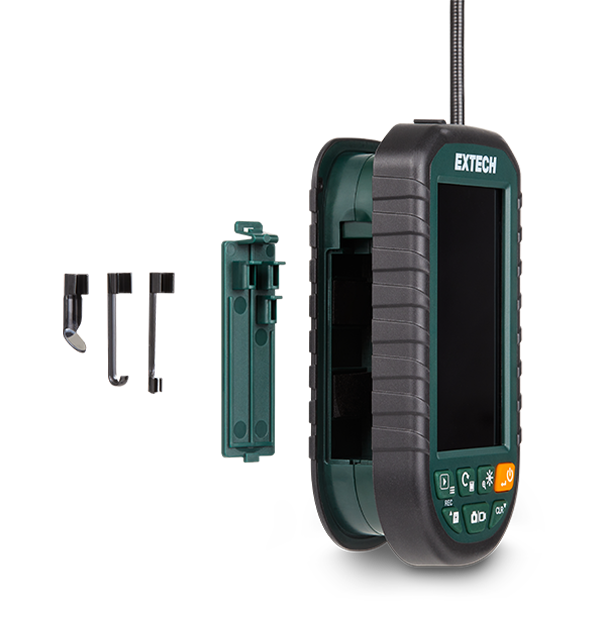

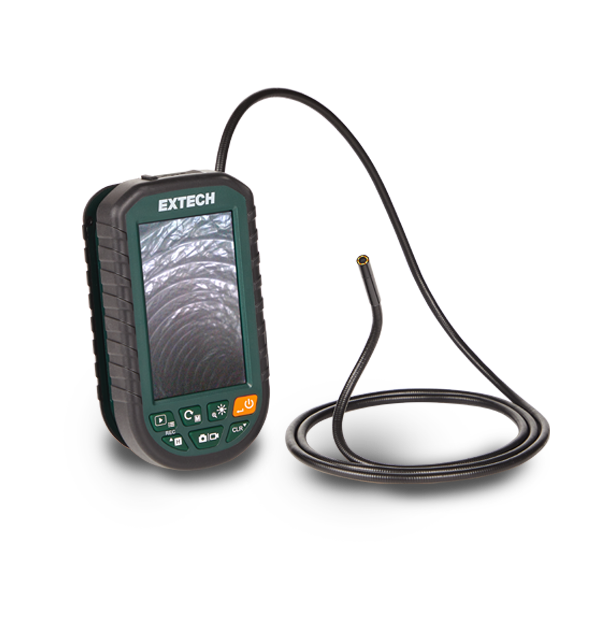

Extech’s palm-sized borescope includes a convenient compartment to coil the camera probe for easy storage. It features a waterproof (IP67) 5.5 mm camera probe with a 1 m flexible goose-neck cable that retains it’s configured shape. The camera delivers sharp 1280 × 720 resolution imaging, while the 3.5 in. IPS display provides clear viewing. Built-in bright LED lamps illuminate the inspection area, and additional features include 3x digital zoom, video recording capability, and microSD card storage for easy file management.
Spécifications
| Spécifications générales | |
|---|---|
| Champ de vision | 68° |
| Diamètre | 5.5 mm (0.22 in) |
| Direction du champ de la caméra | Forward |
| Distance de mise au point | 35 mm to 60 mm (1.4 in to 2.4 in) |
| Intervalle d’enregistrement des données | Configurable: 5s, 15s, 30s, 1 min |
| Longueur du câble | 1 m (3.28 ft) |
| Mémoire | 16 GB MicroSD card included (supports up to 256 GB) |
| Rayon de courbure minimum | 14 mm (0.56 in) |
| Résolution | Camera Probe: 1280 × 720 |
| Souplesse de la sonde | Semi-Rigid |
| Zoom | Digital 1x, 2x, 3x |
| Détails supplémentaires | |
|---|---|
| Alimentation | 3.7 V Li-Ion Battery with 3.5 Hour Operating Time Auto Power Off: Configurable: 5 min, 10 min, 20 min, off |
| Certifications | CE, UKCA |
| Conditions de fonctionnement | 0°C to 45°C (32°F to 113°F), <85% RH |

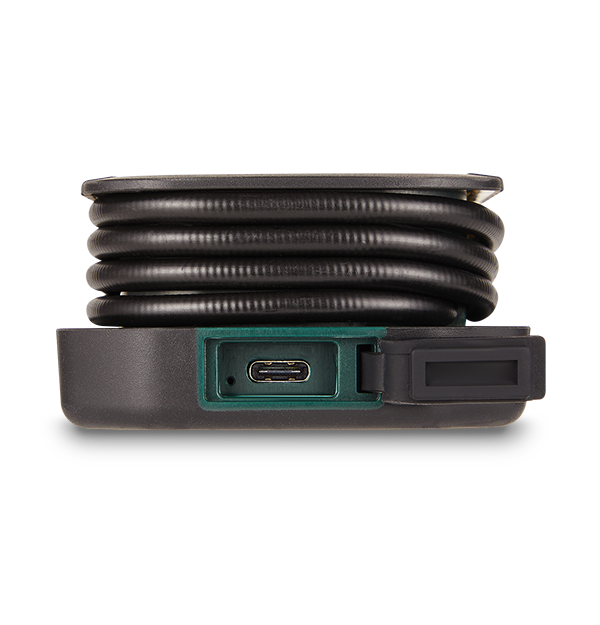

| Connecteur(s) | USB Type-C |
| Dimensions | 129 × 73 × 39 mm (5.1 × 2.9 × 1.5 in) |
| Garantie | 2 years |
| Indice IP | IP67 (Camera Probe only) |
| Journalisation des données | Available only when the compatible external USB sensor is connected |
| Poids | 262 g (0.58 lb) |
| Écran | 3.5 in IPS Display (800 × 480) |
