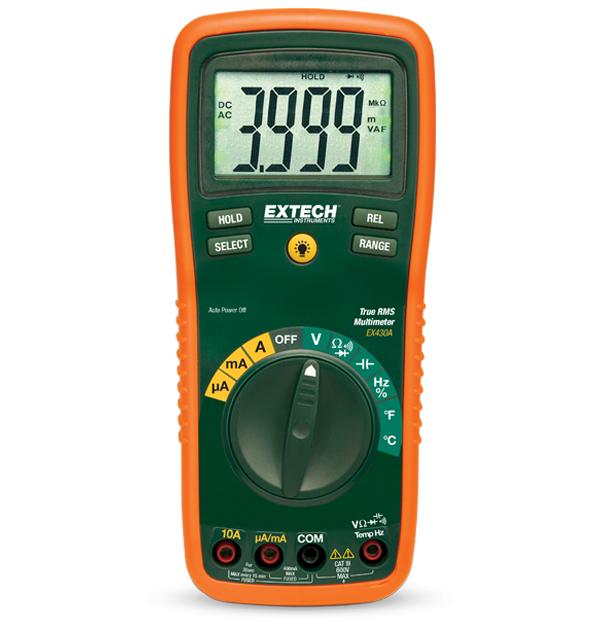

The Extech EX430A True RMS autoranging Multimeter (with K Type, capacitance, frequency, and duty cycle) is a professional-grade multimeter capable of performing a wide range of measurements. Functions include AC and DC voltage to 600 V, AC and DC current to 10 A, resistance to 40 MOhm, continuity, and diode test. It also includes a Type K thermometer function for contact or air temperature measurements from -20°C to 750°C (-4°F to 1832°F). Advanced functions include capacitance, frequency, and duty cycle. This meter comes complete with test leads, Type K temperature probe, 9 V battery, protective holster, adjustable tilt stand, and a velcro hanging strap.
Spécifications
| Spécifications générales | |
|---|---|
| Continuité | Yes |
| Courant CA | 0.1mA to 10A |
| Courant CC | 0.1µA to 10A |
| Précision de base de la tension CA | ±0.3% |
| Précision de base de la tension CC | ±0.5% |
| Précision de base du courant CA | ±0.5% |
| Précision de base du courant CC | ±0.5% |
| Résistance | 0.1Ω to 20MΩ |
| Résolution maximale de la température (type K) | -4 to 1382°F (-20 to 750°C) |
| Tension CA | 1mV to 600V |
| Tension CC | 0.1mV to 600V |
| Test de diodes | Yes |
| Valeurs efficaces (TRMS) | Yes |
| Détails supplémentaires | |
|---|---|
| Alimentation | 1 × 9V battery |
| Catégorie de sécurité | CATIII - 600V |
| Certifications | CE |
| Dimensions | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| Garantie | 2 years |
| Poids | 0.75lbs (342g) |
Ressources et assistance
User Manual
Manuel d'utilisation Extech EX430A
Certification
Extech EX430A Declaration of Conformity
User Manual
Extech EX430A User Manual
Datasheet
Extech EX4xxA Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
