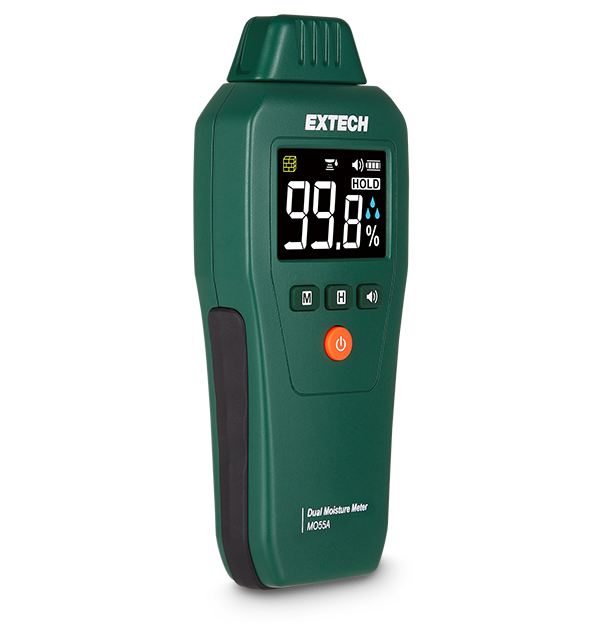

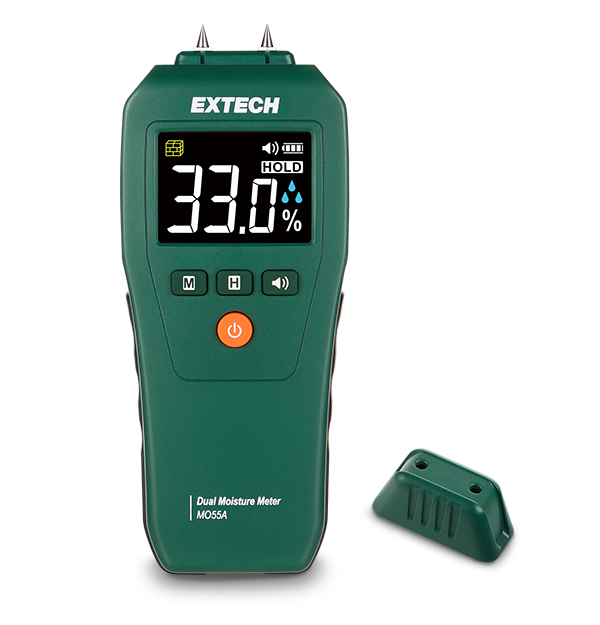

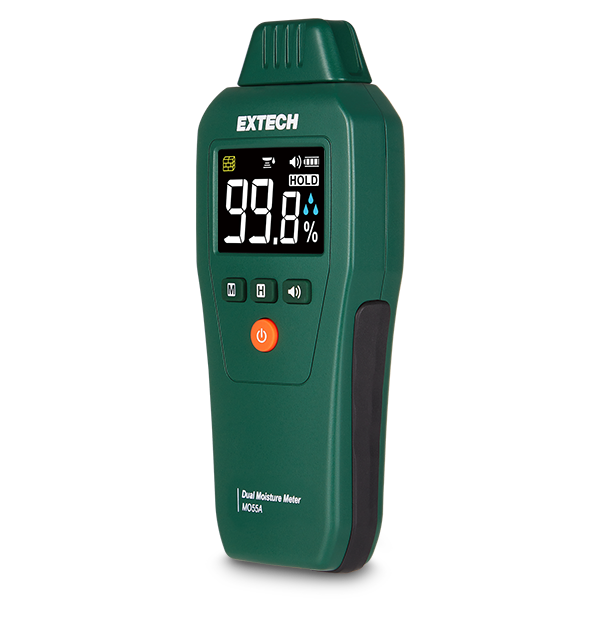

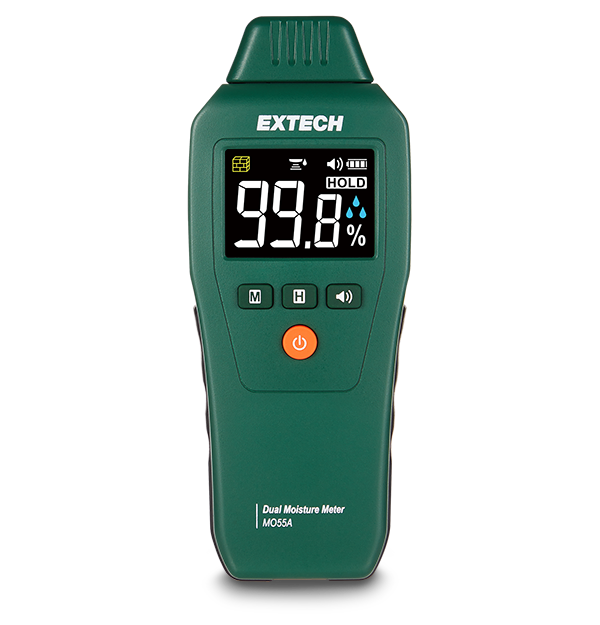

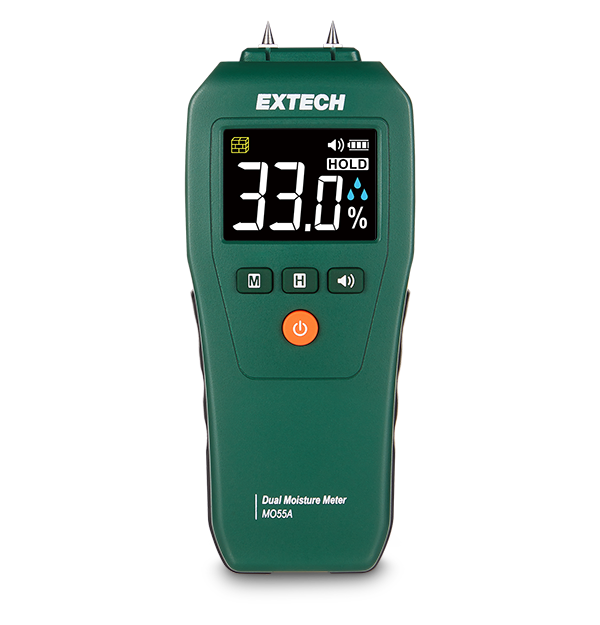

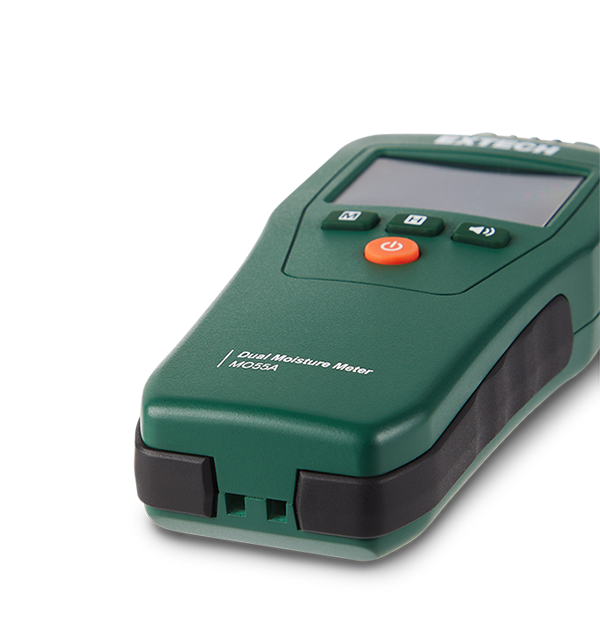

Take quick moisture measurements from a variety of building materials using either the pin or pinless (non-invasive) method with the Extech MO55A. This easy-to-use moisture meter features a high-contrast color LCD with backlight for clear visibility in any environment. It uses intuitive display icons to indicate moisture levels and provides an audible alert that speeds up as moisture increases. Ideal for building restoration projects and applications where detecting moisture on floors, tiles, and under carpets is critical, the MO55A is also essential for analyzing the after-effects of water leakage behind walls and in ceilings.
Spécifications
| Spécifications générales | |
|---|---|
| Contenu en humidité WME (Pin) | Wood Range: 5.0% to 50.0% Building Material Range: 1.5% to 33.0% |

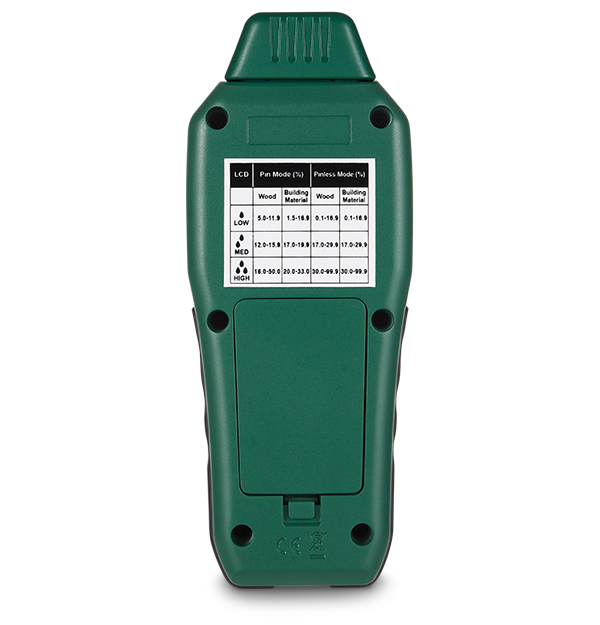

| Plage de mesure | Wood: Low: 1.5% to 16.9% Medium: 12% to 15.9% High: 16% to 50% Building Material Low: 1.5% to 16.9% Medium: 17% to 19.9% High: 20% to 33% |
| Plage de températures de stockage | 0°C to 50°C (32°F to 122°F); < 85% RH |
| Principe de mesure | Electrical resistance (pins); Capacitance (pinless) |
| Profondeur de mesure | Pinless < 25 mm (1 in) |
| Précision de base du contenu en humidité WME (Pin) | ±(3% + 5 digits) at 22°C to 25°C (72°F to 77°F) |
| Résolution maximale du contenu en humidité WME (Pin) | 0.1% |
| Teneur relative en humidité (sans Pin) | Wood: 0.0% to 99.9% Other building materials: 0.0% to 99.9% up to 25 mm (1 in) deep various with material under test |

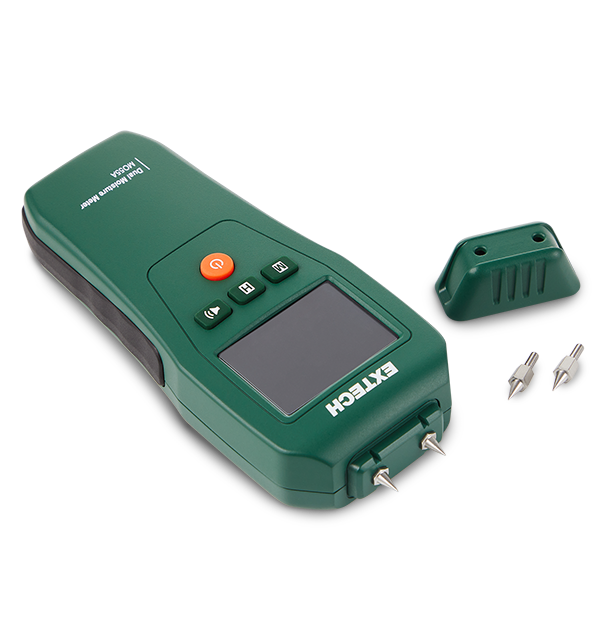

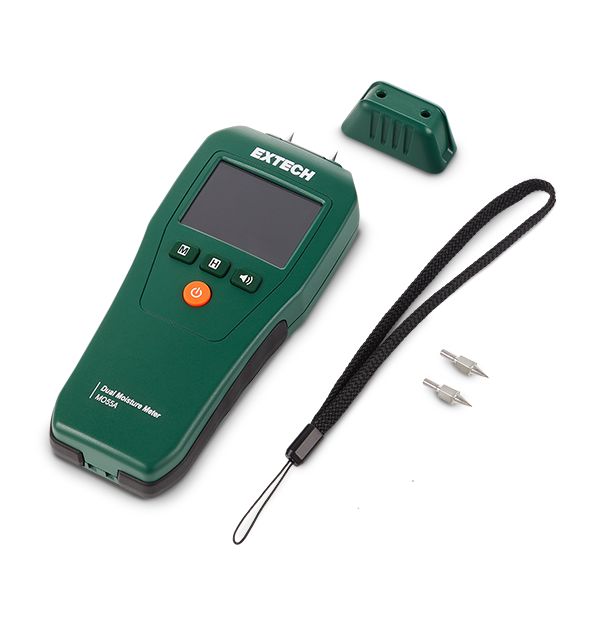

| Type de capteur | Replaceable threaded contact pins, 8 mm (0.3 in); non-penetrating electromagnetic sensor pad |
| Détails supplémentaires | |
|---|---|
| Alimentation | Auto Power Off after approx. 3 minutes |
| Certifications | CE, UKCA |
| Conditions de fonctionnement | 5°C to 45°C (41°F to 113°F); < 80% RH |
| Dimensions | 171.6 × 68 × 32.5 mm (6.7 × 2.7 × 1.3 in) |
| Garantie | 2 years |
| Poids | 151 g (0.33 lb) excluding batteries |
| Type de batterie | 3 × 1.5 V, AAA batteries |
| Écran | Backlit Color LCD |
Ressources et assistance
User Manual
Manuel d'utilisation de l'Extech MO55A
Datasheet
Extech MO55A Datasheet
User Manual
Extech MO55A User Manual
