Discontinued

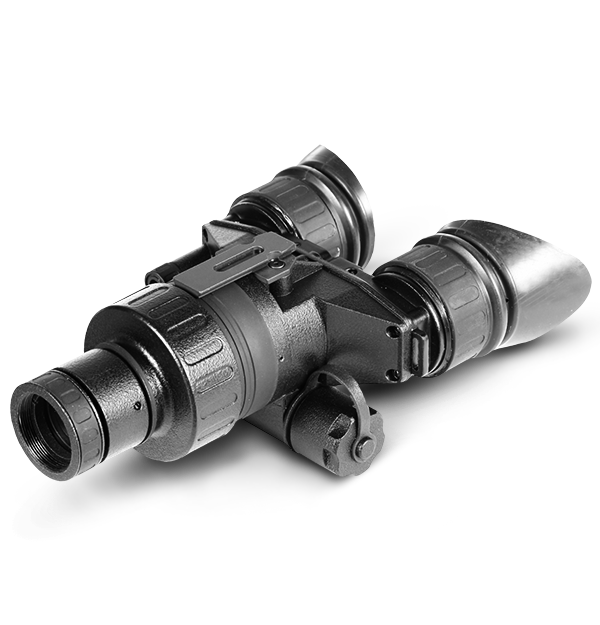

Nyx-7
Night Vision Goggles
The FLIR Nyx-7 bi-ocular goggle system offers clear and bright night vision in minimal light conditions. High-grade optics, intuitive electronics, and Gen 2+ image intensifier tubes offer reliable vision while head or helmet mounting options allow exceptional hands-free use. Available 3x or 5x magnification lenses and attachable high-powered IR illuminator add mid- to long-range viewing capability.
Reliable Vision in a Customizable System
Built-in IR illuminator and ruggedized weather-resistant housing maintain imaging performance in difficult conditions
Head and helmet mounting options, external illuminator, and available magnified lenses enhance user-customization.
Automatic brightness control and 60-hour battery life offer reliable and long-lasting night vision.
Spécifications
| Capteurs et optique | |
|---|---|
| Champ de vision | 40° |
| Contrôle de la luminosité automatique | Yes |
| Diamètre de pupille de sortie [mm] | 14 mm |
| Dégagement oculaire | 16 mm |
| Grossissement | 1x standard (3x, 5x optional) |
| Génération IIT | Gen 2+ SD (Standard Definition) |
| Illuminateur infrarouge | Yes |
| Plage de mise au point | 0.25 m to Infinity |
| Réglage dioptrique | ±5 diopter |
| Résolution | 45-51 lp/mm |
| Seuil lumière vive | Yes |
| Système d’objectif | F/1.2; 24 mm |
| Type de photocathode | Multi-Alkali |
| Spécifications environnementales et validations | |
|---|---|
| Température de fonctionnement | -40°C to +50°C (-40°F to +122°F) |
| Température de stockage | -50°C to +70°C (-58°F to +158°F) |
| Alimentation | |
|---|---|
| Alimentation | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| Autonomie de la batterie | Up to 60 hours |
| Indicateur de batterie faible | Yes (In FOV) |
| Mise hors tension automatique | Yes |
| Stockage des fichiers et communications | |
|---|---|
| Télécommande | - |
| UI-UX | |
|---|---|
| Contrôle de gain manuel | No |
| Couleur du réticule | - |
| Indicateur IR | Yes (In FOV) |
| Présentation du système | |
|---|---|
| Dérivation_Réglage élévation | - |
| Garantie | 2 Years |
| Hauteur de l'axe de l'optique au-dessus du rail | - |
| Type de réticule | - |
| Caractéristiques physiques | |
|---|---|
| Dimensions (L x l x H) | 150 × 102 × 70 mm (5.9 × 4 × 2.8 in) |
| Montage sur trépied | - |
| Poids du produit | 0.45 kg (0.9 lbs) |
| Accessoires | |
|---|---|
| Accessoires en option | ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, PASGT Helmet Mount Assembly USA #108 with Adapter/Swing Arm #37 , MICH Helmet Mount Assembly USA #107 with Adapter/Swing Arm #37, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, 3x Afocal Lens Kit: Lens #22 with Adapter #23, Helmet Mount #183 (Shroud), Adapter #59, 5x Afocal Lens with Adapter #23, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, XLR-IR850 Detachable X-Long Range Infrared Illuminator w/Dovetail to Weaver Transfer Piece #21, Mil-Standard Hard Shipping/Storage Case #101, Helmet Mount #4 |
| Accessoires inclus | One Lithium Battery CR123A, Soft carrying Case, Instruction Manual with Warranty Card, Goggle Kit #2, Battery adapter CR123A 3V / AA 1.5V, Lens Tissue, Packing Box |
