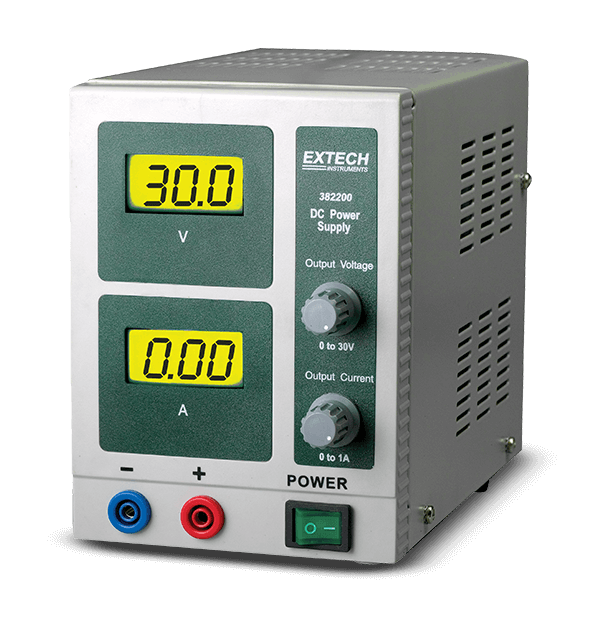

Extech 382200
Alimentation CC 30 V/1 A à sortie unique
Alimentation CC numérique à tension/courant uniforme avec double écran LCD
Spécifications
| Caractéristiques générales | |
|---|---|
| Line Current Regulation | <0,2 % + 3 mA |
| Line Voltage Regulation | <0,01 % + 3 mV |
| Load Current Regulation | <0,2 % + 3 mA |
| Load Voltage Regulation | <0,01 % + 2 mV |
| Output Current | 0 - 1,00 A CC |
| Output Current Basic Accuracy | ±2 % de la mesure |
| Output Voltage | 30,0 V CC |
| Output Voltage Basic Accuracy | ±1,5 % de la mesure |
| Ripple and Noise | <0,5 mV/<3 mA |
| Détails supplémentaires | |
|---|---|
| Dimensions | 240 × 108 × 154 mm (9,4 × 4,25 × 6 po) |
| Power | 115 V/230 V ; 50/60 Hz |
| Warranty | 2 ans |
| Weight | 2 kg (4,4 oz) |
