Discontinued

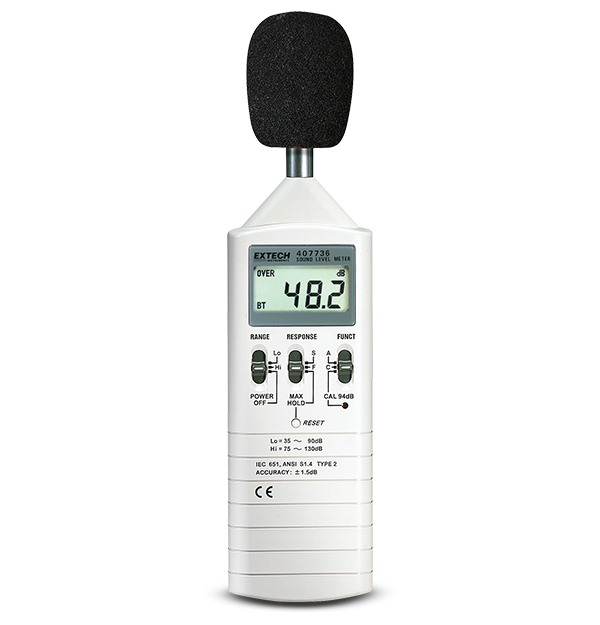

Extech 407736
Dual Range Sound Level Meter
The Extech 407736 Dual Range Sound Level Meter measures from 35 dB to 130 dB ±1.5 dB, and it meets both ANSI and IEC Type 2 standards. It features a fast and slow response time, A/C weighting, max hold function, and an analog AC/DC output for connection to an analyzer or recorder. Comes complete with microphone wind screen, 9 V battery, and carrying case.
Spécifications
| Caractéristiques générales | |
|---|---|
| Coefficient | A,C |
| Microphone | Condenser, 0.5” (12.7mm) |
| Plage sonore (dB) | Low: 35 to 90dB; High: 75 to 130dB |
| Précision de base de la plage sonore (dB) | ±1.5dB (Type 2) |
| Résolution max. de la plage sonore (dB) | 0.1dB |
| Sortie analogique | AC/DC |
| Temps de réponse | Fast/Slow |
| Détails supplémentaires | |
|---|---|
| Alimentation | 1 × 9V battery |
| Certifications | CE |
| Dimensions | 9.5 × 2.7 × 1" (241 × 69 × 25mm) |
| Garantie | 2 years |
| Poids | 7.6oz (215g) |
Ressources et assistance
User Manual
Manuel d’utilisation de la Extech 407736
Certification
Extech 407736 Declaration of Conformity
Datasheet
Extech 407735 407736 Datasheet
User Manual
Extech 407736 User Manual GB
