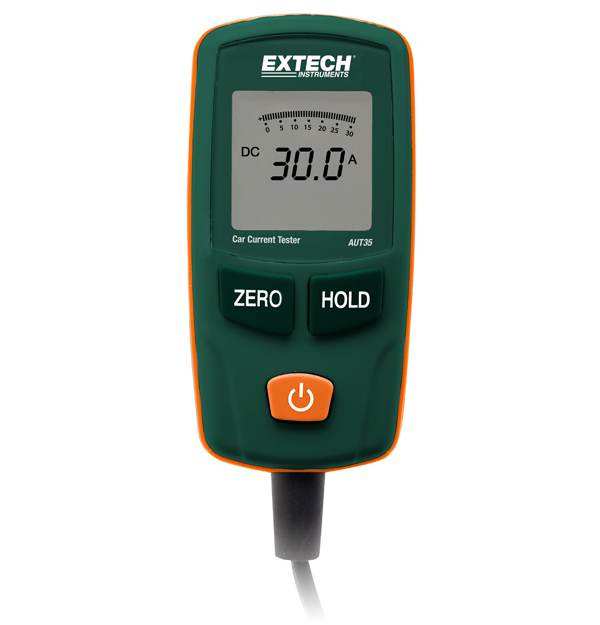

Extech AUT35
Universal 30A Current Tester
Check up to 30 Amps without breaking the circuit with the Extech AUT35 Current Tester. Mini-blade and ATC blade connectors plug into the fuse block. It has a measuring range of 30 Amps/48 VDC (10 seconds max) with 100 mA resolution and ± a (2% + 2 digits) accuracy. Results are displayed on a 3.5-digit LCD with a bargraph. Includes alligator clips.
Spécifications
| Caractéristiques générales | |
|---|---|
| Courant CC | 0 to 30A DC |
| Distance de détection | <0.2" |
| Précision de base du courant DC | 100mA |
| Résolution max. du courant DC | ±(2.0% of reading + 2 digits) |
| Tension CC | 48V DC |
| Détails supplémentaires | |
|---|---|
| Alimentation | 1 × 9V battery |
| Certifications | CE |
| Dimensions | 86 × 37 × 28mm (3.4 × 1.5 × 1.1") |
| Garantie | 2 years |
| Poids | 68g (0.15 lbs.) |
Ressources et assistance
Certification
Extech AUT35 Declaration of Conformity
Datasheet
Extech AUTxx Datasheet
User Manual
Extech AUT35 User Manual GB
Export Restrictions
