Discontinued

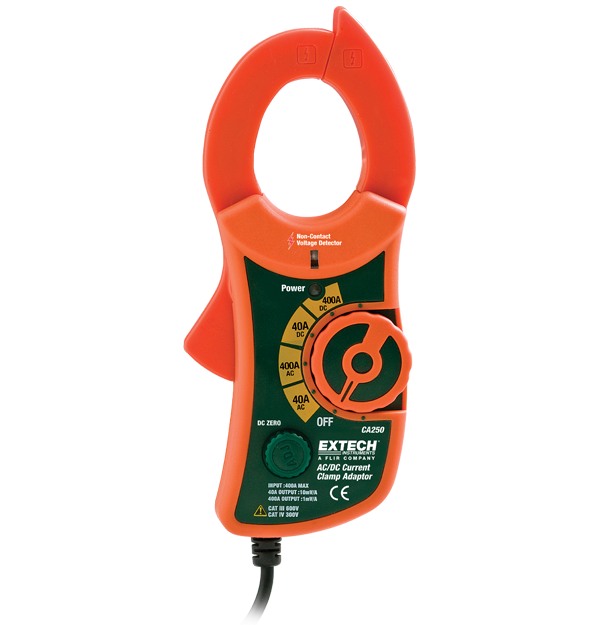

Extech CA250
400A AC/DC Clamp-on Adaptor + NCV
The Extech CA250 is a 400 A AC/DC Clamp-on Adaptor with built in NCV that can be used with any multimeter with a 1 mV input and accepts standard banana plugs. It has a 30 mm (1.2 in) clamp jaw and 2.5% accuracy. Additional features include a built in, non-contact voltage detector with LED alerts and a DC zero adjust. Comes complete with built in 1.1 m (3.8 ft) cable with banana plugs and two AAA batteries.
Spécifications
| Caractéristiques générales | |
|---|---|
| Courant CA | 0 to 40A (10mV per Amp output); 0 to 400A (1mV per Amp output) |
| Courant CC | 0 to 40A (10mV per Amp output); 0 to 400A (1mV per Amp output) |
| Dimensions de la mâchoire | 30mm (1.2") |
| Fréquence | 50/60Hz |
| Précision de base du courant CA | ±(2.5% of rerading + 0.1A) at 0 to 40A; ±(2.8% of reading + 0.5A) at 0 to 400A |
| Précision de base du courant DC | ±(2.5% of rerading + 0.1A) at 0 to 40A; ±(2.8% of reading + 0.5A) at 0 to 400A |
| Détails supplémentaires | |
|---|---|
| Alimentation | 2 × AAA (1.5V) batteries |
| Catégorie de sécurité | CATIII - 600V, CATIV - 300V |
| Certifications | CE |
| Dimensions | 5.8 × 2.3 × 1.3" (146 × 60 × 32mm) |
| Garantie | 2 years |
| Poids | 8oz (226g) |
Ressources et assistance
Datasheet
Extech CA250 Datasheet
User Manual
Extech CA250 User Manual GB
Certification
Extech CA250 Declaration of Conformity
Export Restrictions
