Discontinued

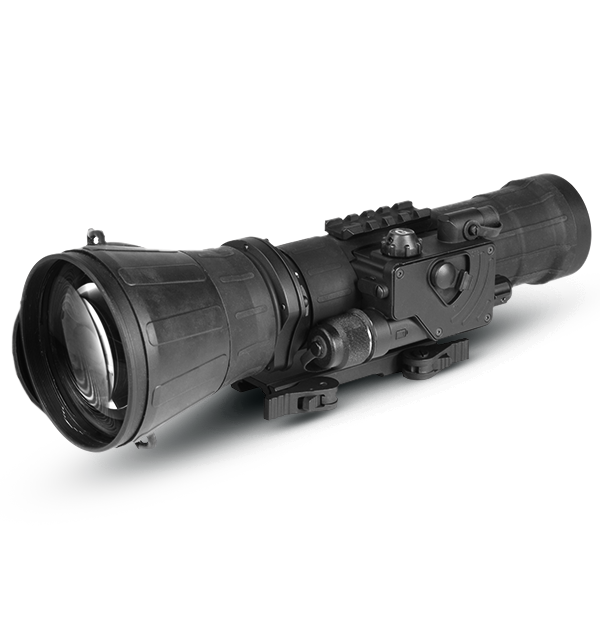

FLIR CO-XLR-LRF
145 mm Night Vision Clip-On System
The FLIR CO-XLR-LRF is the most advanced night vision clip-on in its family. High-performance image intensifier tubes and extra long-range 145 mm optical lens generate superior imagery for engaging targets at extended distances. Installed in front of a standard day optic, the CO-XLR-LRF offers immediate high-quality night vision and precise shot placement—no rezeroing needed. Included XRL IR illuminator maintains excellent image quality in adverse lighting conditions.
Elite Long-Range Performance
145 mm lens and Gen 3 intensifier tubes generate outstanding long-range night vision and quickly detect targets downrange.
Front-mounting allows consistent ballistic reticle use and maintains familiar shot position, release, and follow-through.
Quick-release Picatinny mounting ensures proper rail position and installs in seconds—no tools required.
Spécifications
| Capteurs et optique | |
|---|---|
| Champ de vision | 7° |
| Contrôle de la luminosité automatique | Yes |
| Diamètre de pupille de sortie [mm] | 50 mm |
| Dégagement oculaire | - |
| Grossissement | 1x (recommended to use with up to 16x day time optics) |
| Génération IIT | Gen 3 Alpha (High Performance) MG |
| Illuminateur infrarouge | Detachable Long Range IR |
| Plage de mise au point | 25 m to Infinity |
| Réglage dioptrique | - |
| Résolution | 64-72 lp/mm |
| Seuil lumière vive | Yes |
| Système d’objectif | F/1.8; 145 mm |
| Type de photocathode | GaAs |
| Spécifications environnementales et validations | |
|---|---|
| Température de fonctionnement | -40°C to +50°С (-40°F to +122°F) |
| Température de stockage | -50°C to +70°С (-58°F to +158°F) |
| Alimentation | |
|---|---|
| Alimentation | CR123 Lithium 3V (1) or AA Alkaline 1.5V (1) or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| Autonomie de la batterie | Up to 60 hours |
| Indicateur de batterie faible | Yes (in FOV) |
| Mise hors tension automatique | Yes |
| Stockage des fichiers et communications | |
|---|---|
| Télécommande | Wireless |
| UI-UX | |
|---|---|
| Contrôle de gain manuel | Yes |
| Couleur du réticule | - |
| Indicateur IR | No |
| Présentation du système | |
|---|---|
| Dérivation_Réglage élévation | - |
| Garantie | 2 Years |
| Hauteur de l'axe de l'optique au-dessus du rail | 40 mm |
| Type de réticule | - |
| Caractéristiques physiques | |
|---|---|
| Dimensions (L x l x h) | 304 × 104 × 94 mm (12.0 × 4.0 × 3.7 in) |
| Montage sur trépied | - |
| Poids du produit | 1.30 kg (2.86 lbs) |
| Accessoires | |
|---|---|
| Accessoires en option | Extended Rail Adapter #85, FSRS (Front Scope Rail System) #38, Mil-Standard Hard Shipping/Storage Case #102, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, AMRF2200 - Advanced Modular Range Finder |
| Accessoires inclus | Battery adapter CR123A 3V / AA 1.5V, XLR-IR850 Detachable X-Long Range Infrared Illuminator, Adjustment-Control-Device, Battery, Picatinny adapter for AWReC (Advanced Wireless Remote Control, AWReC (Advanced Wireless Remote Control) #94, Instruction Manual with Warranty Card, Special Wrench, Light-Suppressor, Soft carrying Case, Packing Box, Lens Tissue |
