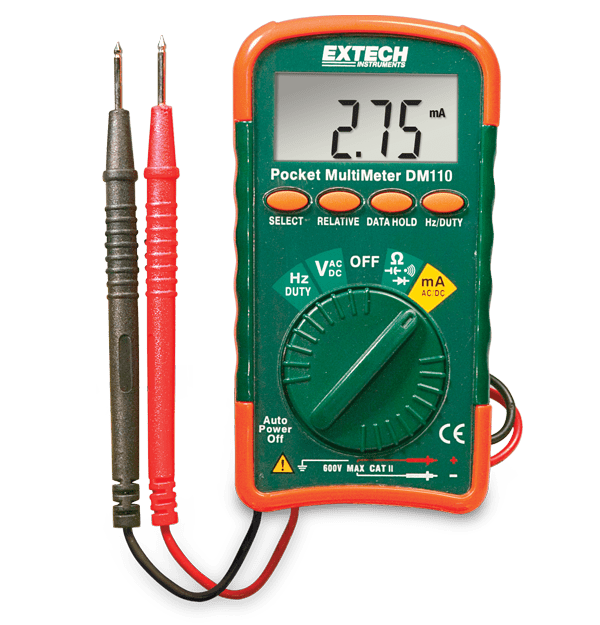

Extech DM110
Mini Pocket MultiMeter
Extech's DM110 offers full function versatility and the most pocket-friendly multimeter size available. The compact, autoranging DM110 digital Mini Multimeter is equipped with capabilities that are perfect for a electrical hobbyist, electronics tinkerer, or DIYer. Use this meter to perform more in depth testing to troubleshoot anything connected to an outlet, such as any electronic devices found around the home and garage. The DM110 is great for automotive and marine electrical applications, A/V projects, Arduino projects, and secondary home wiring systems like security alarms and thermostat circuits. It includes a protective rubber holster with storage clips to retain the integrated test leads, soft carrying case, CR2032 button battery, user manual, and one year limited warranty.
Spécifications
| Caractéristiques générales | |
|---|---|
| Capacitance | 100µF |
| Continuité | Yes |
| Courant CA | 400mA |
| Courant CC | 400mA |
| Fréquence | 5Hz to 10MHz |
| Précision de base de la fréquence | ±2% |
| Précision de base de la tension CA | ±2.3% |
| Précision de base de la tension DC | ±1.3% |
| Précision de base du courant CA | ±2.5% |
| Précision de base du courant DC | ±2.0% |
| Précision de base du rapport cyclique | ±1.2% |
| Rapport cyclique | 0.1% to 99.9% |
| Résistance | 400 to 40MΩ |
| Résolution max. de capacité | 0.001nF |
| Résolution max. de la fréquence | 0.001Hz |
| Résolution max. de la résistance | 0.1Ω |
| Résolution max. de la tension CA | 1mV |
| Résolution max. de la tension DC | 1mV |
| Résolution max. du courant CA | 0.01mA |
| Résolution max. du courant DC | 0.01mA |
| Résolution max. du rapport cyclique | 0.10% |
| Tension CA | 500V |
| Tension CC | 500V |
| Test de diodes | Yes |
| Détails supplémentaires | |
|---|---|
| Alimentation | 1 × CR2032 (3V) battery |
| Catégorie de sécurité | CATII - 600V |
| Certifications | CE, UL |
| Dimensions | 4.25 × 2.2 × 0.5”(108 × 56 × 11.5mm) |
| Garantie | 2 years |
| Poids | 1.7oz (50g) |
