Extech EX210T
TrueRMS Digital Multimeter with IR

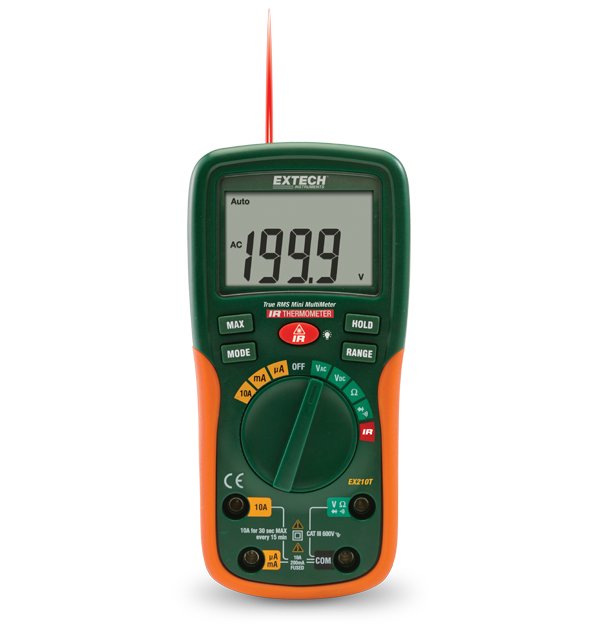

The Extech EX210T is a TrueRMS Digital Multimeter with IR. The meter auto ranges and has a 2000 count large LCD display. It measures AC/DC voltage and current, resistance, and temperature (IR). Its True RMS measurements make this meter more accurate and reliable when measuring distorted waveforms, and its built in IR thermometer has a 4:1 distance to target ratio, visually aided by the built in laser pointer. This meter has a CAT III 600 V safety rating and is complete with a year warranty, test leads, and a 9 V battery.
Spécifications
| Caractéristiques générales | |
|---|---|
| Continuité | Yes |
| Courant CA | 10A |
| Courant CC | 10A |
| Précision de base de la température (IR) | -5 to 446 °F (-20 to 230 °C) |
| Précision de base de la tension DC | ±0.5% |
| Résistance | 20MΩ |
| Résolution max. de la résistance | 0.1Ω |
| Résolution max. de la tension CA | 0.1mV |
| Résolution max. de la tension DC | 0.1mV |
| Résolution max. du courant CA | 0.1µA |
| Résolution max. du courant DC | 0.1µA |
| Température (RTD) | 0.1°F/°C |
| Tension CA | 600V |
| Tension CC | 600V |
| Test de diodes | Yes |
| Valeurs efficaces (TRMS) | Yes |
| Détails supplémentaires | |
|---|---|
| Alimentation | 1 × 9V battery |
| Catégorie de sécurité | CATIII - 600V |
| Certifications | CE, ETL |
| Dimensions | 5.8 × 2.9 × 1.6" (147 × 76 × 42mm) |
| Garantie | 2 years |
| Poids | 9.17oz (260g) |
Resources & Support
User Manual
Manuel d’utilisation de la Extech EX210 EX210T
User Manual
Extech EX210 EX210T User Manual
Certification
Extech EX210T Declaration of Conformity
Datasheet
Extech EX205T EX210T Datasheet
