Extech EX420
11 Function Professional MultiMeter

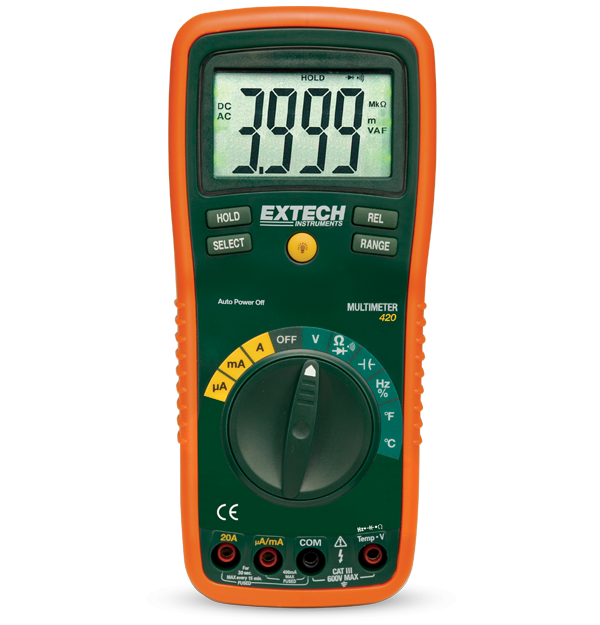

The Extech EX420 is a compact, 11 Function Professional Multimeter. The EX420 measures AC/DC voltage and current, resistance, diode, continuity, and frequency, all with ± 0.3 percent basic accuracy. It can also capture Type K temperature readings. These numerous functions enable professionals to carry one meter into the field instead of several. Featuring a large, backlit LCD screen (4,000 count) with easy to read digits, the EX420 provides high resolution over wide ranges, low current measuring down to 0.1 µA, and input fuse protection with misconnection warnings. Complete with CAT III test leads, multi position tilt stand, velcro hanging strap, holster with built-in test lead storage, Type K bead wire temperature probe, 9 V battery, and user manual.
Spécifications
| Caractéristiques générales | |
|---|---|
| Capacitance | 0.01nF to 100ΩF |
| Continuité | Yes |
| Courant CA | 0.1µA to 20A |
| Courant CC | 0.1µA to 20A |
| Fréquence | 0.001Hz to 10MHz |
| Précision de base de la tension DC | ±0.3% |
| Rapport cyclique | 0.1% to 99.9% |
| Résistance | 0.1Ω to 40MΩ |
| Résolution max. de la température (Type K) | -4 to 1382°F (-20 to 750°C) |
| Tension CA | 0.1mV to 750V |
| Tension CC | 0.1mV to 1000V |
| Test de diodes | Yes |
| Valeurs efficaces (TRMS) | Yes |
| Détails supplémentaires | |
|---|---|
| Alimentation | 1 × 9V battery |
| Catégorie de sécurité | CATIII - 600V, CATIV - 1000V |
| Certifications | UL |
| Dimensions | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| Garantie | 2 years |
| Poids | 0.75lbs (342g) |
Resources & Support
User Manual
Manuel d’utilisation de la Extech EX420
User Manual
Extech EX420 User Manual
Datasheet
Extech EX4xx Datasheet
