Discontinued

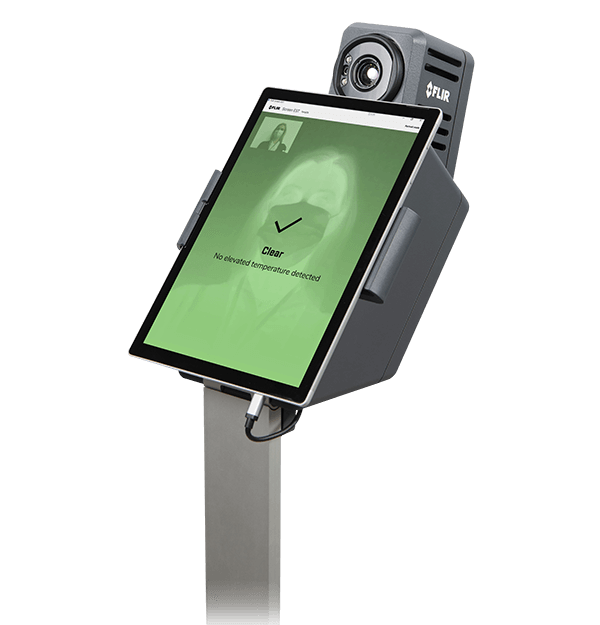

FLIR EST™ Kiosk
Skin Temperature Screening Solution
Quickly screen passengers, customers, or employees for signs of elevated skin temperature with this turnkey solution. The FLIR EST Kiosk combines the temperature measurement capabilities of a thermal imaging camera plus FLIR Screen-EST™ software with the convenience of a tablet display and floor stand. This kiosk sets up in minutes, offering fully automated, self-service screening that targets the inner canthus (corner of the eye) for accurate skin temperature measurement.
Faster, Easier Skin Temperature Screening
Ready to use right out of the box with pre-installed FLIR Screen-EST software, customizable instructions, and alert displays.
Automatically targets the inner canthus for fast, accurate screening.
Advanced factory calibration combined with relative measurement methodology ensures screening accuracy and avoids false-positives.
Spécifications
| Highlighted | |
|---|---|
| Type de connecteur des E/S numériques | M12 12-pin A-coded, Male (shared with external power) |
| Objet de la sortie numérique | As function of alarm, output to external device, for example when the screening alarm is triggered |
| Sorties numériques | 3x opto-isolated, 0–30 V DC, max. 300 mA (derated to 200 mA at 60C); Solid state opto relay; 1x dedicated as Fault output (NC) |
| Codage | Video stream – H.264, MPEG4, or MJPEG; Radiometric stream – Compressed JPEG-LS, FLIR radiometric |
| Interface Ethernet | Wired, Wi-Fi |
| Wifi | (optional) RP-SMA, Female; Dipole antenna 2.4/5 GHz (gain: maximum 2 dBi); Peer to peer (ad hoc) or infrastructure (network) |
| Ouverture f | 1.3 |
| Fréquence d'image | |
| Fréquence d'image | 30 Hz |
| Résolution | |
| Sensibilité thermique/NETD | <40 mK at 30°C (86°F) |
| Précision | ±0.3°C (±0.5°F) when used with FLIR Screen-EST™ software |
| Communication et stockage des données | |
|---|---|
| Codage | Video stream – H.264, MPEG4, or MJPEG; Radiometric stream – Compressed JPEG-LS, FLIR radiometric |
| Communication Ethernet | TCP/IP socket-based FLIR proprietary |
| Ethernet | Control, result, image, and power |
| Interface Ethernet | Wired, Wi-Fi |
| Norme Ethernet | IEEE 802.3 |
| Objet de la sortie numérique | As function of alarm, output to external device, for example when the screening alarm is triggered |
| Sorties numériques | 3x opto-isolated, 0–30 V DC, max. 300 mA (derated to 200 mA at 60C); Solid state opto relay; 1x dedicated as Fault output (NC) |
| Tension d'isolation des E/S numériques | 500 VRMS |
| Type de connecteur des E/S numériques | M12 12-pin A-coded, Male (shared with external power) |
| Type de connecteur Ethernet | M12 8-pin X-coded, Female; RP-SMA, Female |
| Type de connexion Ethernet | 1000 Mbps |
| Wifi | (optional) RP-SMA, Female; Dipole antenna 2.4/5 GHz (gain: maximum 2 dBi); Peer to peer (ad hoc) or infrastructure (network) |
| Données image et optiques | |
|---|---|
| Amélioration du contraste | FSX® / Histogram equalization (IR only) |
| Champ de vision (CdV) | 24° × 18° |
| Distance focale | 17 mm (0.67 in) |
| Distance minimale de mise au point | 0.15 m (0.49 ft) |
| Format de pixel | Video stream – YUV411; Radiometric stream – MONO 16 |
| Fréquence d'image | 30 Hz |
| Fréquence d'image | |
| Gamme spectrale | 7.5–14 µm |
| Identification de l'objectif | Automatic |
| Matrice à plan focal (FPA) | Uncooled microbolometer |
| Mise au point | One-shot contrast, motorized, manual |
| Ouverture f | 1.3 |
| Pas du détecteur | 17 µm |
| Résolution du flux vidéo | Video stream 0 – 640 × 480 pixels; Video stream 1 – 1280 × 960 pixels; Radiometric stream – 464 × 348 pixels |
| Résolution IR | 464 × 348 |
| Résolution spatiale (CdV instantané) | 0.90 mrad/pixel |
| Sensibilité thermique/NETD | <40 mK at 30°C (86°F) |
| Source d’images | Video stream 0 – visual / IR / MSX®; Video stream 1 – visual; Radiometric video stream – IR |
| Superposition | Video stream 0 – With/Without; Video stream 1 – No |
| Vidéo Flux | Bit rate set through camera web |
| Mesure et analyse | |
|---|---|
| Plage de températures de l’objet | 15°C to 45°C (59°F to 113°F) |
| Précision | ±0.3°C (±0.5°F) when used with FLIR Screen-EST™ software |
| Informations générales | |
|---|---|
| Contenu de l’emballage | Camera, Surface® Pro7 tablet, tablet stand, cables (Europe, UK, US), screening position floor sticker (T131181), FLIR Screen-EST™ license card, printed documentation |
| Dimensions [L x P x H] | 360 × 270 × 1300 mm (14 × 11 × 51.2 in) |
| Poids | 8.3 kg (18 lb.) |
| Spécifications environnementales et certifications | |
|---|---|
| Garantie | http://www.flir.com/warranty/ |
| Alimentation | |
|---|---|
| Alimentation externe | 24/48 V DC 8 W max |
| Consommation électrique | 7.5 W at 24 V DC typical; 7.8 W at 48 V DC typical; 8.1 W at 48 V PoE typical |
| Raccordement électrique | Camera: M12 12-pin A-coded, Male (shared with Digital I/O) |
| Tension externe | Allowed range 18–56 V DC |
| Interface utilisateur | |
|---|---|
| Interface Web | Yes |
