Discontinued

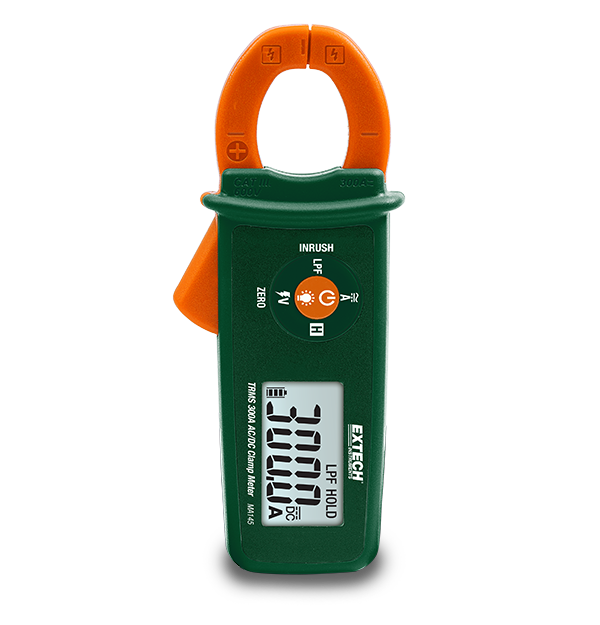

Extech MA145
True RMS 300A AC/DC Clamp Meter
The MA145 is a Compact AC/DC Clamp Meter with NCV detector. This clamp meter takes True RMS measurements for accurate readings of noisy, distorted, or non-sinusoidal waveforms. The MA145 can measure up to 300 A AC and DC. Complete with carrying case and two LR44 batteries. UL listed with a CAT III 600 V safety rating.
Spécifications
| Caractéristiques générales | |
|---|---|
| Courant CA | 60A, 300A |
| Courant CC | 60A, 300A |
| Dimensions de la mâchoire | 0.8" (22mm), conductors up to 300MCM |
| Détecteur de tension sans contact (NCV) | 80 to 600VAC |
| Précision de base du courant CA | ±1.5% |
| Précision de base du courant DC | ±1.5% |
| Résolution max. du courant CA | 0.01A |
| Résolution max. du courant DC | 0.01A |
| Valeurs efficaces (TRMS) | Yes |
| Détails supplémentaires | |
|---|---|
| Alimentation | 2 × LR44 (1.5V) batteries |
| Catégorie de sécurité | CATIII - 600V |
| Certifications | CE, UL |
| Dimensions | 5.8 × 2.4 × 1.2" (147 × 60 × 31mm) |
| Garantie | 2 years |
| Poids | 4.9oz (140g) |
Ressources et assistance
User Manual
Manuel d’utilisation de la Extech MA145
Certification
Extech MA145 Declaration of Conformity
Datasheet
Extech MA140 MA145 Datasheet
User Manual
Extech MA145 User Manual
