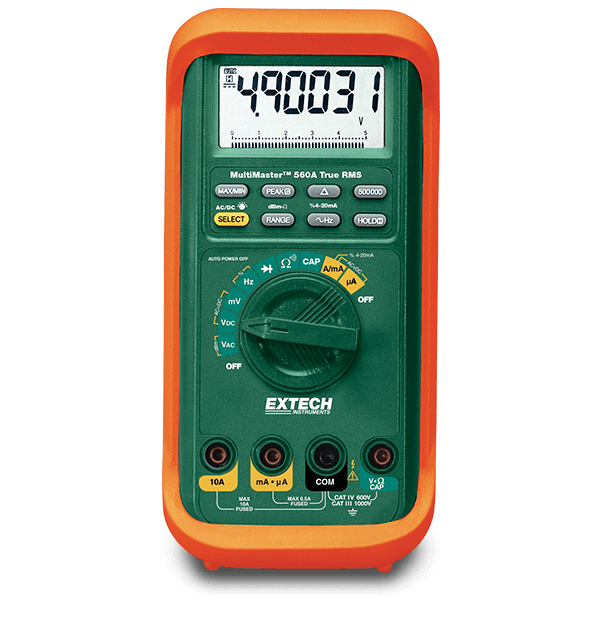

Extech MM560A
MultiMaster® High-Accuracy Multimeter
The Extech MM560A is a MultiMaster® High-Accuracy Multimeter that functions with 0.03% basic DCV accuracy and up to 20 kHz True RMS ACV bandwidth. It measures capacitance, frequency, resistance, continuity, duty cycle, and diode tests with 600 V input protection on all functions. It also has min/max recording with auto ranging, auto power off, relative and hold, and a peak function which captures transient pulses. Optional Windows compatible PC communication software and optically isolated cable. Complete with test leads, protective holster with stand, and 9 V battery.
Spécifications
| Caractéristiques générales | |
|---|---|
| Capacitance | 50nF to 9999µF |
| Courant CA | 500µA, 5000µA, 50mA, 500mA, 5A, 10A |
| Courant CC | 500µA, 5000µA, 50mA, 500mA, 5A, 10A |
| Fréquence | Electrical: 5Hz to 200kHz, Electronic: 5Hz to 2MHz |
| Précision de base de la fréquence | ±(0.002% + 4 digits) |
| Précision de base de la tension CA | ±(0.8% + 60 digits) |
| Précision de base de la tension DC | ±(0.03% + 2 digits) |
| Précision de base du courant CA | ±(1% + 40 digits) |
| Précision de base du courant DC | ±(0.1% + 20 digits) |
| Précision de base du rapport cyclique | ±(3 digits/kHz + 2 digits) |
| Rapport cyclique | 0.1% to 99.99% |
| Résistance | 500Ω, 5kΩ, 50kΩ, 500kΩ, 5MΩ, 50MΩ |
| Résolution max. de capacité | 0.01nF |
| Résolution max. de la fréquence | 0.0001Hz |
| Résolution max. de la résistance | 0.01Ω |
| Résolution max. de la tension CA | 0.01mV |
| Résolution max. de la tension DC | 0.01mV |
| Résolution max. du courant CA | 0.01µA |
| Résolution max. du courant DC | 0.01µA |
| Résolution max. du rapport cyclique | 0.01% |
| Tension CA | 500mV, 5V, 50V, 500V, 1000V |
| Tension CC | 500mV, 5V, 50V, 500V, 1000V |
| Valeurs efficaces (TRMS) | Yes |
| Détails supplémentaires | |
|---|---|
| Alimentation | 1 × 9V battery |
| Catégorie de sécurité | CATIV - 600V |
| Certifications | CE, UL |
| Dimensions | 7.32 × 3.42 × 1.39" (186 × 87 × 35.5mm) |
| Garantie | 3 years |
| Poids | 0.75lb (340g) |
