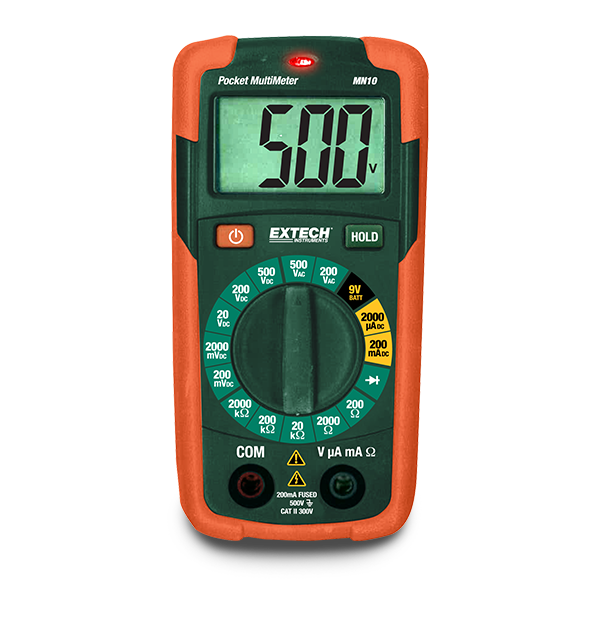

Extech MN10
Pocket MultiMeter + NCV
The Extech MN10 is an affordable, Pocket Multimeter that is fully loaded with functions such as a built in non-contact voltage (NCV) detector, AC/DC voltage, current, resistance, and a battery test. Its easy-to-use manual ranging design allows you to select the voltage, current, or resistance range you are testing. Perfect for students, DIYs, and entry level electricians.
Spécifications
| Caractéristiques générales | |
|---|---|
| Courant CC | 200mA |
| Détecteur de tension sans contact (NCV) | 100 to 600VAC |
| Précision de base de la tension CA | ±1.2% |
| Précision de base de la tension DC | ±0.5% |
| Précision de base du courant DC | ±1.2% |
| Résistance | 2000kΩ |
| Résolution max. de la résistance | 0.1Ω |
| Résolution max. de la tension CA | 0.1V |
| Résolution max. de la tension DC | 0.1mV |
| Résolution max. du courant DC | 1µA |
| Tension CA | 500V |
| Tension CC | 500V |
| Test de diodes | Yes |
| Test de la batterie | 9V |
| Détails supplémentaires | |
|---|---|
| Alimentation | 1 × A23 (12V) battery |
| Catégorie de sécurité | CATII - 300V |
| Certifications | CE |
| Dimensions | 4.3 × 2.1 × 1.3" (108 × 53 × 32mm) |
| Garantie | 1 year |
| Poids | 3.6oz (102g) |
Resources & Support
User Manual
Manuel d’utilisation de la Extech MN10
User Manual
Extech MN10 User Manual
Datasheet
Extech MN10 Datasheet
