Discontinued

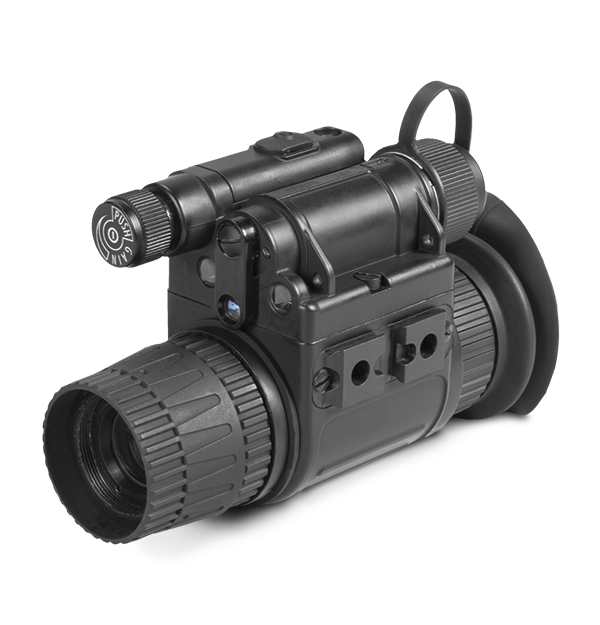

FLIR MNVD-51
51° Multi-Purpose Night Vision Monocular
With a wide 51-degree field of view, the FLIR MNVD-51 offers enhanced situational awareness without moving the optic. Head, helmet, and weapon mounting options allow hands-free operation while a built-in IR illuminator and flood lens improve vision in complete darkness. 40 hours of battery life is possible with a single AA or CR123A battery.
Wide-Angle Night Vision for Complete Awareness
Added hands-free functionality for simple head, helmet, and weapon mounting.
Multi-coated optics and composite housing provide ruggedness and 40-hour runtime with a single AA or CR123A battery allows constant vision.
Wide 51-degree field of view and onboard IR illuminator provides outstanding situational awareness in complete darkness.
Spécifications
| Highlighted | |
|---|---|
| Température de fonctionnement | -40°C to +50°C (-40°F to +122°F) |
| Capteurs et optique | |
|---|---|
| Champ de vision | 51° |
| Contrôle de la luminosité automatique | No |
| Diamètre de pupille de sortie [mm] | - |
| Dégagement oculaire | - |
| Grossissement | 1x standard (3x, 5x optional) |
| Génération IIT | FLAG - Filmless Auto-Gated IIT MG |
| Illuminateur infrarouge | Detachable Long Range IR and Built-in with pivotal flood lens |
| Plage de mise au point | 0.25 m to Infinity |
| Réglage dioptrique | -6 to +2 dpt |
| Résolution | - |
| Seuil lumière vive | Yes |
| Système d’objectif | F/1.26; 19mm |
| Type de photocathode | Filmless GaAs |
| Spécifications environnementales et validations | |
|---|---|
| Température de fonctionnement | -40°C to +50°C (-40°F to +122°F) |
| Température de stockage | -50°C to +50°C (-58°F to +122°F) |
| Alimentation | |
|---|---|
| Alimentation | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.2V (1) |
| Autonomie de la batterie | Up to 40 hours |
| Indicateur de batterie faible | Yes (In FOV) |
| Mise hors tension automatique | Yes |
| Stockage des fichiers et communications | |
|---|---|
| Télécommande | - |
| UI-UX | |
|---|---|
| Contrôle de gain manuel | Yes |
| Couleur du réticule | - |
| Indicateur IR | Yes (In FOV) |
| Présentation du système | |
|---|---|
| Dérivation_Réglage élévation | - |
| Garantie | 2 Years |
| Hauteur de l'axe de l'optique au-dessus du rail | - |
| Type de réticule | - |
| Caractéristiques physiques | |
|---|---|
| Dimensions (L x l x h) | 109 x 48 x 73 mm (4.1 x 1.9 x 2.8 in) |
| Montage sur trépied | - |
| Poids du produit | 0.31 kg (0.7 lbs) |
| Accessoires | |
|---|---|
| Accessoires en option | Swing Arm #172, Swing Arm #37, Dual Bridge, Goggle Kit #2, Helmet Mount #4, Dovetail to Weaver Transfer Piece #21, ARMSAIGHT by FLIR Scope Adapter Mount #6, QRM - Quick Release Picatinny Mount Adapter #26/#142, Extended Rail Adapter #85, Universal Camera Adapter #45, Camera Adapter #46, Demist Shield #34, Sacrificial Window #30, Shutter Eye-Guard #82, 3x Afocal Lens Kit (for MNVD-51), 5x Afocal Lens (for MNVD-51), 3x Afocal Lens #22 (Nyx-14, Nyx-14-Pro, N-14, Nyx-7 Pro), 5x Afocal Lens (Nyx-14, Nyx-14-Pro, N-14, Nyx-7 Pro), IR850XLR Afocal Doubler, IR850-XLR Detachable LED Extra Long Range Infrared Illuminator, Mil-Standard Hard Shipping/Storage Case #101 |
| Accessoires inclus | Packing Box, Soft Carrying Case, Lens Tissue, Quick Start Guide |
