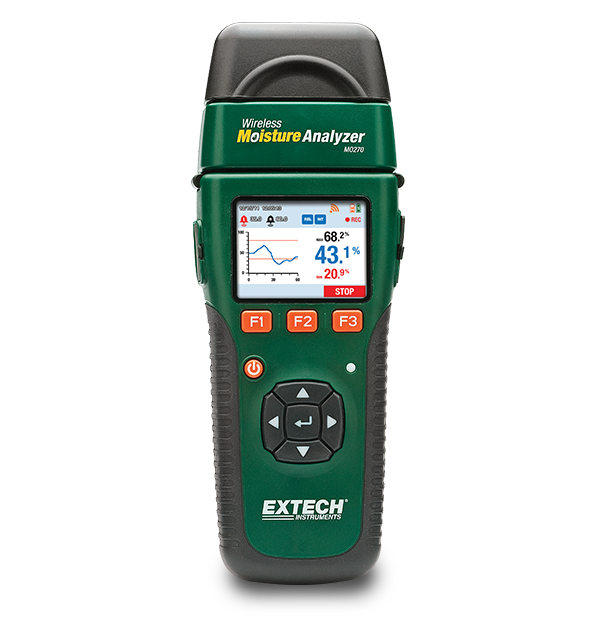

Extech MO270
Wireless Pin/Pinless Moisture Meter
The Extech MO270 is a Wireless Pin/Pinless Moisture Meter with detachable pin/pinless sensors that transmit data to the display, and can be viewed up to 20 m (65 ft) from the measurement point. Measurements are viewed on a full color graphical display. Readings from 8 remote sensors can be viewed on the display. The receiver can record data from 40 remote sensors simultaneously. Trending Mode displays a graphical representation of live readings for fast scanning of large areas. An included telescoping handle extends to 1.2 m (4 ft) for measurements in ceilings or in hard to reach areas (optional 3 m (9.8 ft) and 5 m (16.4 ft) handles available). Complete with 9 V battery, remote pin probe, replacement pins, protective cap, and pouch case.
Spécifications
| Caractéristiques générales | |
|---|---|
| Fréquence de transmission sans fil | 2.4GHz (pin/pinless sensor to display) |
| Plage de transmission sans fil | 65ft (20m) unobstructed view |
| Précision de base de la teneur en humidité WME (broche) | ±(5% of reading + 5 digits) |
| Résolution max. de la teneur en humidité relative (sans broche) | 0.1 |
| Résolution max. de la teneur en humidité WME (broche) | 0.10% |
| Teneur en humidité relative (sans broche) | 0 to 99.9 (relative) |
| Teneur en humidité WME (broche) | 6.0 to 99.9% |
| Type de capteur | Replaceable threaded contact pins (0.75"/22mm), non-penetrating electromagnetic sensor pad |
| Détails supplémentaires | |
|---|---|
| Alimentation | 3.7V rechargeable Li-Polymer battery |
| Certifications | CE |
| Dimensions | 8 × 2.3 × 1.7" (203 × 58.4 × 43.2mm) |
| Garantie | 2 years |
| Poids | 7.2oz (204g) |
Resources & Support
User Manual
Manuel d’utilisation de la Extech MO270
Certification
Extech MO270 Declaration of Conformity
User Manual
Extech MO270 User Manual
Datasheet
Extech MO270 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
