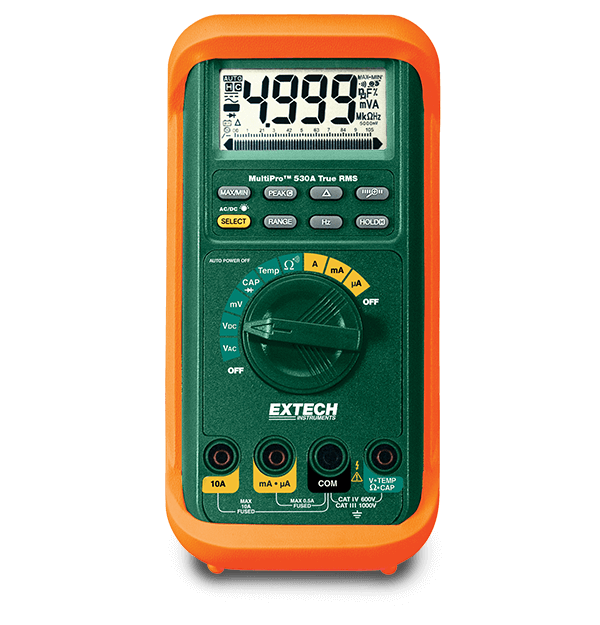

Extech MP530A
MultiPro® High-Performance MultiMeter
The Extech MP530A is a 5000 count, True RMS auto ranging Multimeter that measures AC/DC voltage and current, resistance, temperature, capacitance, and frequency with a 0.08% basic accuracy. Additional features include diode test, continuity check, auto power off, data hold, and low resistance auto lead zero, all on an easy to read, backlit display. Includes protective holster with built-in stand, test leads, Type K bead temperature probe, and 9 V battery.
Spécifications
| Caractéristiques générales | |
|---|---|
| Capacitance | 50nF ,500nF, 5µF, 50µF, 500µF, 9999µF |
| Courant CA | 500µA, 5000µA, 50mA, 500mA, 5A, 10A |
| Courant CC | 500µA, 5000µA, 50mA, 500mA, 5A, 10A |
| Fréquence | 5Hz to 125kHz |
| Précision de base de la fréquence | ±(0.01% of reading + 2 digits) |
| Précision de base de la température (Type N) | 1 °F/ °C |
| Précision de base de la tension CA | ±(0.8% of reading + 3 digits) |
| Précision de base de la tension DC | ±(0.08% of reading + 2 digits) |
| Précision de base du courant CA | ±(0.8% of reading + 4 digits) |
| Précision de base du courant DC | ±(0.2% of reading + 4 digits) |
| Résistance | 50Ω, 500Ω, 5kΩ, 50kΩ, 500kΩ, 5MΩ, 50MΩ |
| Résolution max. de capacité | 0.01nF |
| Résolution max. de la fréquence | 0.001Hz |
| Résolution max. de la résistance | 0.01Ω |
| Résolution max. de la température (Type K) | -58 to 1832 °F (-50 to 1000 °C ) |
| Résolution max. de la tension CA | 0.01mV |
| Résolution max. de la tension DC | 0.01mV |
| Résolution max. du courant CA | 0.1µA |
| Résolution max. du courant DC | 0.1µA |
| Température (Type N) | ±(0.3% of reading + 3 digits) |
| Tension CA | 50mV, 500mV, 5V, 50V, 500V, 1000V |
| Tension CC | 50mV, 500mV, 5V, 50V, 500V, 1000V |
| Valeurs efficaces (TRMS) | Yes |
| Détails supplémentaires | |
|---|---|
| Alimentation | 1 × 9V battery |
| Catégorie de sécurité | CATIV - 600V |
| Certifications | CE, UL |
| Dimensions | 7.32 × 3.42 × 1.39" (186 × 87 × 35.5mm) |
| Garantie | 2 years |
| Poids | 0.75lb (340g) |
