Discontinued

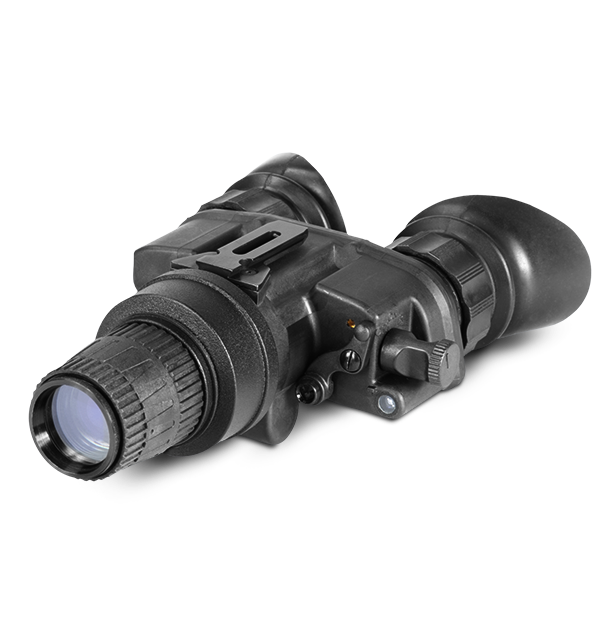

FLIR Nyx-7 Pro
Night Vision Goggles
The FLIR Nyx-7 Pro is an extremely rugged, compact bi-ocular night vision goggle system. High-grade optics and automatic brightness control provide clear nighttime images under the most trying conditions. Included flip-up head mount or optional universal helmet mount allow simple hands-free use while available 3x and 5x magnified lenses convert the Nyx-7 Pro to a long-range optic.
Exceptional Vision, Versatile Range Performance
Manual gain control knob and built-in IR illuminator amplify vision in tough weather and lighting conditions.
Available 3x and 5x magnified optical lenses convert head or helmet mounted goggles into a powerful long-range viewer.
Easy-to-operate controls, tough composite housing, and 60-hour battery life stand up to harsh conditions.
Spécifications
| Capteurs et optique | |
|---|---|
| Champ de vision | 40° |
| Contrôle de la luminosité automatique | Yes |
| Diamètre de pupille de sortie [mm] | 15 mm |
| Dégagement oculaire | 15 mm |
| Grossissement | 1x standard (3x, 5x optional) |
| Génération IIT | Gen 2+ HD (High Definition) |
| Illuminateur infrarouge | Yes (built-in with pivotal flood lens) |
| Plage de mise au point | 0.25 m to Infinity |
| Réglage dioptrique | -6 to +2 dpt |
| Résolution | 55-72 lp/mm |
| Seuil lumière vive | Yes |
| Système d’objectif | F/1.2; 27 mm |
| Type de photocathode | Multi-Alkali |
| Spécifications environnementales et validations | |
|---|---|
| Température de fonctionnement | -40°C to +50°C (-40°F to +122°F) |
| Température de stockage | -50°C to +70°C (-58°F to +158°F) |
| Alimentation | |
|---|---|
| Alimentation | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| Autonomie de la batterie | Up to 60 hours |
| Indicateur de batterie faible | Yes (In FOV) |
| Mise hors tension automatique | Yes |
| Stockage des fichiers et communications | |
|---|---|
| Télécommande | - |
| UI-UX | |
|---|---|
| Contrôle de gain manuel | No |
| Couleur du réticule | - |
| Indicateur IR | Yes (In FOV) |
| Présentation du système | |
|---|---|
| Dérivation_Réglage élévation | - |
| Garantie | 2 Years |
| Hauteur de l'axe de l'optique au-dessus du rail | - |
| Type de réticule | - |
| Caractéristiques physiques | |
|---|---|
| Dimensions (L x l x h) | 204 × 127 × 61 mm (8.0 × 5.0 × 2.4 in) |
| Montage sur trépied | - |
| Poids du produit | 0.49 kg (1.0 lbs) |
| Accessoires | |
|---|---|
| Accessoires en option | ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, 3x Afocal Lens #22, 5x Afocal Lens, MICH Helmet Mount Assembly USA #107 with Adapter/Swing Arm #59, Helmet Mount #183 (Shroud), Adapter #59, PASGT Helmet Mount Assembly USA #108 with Adapter/Swing Arm #59, XLR-IR850 Detachable X-Long Range Infrared Illuminator w/Dovetail to Weaver Transfer Piece #21, Helmet Mount #4, Mil-Standard Hard Shipping/Storage Case #101 |
| Accessoires inclus | Packing Box, Instruction Manual with Warranty Card, Soft carrying Case, Battery, ARFS4 - Advanced Range Finding Stadia for 4x Lens, Battery adapter CR123A 3V / AA 1.5V, Lens Tissue, Goggle Kit #2 |
