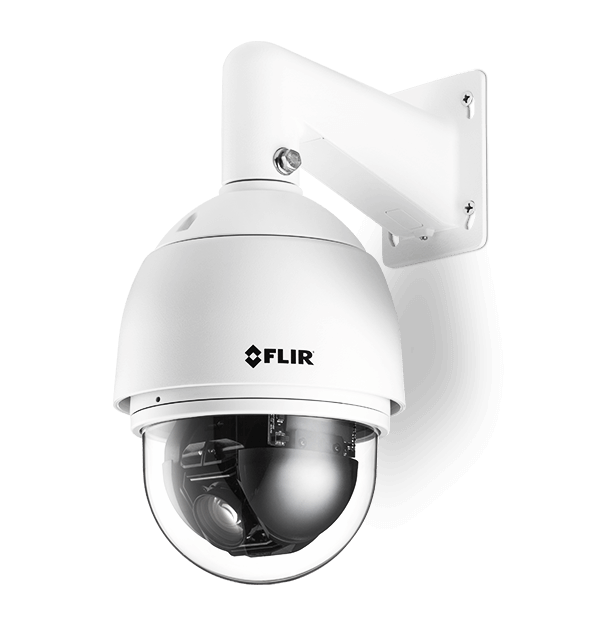

Quasar 1080p PTZ Camera
PTZ Security Camera
The Quasar HD 1080p PTZ security camera produces broadcast-video quality and guaranteed frame rates in high motion, complex and low light scenes, such as airports, urban streets, critical infrastructure, commercial offices and college campuses. The FLIR Quasar CP-4221-30x HD PTZ delivers one of the lowest bandwidths in the industry due to advanced H.264 motion processing.
Spécifications
| Conformité et certifications | |
|---|---|
| International | CE marked, EN55022-1998 class A, EN55024, RoHS |
| États-Unis | UL, FCC Part 15 (subpart B, class A) |
| Cybersécurité | |
|---|---|
| Sécurité | User account and password protection |
| Spécifications environnementales | |
|---|---|
| Humidité | 95% (non-condensing) |
| Température de fonctionnement | CP-4221-300: 0° to 40° C (32° to 104° F) |
| Température de stockage | -20° to 70° C (-4° to 158° F) |
| Informations générales | |
|---|---|
| Consommation électrique | Max 20W indoor (CP-4221-300), Max 60W outdoor (CP-3221-301) with heater operating |
| Contrôle CAG | Auto / Manual |
| Dimensions | CP-4221-300: 171.7 x 228.71 mm (6.76 x 9 in.) |
| Détection du sabotage | On / Of |
| Garantie | According to FLIR RMA Policy and Process Notice document |
| Indice de protection de la bulle | IK10 vandal resistant polycarbonate |
| Indices de protection du boîtier | Tamper resistant surface mount or IK10 rated vandal IP66 outdoor housing |
| Jour/nuit : filtre de coupure IR | Auto / Manual |
| Mise à niveau du micrologiciel | Flash memory for upgrade of camera firmware over the network (1GB Flash / 2GB RAM) |
| Mode de balayage | Progressive |
| Ouverture (f-stop) de la bulle | F0.0 - clear bubble |
| Poids de l'unité | CP-4221-300: 1.62 Kg (3.57 lbs.) |
| Raccordement électrique | Terminal block |
| Reprise sur perte d'alimentation | Yes |
| Réduction du bruit 3D | On / Of |
| Tension d’entrée | PoE++ 802.3at 60W (indoor/outdoor), PoE+ 802.3at 25W (indoor only), AC 24V ±10% |
| Zones confidentielles | On / Off - 16 zones |
| Mesure et analyse | |
|---|---|
| Résolution maximum | 1920x1080 (HD 1080p) |
| PTZ | |
|---|---|
| Angles de vue horizontaux | 65.3° (Wide) to 2.2° (Tele) |
| Course de déplacement en inclinaison | -10° to 190° |
| Course de déplacement panoramique | 360° continuous |
| Fonction de retour à la position de départ | Preset / Sequence / Auto Pan / Pattern |
| Orientation et inclinaison proportionnelles | On / Off (pan and tilt speed proportional to zoom ratio) |
| Panoramique automatique | 4.0 |
| Position | 8.0 |
| Précision prédéfinie | 0.225° |
| Préréglages | 256.0 |
| Retournement automatique | Digital / Mechanical / Off |
| Séquence | 8.0 |
| Vitesse d'orientation/d'inclinaison maximum | 400° / sec |
| Vitesse manuelle | 0.13° to 90° / sec |
| Vitesse prédéfinie | 5° to 400° / sec |
| Intégration des systèmes | |
|---|---|
| Alarme | Input: 4 dry alarm contact Output: 2 relay contact, 30 VDC at 2A or 125 VAC at 0.5A max |
| Audio bidirectionnel | Full duplex, line / mic in and line out, G.711, G.726 |
| Bande passante audio | Configurable between 16 kbps & 64 Kbps (depending on compression method) |
| Configuration | Remote: via web access or supported video management software |
| Connexions audio | Terminal block |
| Ethernet | 10 / 100 Base-T auto sensing, half / full duplex (RJ45) |
| Navigateur web pris en charge | Internet Explorer 6.0+ |
| Protocole réseau | IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, SNTP, IEEE 802.1X, QoS,ONVIF Profile S |
| Réaction d’alarme | Preset / Sequence / Auto Pan / Pattern |
| Caméra thermique | |
|---|---|
| Capteur d’images | 1/2.8" CMOS |
| Distance focale | 4.3 to 129 mm |
| DSS | 1.0 to 1 / 10,000 with up to 32x sensitivity boost in color or night mode |
| Stabilisation de l’image | On / Of |
| Zoom numérique | 1 to 12 variable |
| Zoom optique | 30x |
| Éclairage minimal | 0.3 (color) / 0.04 (BW), measured with DSS Off at 30 IRE |
| Caméra à lumière visible | |
|---|---|
| Capteur d’images | 1/2.8" CMOS |
| Commande du diaphragme | Auto / Manual |
| Compensation du rétro-éclairage | On / Of |
| Distance focale | 4.3 to 129 mm |
| DSS | 1.0 to 1 / 10,000 with up to 32x sensitivity boost in color or night mode |
| Grande plage de mesure dynamique (plusieurs obturateurs) | On / Of |
| Mode de mise au point | Auto / Manual |
| Rapport signal/bruit | ±50 dB |
| Rotation d’image | Normal / Flip / Mirror |
| Résolution du capteur | 1920 x 1080 |
| Stabilisation de l’image | On / Of |
| Zoom numérique | 1 to 12 variable |
| Zoom optique | 30x |
| Éclairage minimal | 0.3 (color) / 0.04 (BW), measured with DSS Off at 30 IRE |
| Équilibre des blancs | Auto / Indoor / Outdoor / ATW / Manual |
| Vidéo et enregistrement | |
|---|---|
| Bande passante vidéo | Configurable between 64 Kbps and 8 Mbps |
| Compression vidéo | Dual Streaming H.264 / H.264 or H.264 / MJPEG |
| Contrôle du débit | CBR / VBR |
| Détection de mouvement sur les vidéos | On / Off - up to 10 independent zones |
| Enregistrement sur carte SD | SDXC up to 64 GByte |
| Performances maximales | 30fps @ HD 1080p + 30fps @ D1 or 15+15 @ HD 1080p |
| Plage de résolution | Scalable from CIF to HD 1080p |
