Discontinued

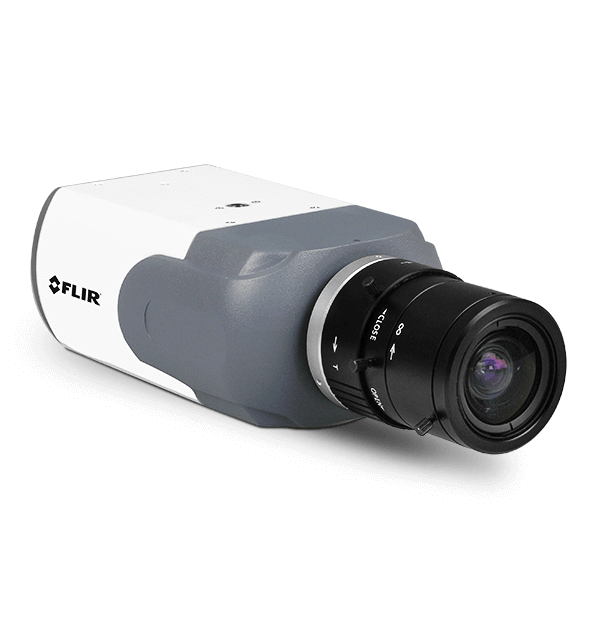

Quasar 5MP Fixed
Highest Quality. Lowest Bandwidth. Predictable Storage.
The Quasar CF-4251 series of HD 1440p / 5MP cameras is a best in class broadcast video quality camera that guarantees frame rates in high motion, complex and low light scenes, at the lowest bit rates.
Spécifications
| Conformité et certifications | |
|---|---|
| International | CE marked, EN55022-1998 class A, EN55024 |
| États-Unis | UL, FCC Part 15 (subpart B, class A) |
| Cybersécurité | |
|---|---|
| Sécurité | User account and password protection |
| Spécifications environnementales | |
|---|---|
| Humidité | 95% (non-condensing) |
| Température de fonctionnement | Indoor: 0° to 50° C (32° to 122° F) Outdoor installation requires optional environmental housing (-30° to 50° C when used with CF-X200-01) |
| Température de stockage | -20° to 70° C (-4° to 158° F) |
| Informations générales | |
|---|---|
| AES | 1.0 to 1 / 10,000 (auto) |
| Boîtier | Metal case with 1/4 in. UNC-20 screw mounts on top and bottom |
| Consommation électrique | 6W |
| Dimensions | 115 L x 82 W x 52 H mm (without lens) |
| Détection du sabotage | On / Of |
| Garantie | According to DVTEL RMA Policy and Process Notice document |
| Mise à niveau du micrologiciel | Flash memory for upgrade of camera firmware over the network (1GB Flash / 2GB RAM |
| Mode de balayage | Progressive |
| Mode jour/nuit | Smart IR / auto / on/of |
| Poids de l'unité | 398 g (14 oz.) |
| Raccordement électrique | 12 VDC / 24 VAC terminal block |
| Réduction du bruit 3D | On / Off - 6 levels |
| Tension d’entrée | 12 VDC / 24 VAC ±10% or 802.3af PoE |
| Zones confidentielles | On / Off - 5 zones |
| Mesure et analyse | |
|---|---|
| Contrôle de gain automatique | Auto |
| Intégration des systèmes | |
|---|---|
| Audio bidirectionnel | Full duplex, line / mic in and line out, G.711, G.726 |
| Configuration | Remote: via web access or supported video management software |
| Connexions audio | 3.5 mm audio jacks |
| Entrée d'alarme | 1 dry alarm contact |
| Ethernet | 10 / 100 Base-T auto sensing, half / full duplex (RJ45) |
| Navigateur web pris en charge | Internet Explorer 8+ |
| Protocole réseau | IPv4/v6, TCP/IP, UDP Unicast / Multicast, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, SNTP, QoS, ONVIF Profile S, IEEE 802.1X |
| Sortie d’alarme | 1 relay contact, 60V AC / DC at 130 mA maximum |
| Caméra à lumière visible | |
|---|---|
| Capteur d’images | 1/2.5" CMOS |
| Commande du diaphragme | DC auto |
| Compression du rétro-éclairage | On / Of |
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| Filtre de coupure IR mécanique | Yes |
| Plage dynamique étendue | On / Off - 3 levels |
| Rapport signal/bruit | ≥50 dB |
| Résolution du capteur | 2592 x 1944 |
| Sensibilité | Color: 0.1 Lux @ f1.4 / Night Mode: 0.03 Lux @ F1.4 at 30 IRE |
| Équilibre des blancs | Auto / indoor / outdoor |
| Vidéo et enregistrement | |
|---|---|
| Bande passante vidéo | Configurable between 64Kbps and 8Mbps |
| Compression vidéo | Fully compliant multi-stream H.264 main profile + MJPEG |
| Contrôle du débit | CBR/VBR |
| Détection de mouvement sur les vidéos | On / Off - 10 zones |
| Enregistrement sur carte SD | SDHC up to 64GB |
| Performances maximales | H.264 15/12 FPS @ HD 1440p (NTSC/PAL) or H.264 12/12 FPS @ 5MP (NTSC/PAL) |
| Plage de résolution | Scalable from CIF to HD 1440p / 5MP |
