Discontinued

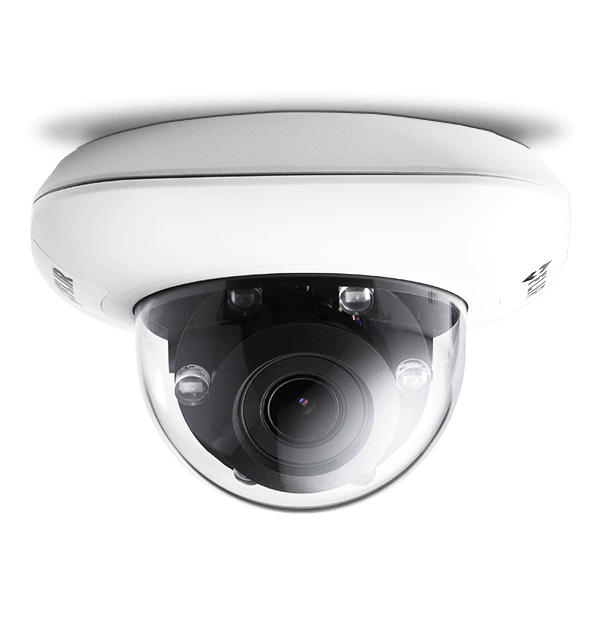

Quasar Quad HD Mini-Dome
The Ariel CM-3102 camera series with Full HD 1080p video guarantees frame rates in high motion, complex and low light scenes and lowers overall utility costs and carbon footprint
Spécifications
| Informations générales | |
|---|---|
| AES | 1.0 to 1 / 10,000 (auto) |
| Détection du sabotage | On / Off / schedule |
| Mode de balayage | Progressive |
| Mode jour/nuit | Smart / Auto / On / Off |
| Zones confidentielles | On / Off - 5 zones |
| Mesure et analyse | |
|---|---|
| Contrôle de gain automatique | Auto |
| Intégration des systèmes | |
|---|---|
| Angle d'éclairage | Full 60° |
| Audio bidirectionnel | Full duplex, line in and line out, G.711, G.726 |
| Connexions audio | Terminal block |
| Distance IR | up to 40 m (131 ft.) |
| Nombre de DEL IR | 6 high power / high efficiency SMD type |
| Caméra thermique | |
|---|---|
| Capteur d’images | 1/3" BSI CMOS |
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| Sensibilité | 0.3 (color)/0.04 (BW), 0 Lux with IR illuminator ON, measured with DSS OFF at 30 IRE |
| Caméra à lumière visible | |
|---|---|
| Capteur d’images | 1/3" BSI CMOS |
| Commande du diaphragme | P-iris |
| Compression du rétro-éclairage | On / Off |
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| Filtre de coupure IR mécanique | Yes |
| Grande plage de mesure dynamique (plusieurs obturateurs) | 2-shutter (93dB) / On / Off |
| Rapport signal/bruit | ±50 dB |
| Réduction du bruit | 2D / 3D / Color |
| Résolution du capteur | 2688 x 1520 |
| Sensibilité | 0.3 (color)/0.04 (BW), 0 Lux with IR illuminator ON, measured with DSS OFF at 30 IRE |
| Type d’objectif | CM-6204-11-I: Varifocal 3-8mm, 96°-38° HFOV, F1.4 CM-6204-21-I: Varifocal 7-22mm, 42°-14° HFOV, F1.4 Motorized with auto-focus, Auto-Iris/P-Iris, D/N |
| Équilibre des blancs | Auto / indoor / outdoor / ATW / manual |
| Vidéo et enregistrement | |
|---|---|
| Bande passante vidéo | Configurable between 64Kbps and 20Mbps |
| Compression vidéo | Fully compliant multi-stream H.264 main/high/SVC/ baseline profile + MJPEG (FHD) |
| Contrôle du débit | CBR/VBR |
| Détection de mouvement sur les vidéos | On / Off / schedule |
| Enregistrement sur carte SD1 | Micro SDXC up to 128GB (Class 10) |
| Performances maximales | H.264 30/25 FPS @ 1440p + D1 (NTSC/PAL) or H.264 15/12 FPS @ 1440p + 720p + D1 (NTSC/PAL) |
| Plage de résolution | Scalable from CIF to QHD 1440p |
