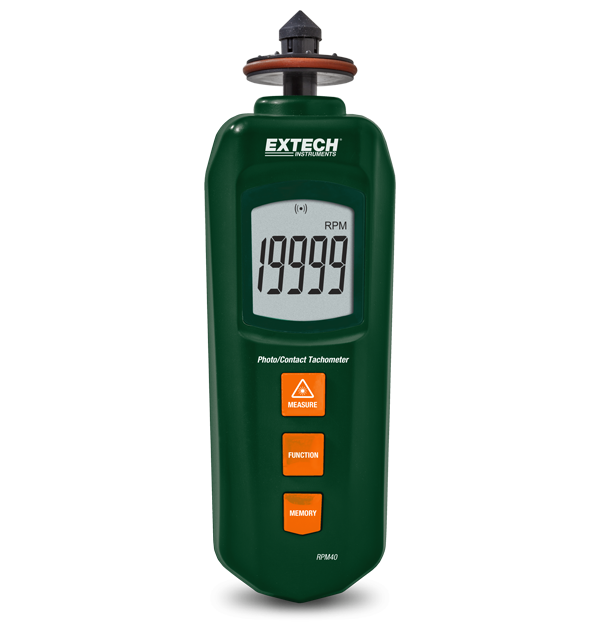

Extech RPM40
Combination Contact/Laser Photo Tachometer
The Extech RPM40 is a pocket Contact/Laser Photo Tachometer that provides wide RPM (photo/contact) and linear surface speed measurements. The characters on display reverse direction depending on which measurement mode is currently in use. The narrow beam laser photo tachometer is for accurate, non contact RPM measurements up to 1.5 m (4.9 ft) from the target for improved safety and accessibility. Complete with cone tip and wheel for RPM or linear surface speed, four 1.5 V AAA batteries, and reflective tape.
Spécifications
| Caractéristiques générales | |
|---|---|
| Précision de base de la vitesse de rotation (contact) | ±(0.1% of reading +1 digit) |
| Précision de base de la vitesse de rotation (sonde) | ±(0.1% of reading +1 digit) |
| Précision de base de la vitesse de surface (contact) | ±(0.1% of reading +1 digit) |
| Résolution max. de la vitesse de rotation (contact) | 0.1rpm (< 1000 rpm); 1rpm (> 1000 rpm) |
| Résolution max. de la vitesse de rotation (sonde) | 0.1rpm (< 1000 rpm); 1rpm (> 1000 rpm) |
| Temps d’échantillonnage (contact) | 1sec (> 6 rpm) |
| Temps d’échantillonnage (photo) | 1 sec (> 60 rpm) |
| Vitesse de rotation (contact) | 0.5 to 19,999 rpm |
| Vitesse de rotation (sonde) | 5 to 99,999 rpm |
| Vitesse de surface (contact) | 2.0 to 78,740 in/min, 0.2 to 6560 ft/min, 0.05 to 1999.9 m/min |
| Détails supplémentaires | |
|---|---|
| Alimentation | 1 × AA (1.5V) batteries |
| Certifications | CE |
| Dimensions | 6.2 × 2.0 × 1.3" (160 × 50 × 33 mm) |
| Garantie | 2 years |
| Poids | 6.4oz (182g) |
Ressources et assistance
User Manual
Manuel d’utilisation de la Extech RPM40
Datasheet
Extech RPM40 Datasheet
User Manual
Extech RPM40 User Manual
Certification
Extech RPM40 Declaration of Conformity
