Discontinued

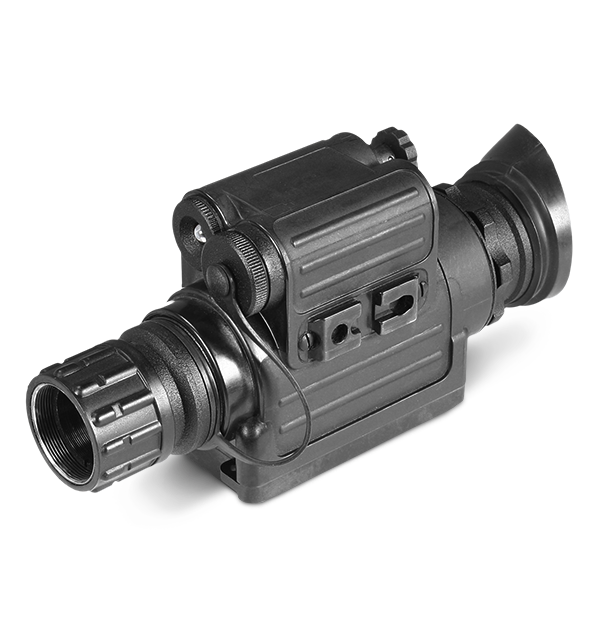

FLIR Spark
Night Vision Monocular
The FLIR Spark is a compact night vision monocular for enhancing awareness in minimal light conditions. A rugged composite housing and built-in IR illuminator allow Spark to capture sharp imagery in challenging weather conditions or complete darkness. Optional 3x and 5x optical zoom lenses and detachable high-power IR illuminator are available for long-range wildlife viewing.
Classic, Compact Night Vision
Rugged CORE intensifier tube and onboard IR illuminator allow continuous surveillance in tough conditions.
Head, helmet, and weapon mounting options allow simple handsfree operation.
Detachable optical magnification lenses and XLR IR illuminator boost long-range performance.
Spécifications
| Highlighted | |
|---|---|
| Température de fonctionnement | -40°C to +50°C (-40°F to +122°F) |
| Capteurs et optique | |
|---|---|
| Champ de vision | 35° |
| Contrôle de la luminosité automatique | No |
| Diamètre de pupille de sortie [mm] | 8 mm |
| Dégagement oculaire | 20 mm |
| Grossissement | 1x standard (3x, 5x optional) |
| Génération IIT | CORE |
| Illuminateur infrarouge | Yes |
| Plage de mise au point | 0.25 m to Infinity |
| Réglage dioptrique | ±5 diopter |
| Résolution | 60-70 lp/mm |
| Seuil lumière vive | No |
| Système d’objectif | F/1.7; 35 mm |
| Type de photocathode | N/A |
| Spécifications environnementales et validations | |
|---|---|
| Température de fonctionnement | -40°C to +50°C (-40°F to +122°F) |
| Température de stockage | -50°C to +70°C (-58°F to +158°F) |
| Alimentation | |
|---|---|
| Alimentation | CR123 Lithium 3V (1) or CR123 type rechargeable batteries with voltage 3.2V (1) |
| Autonomie de la batterie | Up to 40 hours |
| Mise hors tension automatique | No |
| Stockage des fichiers et communications | |
|---|---|
| Télécommande | - |
| UI-UX | |
|---|---|
| Contrôle de gain manuel | No |
| Couleur du réticule | - |
| Indicateur IR | Yes (Led) |
| Présentation du système | |
|---|---|
| Dérivation_Réglage élévation | - |
| Garantie | 2 Years |
| Hauteur de l'axe de l'optique au-dessus du rail | - |
| Type de réticule | - |
| Caractéristiques physiques | |
|---|---|
| Dimensions (L x l x h) | 181× 49 × 82 mm (7.1 × 1.9 × 3.2 in) |
| Montage sur trépied | - |
| Poids du produit | 0.37 kg (0.8 lbs) |
| Accessoires | |
|---|---|
| Accessoires en option | PASGT Helmet Mount Assembly USA #108 with Adapter/Swing Arm #37, Swing Arm #172, MICH Helmet Mount Assembly USA #107 with Adapter/Swing Arm #37, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, XLR-IR850 Detachable X-Long Range Infrared Illuminator w/Dovetail to Weaver Transfer Piece #21, AIM PRO - Advanced Integrated Mount Pro, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, Helmet Mount #170 (Shroud), 5x Afocal Lens with Adapter #23, 3x Afocal Lens Kit: Lens #22 with Adapter #23, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, AIM Pro-L - Advanced Integrated Mount Pro, Goggle Kit #1, Mil-Standard Hard Shipping/Storage Case #101, Swing Arm #37, Helmet Mount #3, Universal Camera Adapter #45, QRM - Quick Release Picatinny Mount Adapter #26/#142, Extended Rail Adapter #85 |
| Accessoires inclus | Soft carrying Case, One Lithium Battery CR123A, Packing Box, Lens Tissue, Instruction Manual with Warranty Card |
