Discontinued

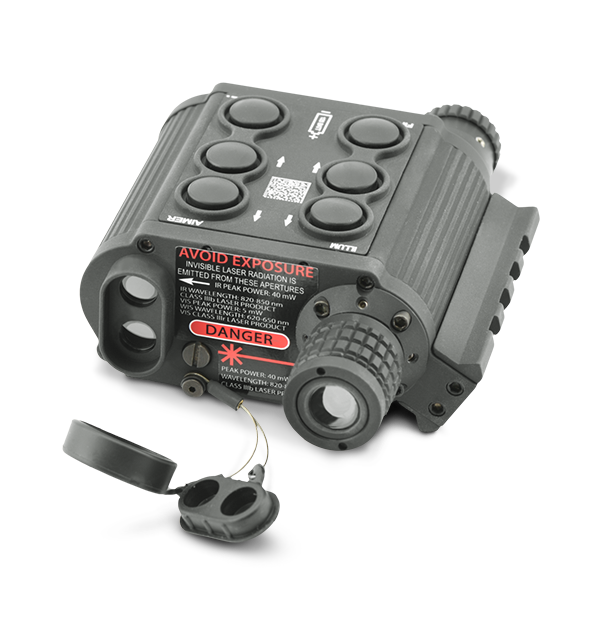

FLIR T-MAIM
Multispectral Aiming/Illumination Module
The FLIR T-MAIM is a multi-laser aiming system equipped with collimated visible and near-IR lasers. Built-in IR illuminator and near-IR aiming laser provide covert tactical precision when paired with night vision devices while manually-controlled pulse mode prevents confusion among multiple users. 256 discrete power intervals allow user-customization and included safety-mode tactical remote ensures appropriate laser intensity during training exercises.
Undeniably Powerful, Completely Customizable
Co-boresighted rapid target acquisition lasers ensure consistency when switching between visible-light and night vision.
Safety remote temporarily inhibits laser power during training while pulse mode allows multiple users to reliably identify their sight in crowded environments.
Built-In IR illuminator, flashlight mount, and rugged waterproof housing work with other equipment to provide the best tactical awareness in grueling conditions.
Spécifications
| Capteurs et optique | |
|---|---|
| Distance de fonctionnement Illum IR | >100 (low) / 2000 m (high) |
| Distance de fonctionnement Point IR | >200 m (low) / 2000 m (high) |
| Distance de fonctionnement point rouge | >25 m (in direct sunlight) |
| Divergence Illum IR | 1-108 mRad |
| Divergence Point IR | <0.5 mRad |
| Divergence point rouge | 0.8 mRad |
| Illum IR longueur d'onde | 820-850 nm |
| Point IR longueur d'onde | 820-850 nm |
| Point rouge longueur d'onde | 620-650 nm |
| Spécifications environnementales et validations | |
|---|---|
| Immersion | Waterproof 20 meters for one hour |
| Alimentation | |
|---|---|
| Alimentation | One CR123A 3.0V DC Lithium Battery |
| Autonomie de la batterie | >10 hours in near-IR Aim Mode |
| Dimensions Puissance de sortie Illum IR | 500 µW (low) / 25 mW (high) 40 mW (Peak) |
| Dimensions Puissance de sortie Point IR | 100 µW (low) / 25 mW (high) 40mW (Peak) |
| Dimensions Puissance de sortie Point rouge | 4 mW (visible) / 5 mW (Peak) |
| Présentation du système | |
|---|---|
| Garantie | 2 Years |
| Type de fixation de l'arme | MIL-STD-1913 |
| Caractéristiques physiques | |
|---|---|
| Dimensions (L x l x h) | 105 × 81 × 43 mm (4.2 × 3.2 × 1.7 in) |
| Poids du produit | 0.29 kg (0.63 lbs) |
| Accessoires | |
|---|---|
| Accessoires en option | - |
| Accessoires inclus | Packing Box, Soft Carrying Case, One Lithium Battery CR123ALens Tissue, Instruction Manual with Warranty Card, Remote Switch Assembly, SAFETY INTERLOCK (Class 1) - BLUE, Remote Switch Assembly, Tactical Full Access - BLACK |
