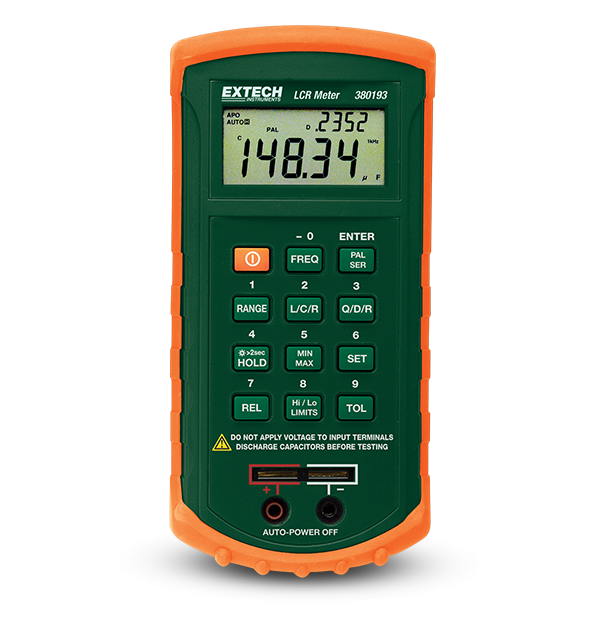

Extech 380193
Passive Component LCR Meter
The Extech 380193 is a Passive Component LCR Meter which measures inductance, capacitance, and resistance, with secondary parameters of quality, disperation, or resistance. Set Hi/Lo limits using absolute values or percentage limits. Allows for automatic blown fuse indication.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base fattore di dissipazione (DF) | ±(0.7% of reading) |
| Accuratezza di base fattore di qualità (Q) | ±(1.2% of reading) |
| Accuratezza di base induttanza | ±(0.7% of reading) |
| Capacità | 2000.0pF, 20.000nF, 200.00nF, 2000.0nF, 20.000µF, 200.00µF, 2000.0µF |
| Fattore di dissipazione (DF) | 0 to 0.9999 |
| Fattore di qualità (Q) | 0 to 9999 |
| Frequenza test | 120Hz and 1kHz |
| Induttanza | 2000.0µH, 20.000mH, 200.00mH, 2000.0mH, 20.000H, 200.00H, 2000.0H, 10000H |
| Resistenza | 20.000Ω, 200.00Ω, 2.0000kΩ, 20.000kΩ, 200.00kΩ, 2.0000MΩ, 20.000MΩ |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 1 × 9V battery |
| Certificazioni | CE |
| Dimensioni | 7.56 × 3.58 × 2.1" (192 × 91 × 53mm) |
| Garanzia | 2 years |
| Peso | 12.87oz (365g) |
