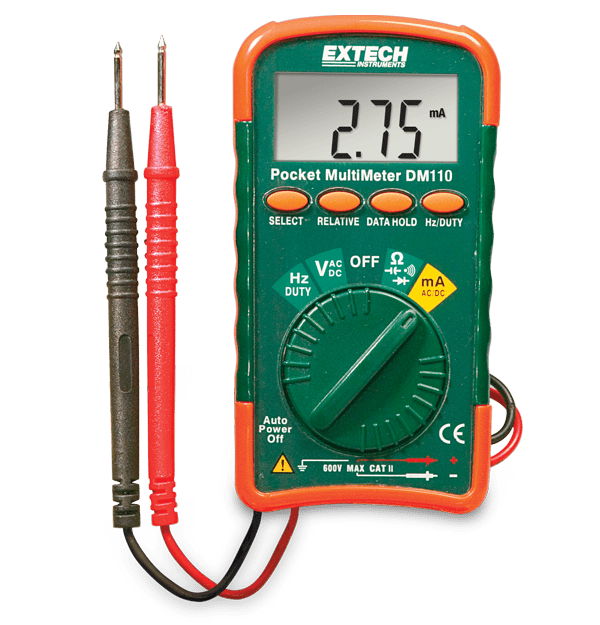

Extech DM110
Mini Pocket MultiMeter
Extech's DM110 offers full function versatility and the most pocket-friendly multimeter size available. The compact, autoranging DM110 digital Mini Multimeter is equipped with capabilities that are perfect for a electrical hobbyist, electronics tinkerer, or DIYer. Use this meter to perform more in depth testing to troubleshoot anything connected to an outlet, such as any electronic devices found around the home and garage. The DM110 is great for automotive and marine electrical applications, A/V projects, Arduino projects, and secondary home wiring systems like security alarms and thermostat circuits. It includes a protective rubber holster with storage clips to retain the integrated test leads, soft carrying case, CR2032 button battery, user manual, and one year limited warranty.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base ciclo di lavoro | ±1.2% |
| Accuratezza di base corrente CA | ±2.5% |
| Accuratezza di base corrente CC | ±2.0% |
| Accuratezza di base frequenza | ±2% |
| Accuratezza di base tensione CA | ±2.3% |
| Accuratezza di base tensione CC | ±1.3% |
| Capacità | 100µF |
| Ciclo di lavoro | 0.1% to 99.9% |
| Continuità | Yes |
| Corrente AC | 400mA |
| Corrente DC | 400mA |
| Frequenza | 5Hz to 10MHz |
| Resistenza | 400 to 40MΩ |
| Risoluzione max capacità | 0.001nF |
| Risoluzione max ciclo di lavoro | 0.10% |
| Risoluzione max corrente CA | 0.01mA |
| Risoluzione max corrente CC | 0.01mA |
| Risoluzione max frequenza | 0.001Hz |
| Risoluzione max resistenza | 0.1Ω |
| Risoluzione max tensione CA | 1mV |
| Risoluzione max tensione CC | 1mV |
| Tensione AC | 500V |
| Tensione DC | 500V |
| Test diodi | Yes |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 1 × CR2032 (3V) battery |
| Categoria di sicurezza | CATII - 600V |
| Certificazioni | CE, UL |
| Dimensioni | 4.25 × 2.2 × 0.5”(108 × 56 × 11.5mm) |
| Garanzia | 2 years |
| Peso | 1.7oz (50g) |
