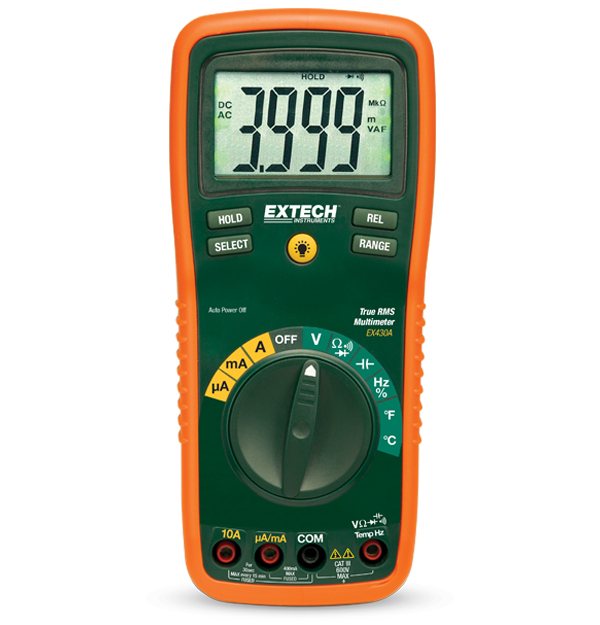

The Extech EX430A True RMS autoranging Multimeter (with K Type, capacitance, frequency, and duty cycle) is a professional-grade multimeter capable of performing a wide range of measurements. Functions include AC and DC voltage to 600 V, AC and DC current to 10 A, resistance to 40 MOhm, continuity, and diode test. It also includes a Type K thermometer function for contact or air temperature measurements from -20°C to 750°C (-4°F to 1832°F). Advanced functions include capacitance, frequency, and duty cycle. This meter comes complete with test leads, Type K temperature probe, 9 V battery, protective holster, adjustable tilt stand, and a velcro hanging strap.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base corrente CA | ±0.5% |
| Accuratezza di base corrente CC | ±0.5% |
| Accuratezza di base tensione CA | ±0.3% |
| Accuratezza di base tensione CC | ±0.5% |
| Continuità | Yes |
| Corrente AC | 0.1mA to 10A |
| Corrente DC | 0.1µA to 10A |
| Resistenza | 0.1Ω to 20MΩ |
| Risoluzione max temperatura (tipo K) | -4 to 1382°F (-20 to 750°C) |
| Tensione AC | 1mV to 600V |
| Tensione DC | 0.1mV to 600V |
| Test diodi | Yes |
| True RMS | Yes |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 1 × 9V battery |
| Categoria di sicurezza | CATIII - 600V |
| Certificazioni | CE |
| Dimensioni | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| Garanzia | 2 years |
| Peso | 0.75lbs (342g) |
Risorse e supporto
User Manual
Manuale d'uso Extech EX430A
Certification
Extech EX430A Declaration of Conformity
User Manual
Extech EX430A User Manual
Datasheet
Extech EX4xxA Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
