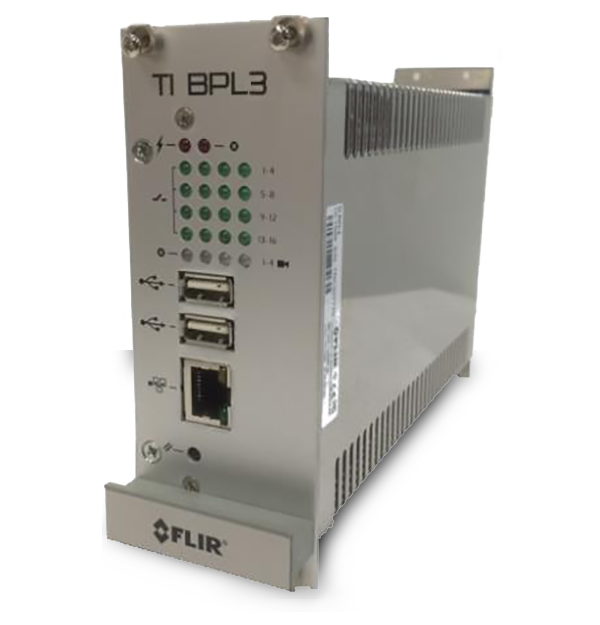

FLIR TI BPL3
3rd Generation Broadband Over Power Line Interface
Product Variations
This interface connects zone outputs from BPL3 sensors* and/or Power Line sensors to a controller, providing power and communications to BPL3 sensors and/or PL sensors. It also connects the PC to BPL3 sensors and/or PL sensors for system configuration and viewing
.*BPL3 Sensor(s): TrafiOne, ThermiCam AI, TrafiCam AI, TrafiSense AI, LaneCom T, LaneCom V
Specifiche
| Panoramica sistema | |
|---|---|
| N. massimo di termocamere | Standard 1 – 4 sensori BPL3 o PL Massimo 4 sensori BPL3 o PL |
| Output di errore | 4 contatti a secco accoppiati otticamente N/O tramite connettore terminale sul retro Imax = 50 m A, Umax = 48 V CC 1 LED di errore interfaccia sul davanti 4 LED di stato sensore BPL3 o PL |
| Elettriche | |
|---|---|
| Assorbimento | ≤3 W |
| Consumo di corrente | ≤ 130 mA a 24 V CC |
| Tensione di alimentazione | TI BPL3 EURO: 12–60 V CC o 12–42 V CA TI BPL3 EDGE B&SIU: 12-42 V CC o 12-30 V CA |
| Ambientali | |
|---|---|
| Range di temperature di esercizio | Specifiche NEMA II: Da -40 °C a +74 °C |
| Meccaniche | |
|---|---|
| Peso | TI BPL3 EURO: 570 g (1,26 lb) TI BPL3 EDGE B&SIU: 750 g (1,65 lb) |
Resources & Support
Datasheet
Scheda tecnica FLIR TI BPL3
Datasheet
Flir TI BPL3 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
