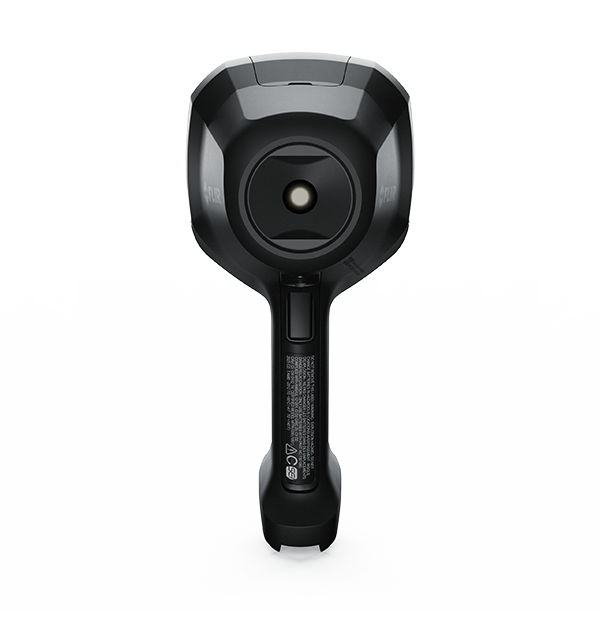

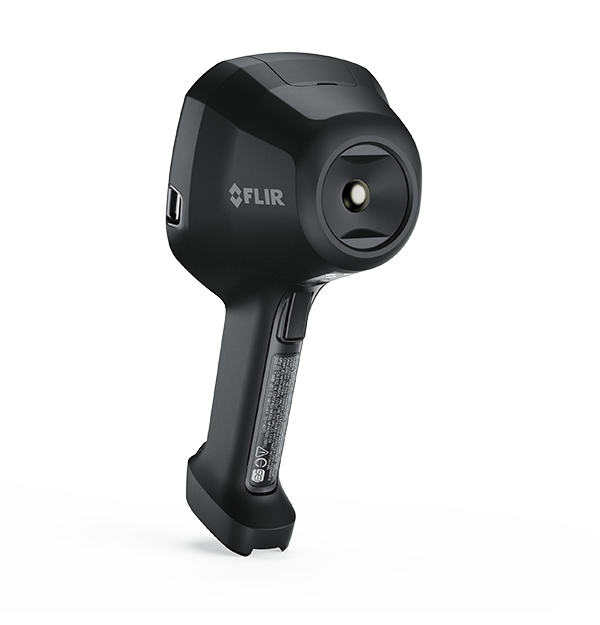

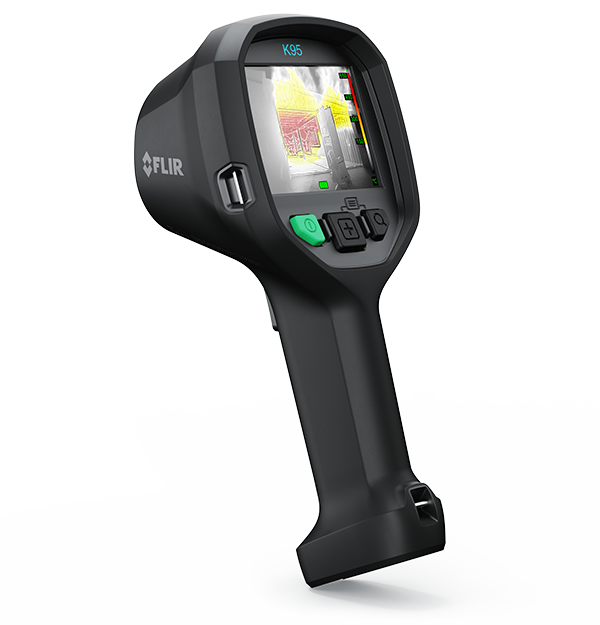

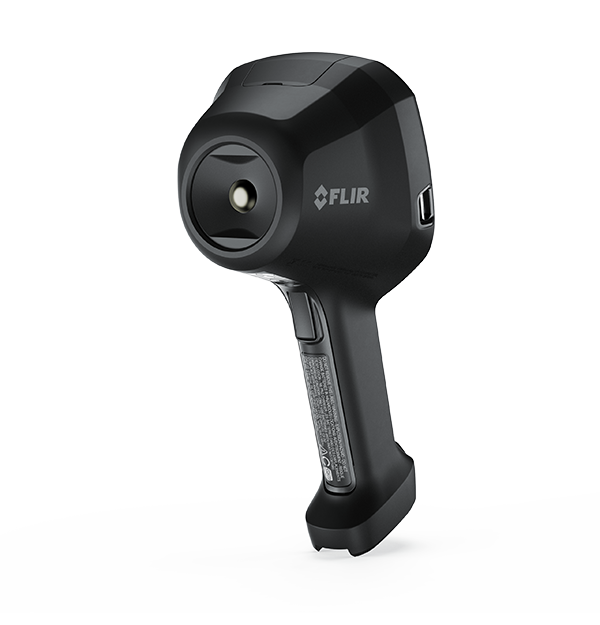

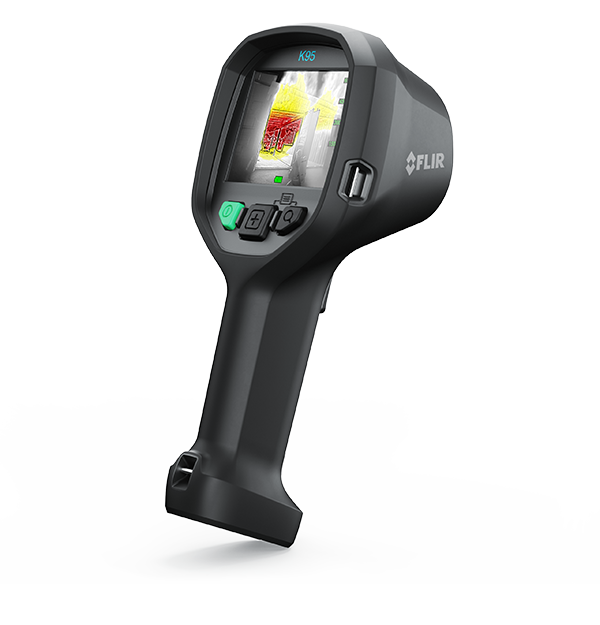

K95
Firefighting TIC, 95° Wide-Angle Field of View, 640 × 480, App-Enabled
The Flir K95 is the next generation of the K-Series, designed to give firefighters a clearer, more complete view before, during, and after every incident. Combining 640 × 480 thermal resolution with an expansive 95° field of view, the K95 reveals more of the scene in every glance. By reducing the need for constant scanning and panning, it helps crews understand room layouts, identify movement paths, assess fire development, and make faster, better-informed decisions during search and rescue and fire attack.
Its single-gain solution provides continuous, freeze-free imaging without losing critical scene information. From overheated doors and hidden fire spread to floor openings, the K95 helps firefighters recognize changing conditions sooner, attack fires more strategically, and manoeuvre through smoke-filled environments with greater confidence. Wireless connectivity to the Flir Responder App also simplifies camera configuration, enables live video streaming for training, and supports mission data sharing after the call.
Specifiche
| Evidenziato | |
|---|---|
| Risoluzione IR | 640 × 480 |
| Display | 4" LCD, 640 × 480, 60 Hz, backlit |
| Range di temperature oggetto | Single range solution operating: -20°C to 650°C (-4°F to 1202°F) |
| Modalità immagine | Basic, Search, Detection, High Heat, White Hot |
| Dati ottici e immagine | |
|---|---|
| Banda spettrale | 7.5µm to 14 µm |
| Campo visivo (FOV) | 95° × 74° |
| Frequenza immagine | 30 Hz |
| Modalità immagine | Basic, Search, Detection, High Heat, White Hot |
| Ottimizzazione del contrasto | Flexible Scene Enhancement (FSX®) |
| Pitch | 12 µm |
| Registrazione video IR non-radiometrico | MPEG4 to internal flash memory |
| Risoluzione IR | 640 × 480 |
| Sensibilità termica/NETD | <70 mK |
| Streaming video IR non radiometrico | Uncompressed colorized video using USB and MPEG-4 Stream over Wi-Fi to Flir Responder app |
| Tipo sensore | Focal plane array (FPA), uncooled microbolometer |
| Zoom | 2x digital zoom |
| Ambientali e Certificazioni | |
|---|---|
| Cadute | 2 m (6.6 ft) on concrete floor (IEC 60068-2-31) |
| Campi magnetici | EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment) |
| EMC | EN 301 489-1 RED
EN 301 489-17 EN 55032 Class B (Emission) EN 55035 (Immunity) EN 61000-6-2 Immunity according to Industrial EN 61000-6-3 380-480MHz EN 61000-6-3 800-960MHz EN 60945 Maritime equipment FCC 47 CFR part 15 B, cla |
| Impatti | 25 g (IEC 60068-2-27) |
| Protezione | IP67 (IEC 60529) |
| Range di temperature di esercizio | -20°C to 60°C (-4°F to 140°F)
150°C (302°F): 15 min 260°C (500°F): 5 min |
| Range di temperature di stoccaggio | -40°C to 85°C (-40°F to 185°F) |
| Spettro radio | ETSI EN 300 328
ETSI EN 301 893 FCC 47 CFR part 15 RSS-247 |
| Umidità (esercizio e stoccaggio) | IEC 60068-2-30/24 h 95 |
| Umidità relativa | 95% relative humidity 25°C to 40°C
(77°F to 104°F) non-condensing |
| Vibrazione | 2 g (IEC 60068-2-6) |
| Alimentazione | |
|---|---|
| Autonomia della batteria | Approx. 4 hours @ 25°C (77°F) ambient temperature and typical use |
| Capacità della batteria | 5.8 Ah, at 20°C to 25°C (68°F to 77°F) |
| Gestione alimentazione | For documents like MSDS and UN38.3 test reports/summaries, see: https://support.flir.com/resources/msds |
| Sicurezza [alimentatore] | CE/EN/UL/CSA/PSE 60950-1 IEC 62368 |
| Sistema di carica | Desktop 2-bay charger
Optional in-truck charger |
| Temperatura di ricarica | 0°C to 45°C (32°F to 113°F) |
| Tempo di carica | ≤3 h to capacity enough for 3 h operation |
| Tensione batteria | 3.7 V |
| Tipo batteria | Li-Ion |
| Misurazioni e analisi | |
|---|---|
| Range di temperature oggetto | Single range solution operating: -20°C to 650°C (-4°F to 1202°F) |
| Generali | |
|---|---|
| La confezione comprende | Infrared camera
Battery (2 ea.) Battery charger Carabiner strap Power supply Printed documentation Retractable lanyard, 16 N (58 oz) USB cable |
| Interfaccia utente | |
|---|---|
| Display | 4" LCD, 640 × 480, 60 Hz, backlit |
| Comunicazione e Memorizzazione dati | |
|---|---|
| Bluetooth | Bluetooth v. 5.0 EDR + BLE *PAN |
| Capacità di memorizzazione immagini | 200 files in total (N.B. The total number of files varies dependent on the number of saved video clips) |
| Formati file | Standard JPEG |
| Interfaccia | Update via OTA (Wi-Fi using the Flir Responder app)
Legacy support for updates from PC and data transfer to and from PC |
| Memorizzazione immagini | Camera and Flir Responder app |
| Supporto di memorizzazione | Internal flash memory |
| USB | USB-C |
| Wi-Fi | IEEE 802.11 b/g/n (2.4 GHz) |
Accessori
Risorse e supporto
Datasheet
Scheda tecnica FLIR K95
Datasheet
FLIR K95 Datasheet
Warranty
FLIR Fire Service 2-5-10 Global Limited Warranty
Certification
ISO 9001-2015 FLIR Sweden
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
