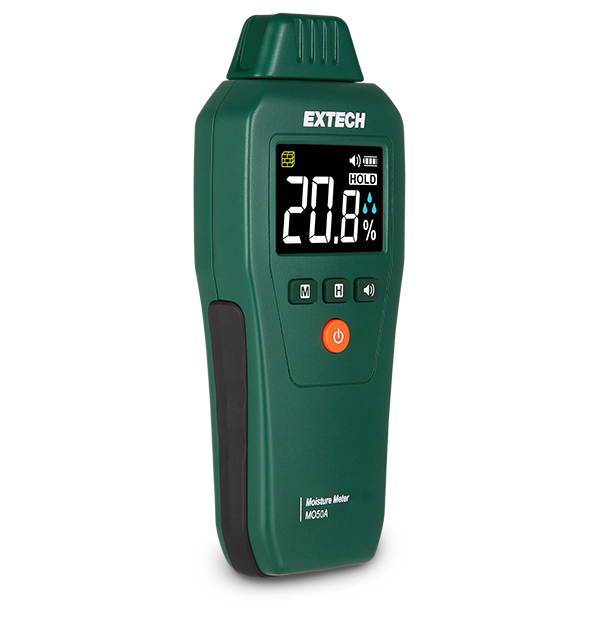

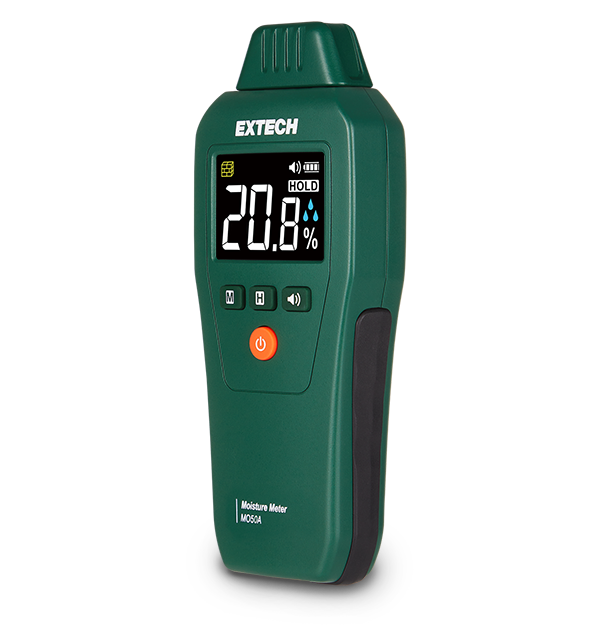

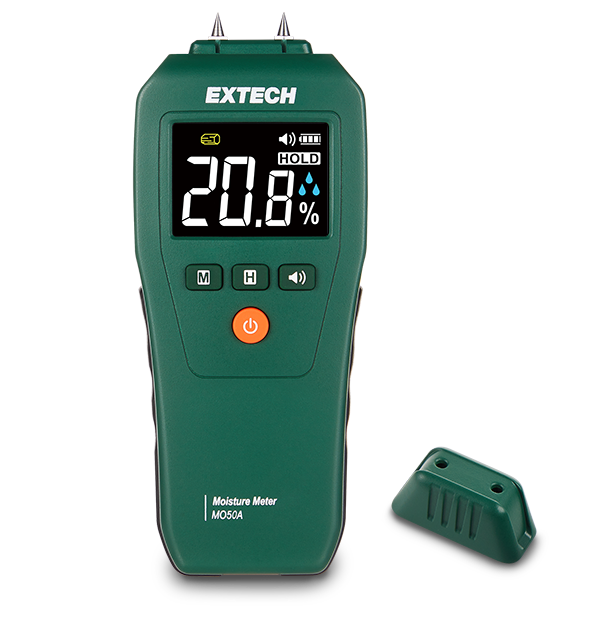

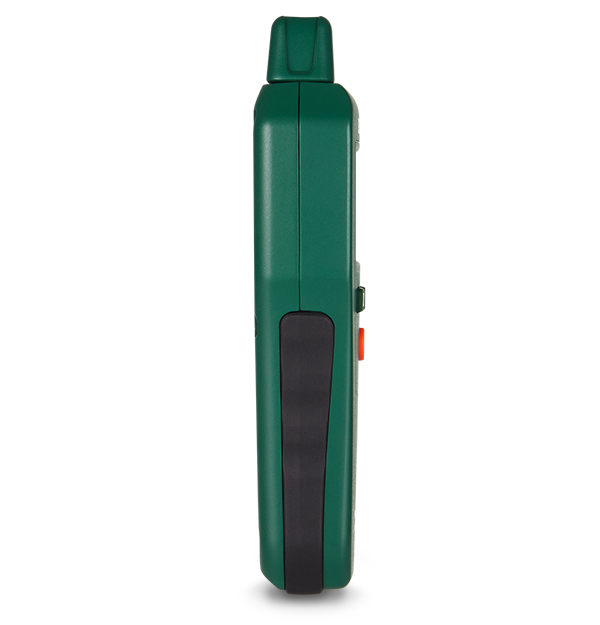

The MO50A Compact Pin-Type Moisture Meter makes it easy to take quick reference measurements on wood and building materials. It features a high-contrast color LCD with backlight for clear viewing in any lighting condition, along with intuitive display icons and audible alerts that simplify moisture level interpretation. Ideal for building restoration work, the MO50A helps detect moisture in floors, under carpets, behind walls, and in ceilings—making it an essential tool for assessing damage after water leaks.
Bright backlight makes for easy viewing in any lighting condition
Displays moisture levels in wood and building materials such as wall
board, sheet rock, cardboard plaster, concrete, and mortar
Tone rate beeps faster as the moisture level increases
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base contenuto di umidità WME (puntali) | ±(3% + 5 digits) at 22°C to 25°C (72°F to 77°F) |

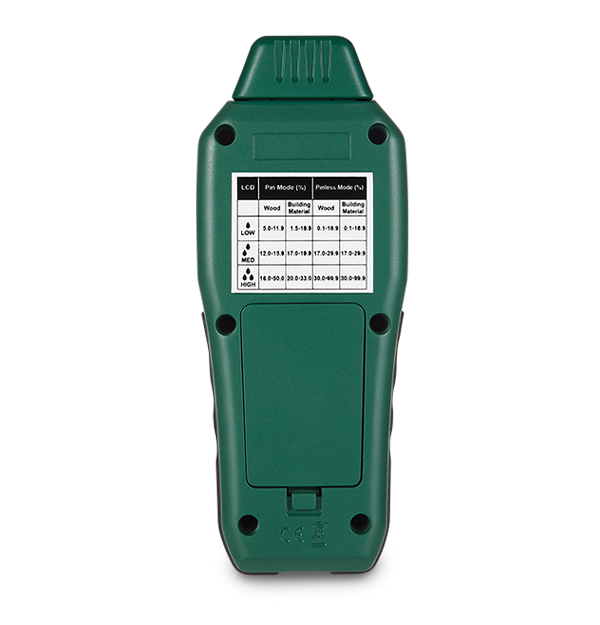

| Campo di misurazione | Wood: Low: 1.5% to 16.9% Medium: 12% to 15.9% High: 16% to 50% Building Material Low: 1.5% to 16.9% Medium: 17% to 19.9% High: 20% to 33% |
| Contenuto di umidità WME (puntali) | Wood Range: 5.0% to 50.0% Building Material Range: 1.5% to 33.0% |
| Principio di misurazione | Electrical resistance using pins |
| Range di temperature di stoccaggio | 0°C to 50°C (32°F to 122°F); < 85% RH |
| Risoluzione max contenuto di umidità WME (puntali) | 0.1% |

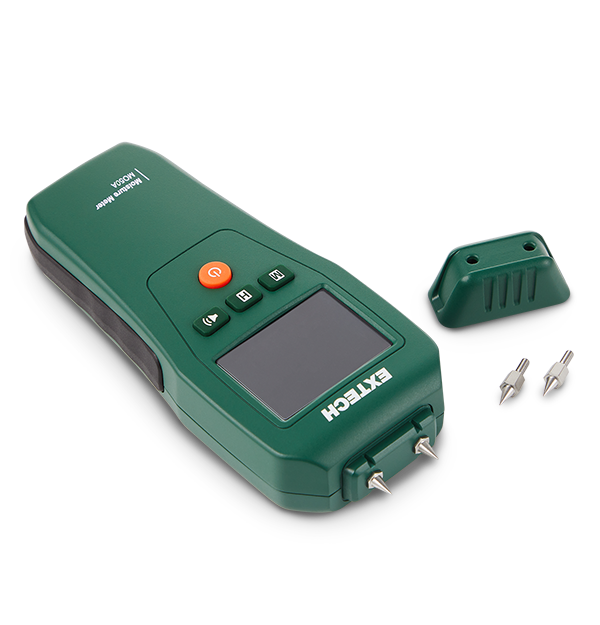

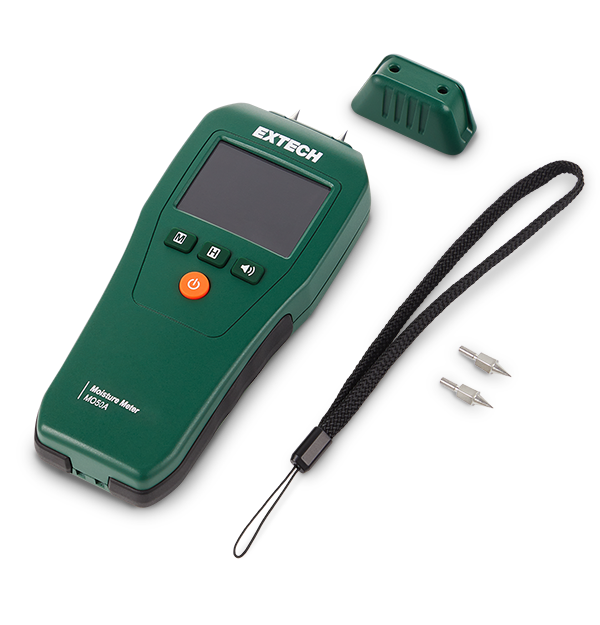

| Tipo sensore | Replaceable threaded contact pins, 8 mm (0.3 in) |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | After approx. 3 minutes |
| Certificazioni | CE, UKCA |
| Condizioni di esercizio | 5°C to 45°C (41°F to 113°F); < 80% RH |
| Dimensioni | 171.6 × 68 × 32.5 mm (6.7 × 2.7 × 1.3 in) |
| Display | Backlit Color LCD |
| Garanzia | 2 years |
| Peso | 151 g (0.33 lb) excluding batteries |
| Tipo batteria | 3 × 1.5 V, AAA batteries |
