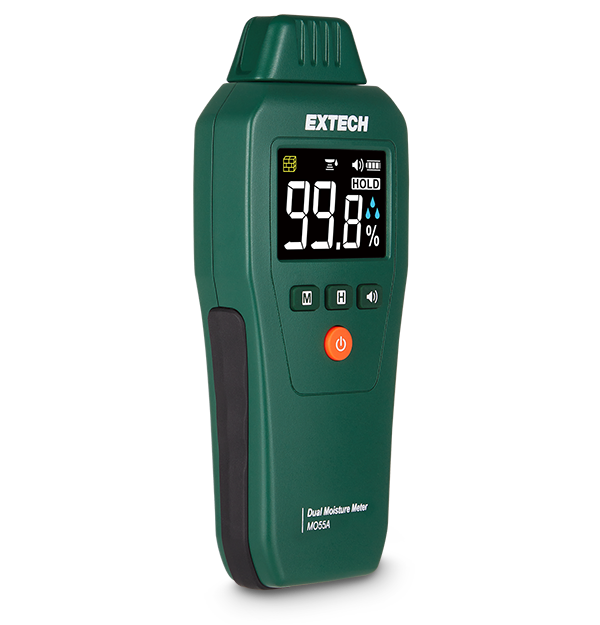

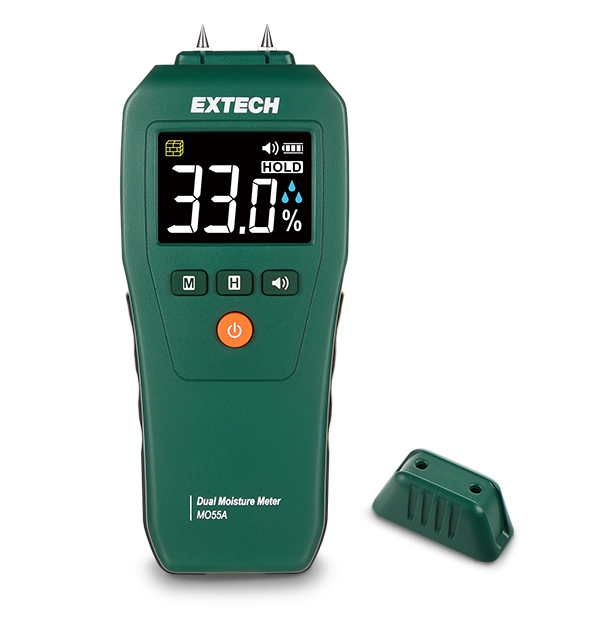

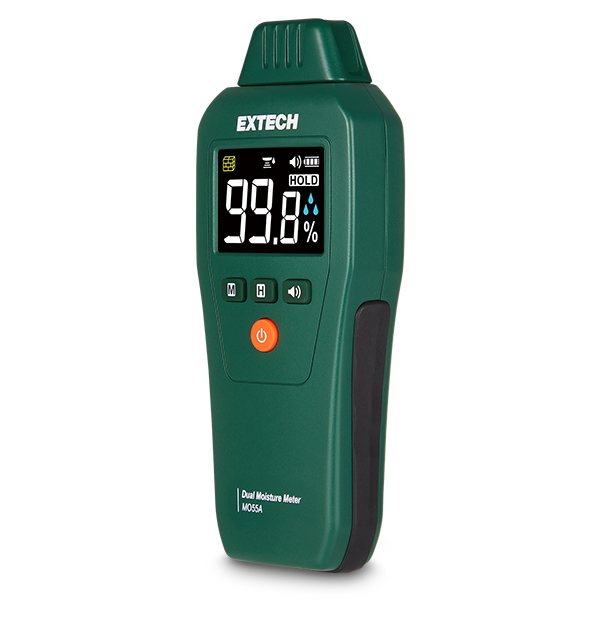

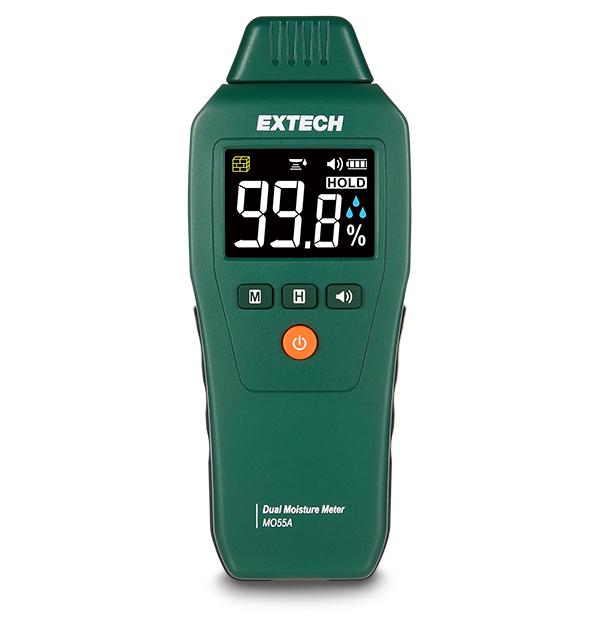

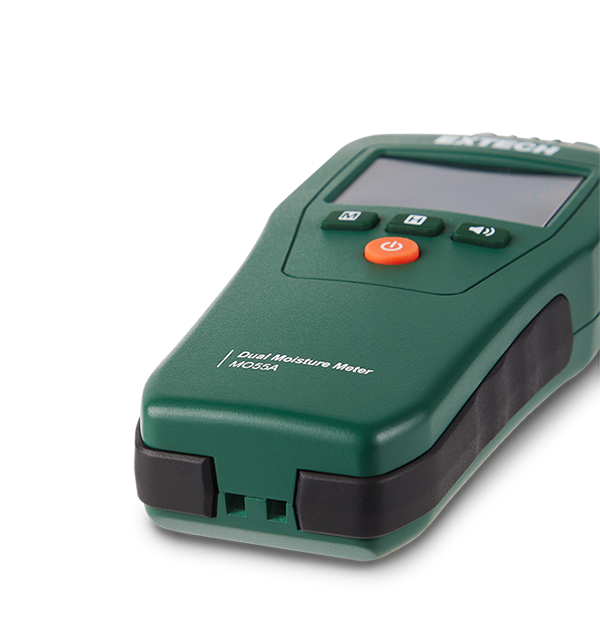

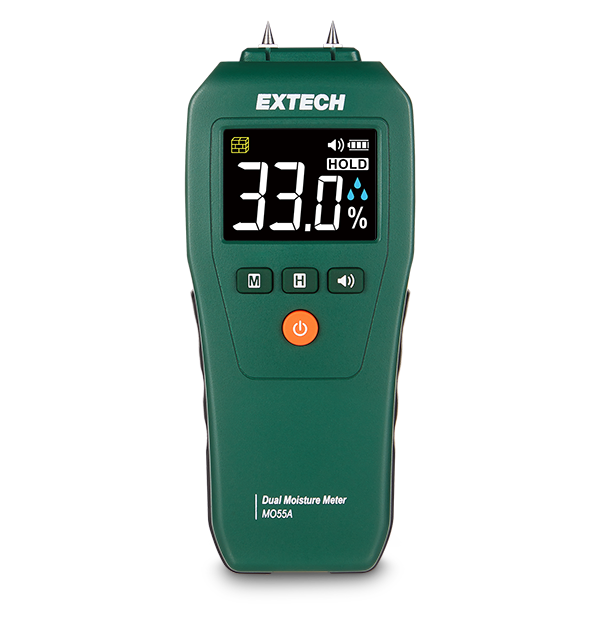

Take quick moisture measurements from a variety of building materials using either the pin or pinless (non-invasive) method with the Extech MO55A. This easy-to-use moisture meter features a high-contrast color LCD with backlight for clear visibility in any environment. It uses intuitive display icons to indicate moisture levels and provides an audible alert that speeds up as moisture increases. Ideal for building restoration projects and applications where detecting moisture on floors, tiles, and under carpets is critical, the MO55A is also essential for analyzing the after-effects of water leakage behind walls and in ceilings.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base contenuto di umidità WME (puntali) | ±(3% + 5 digits) at 22°C to 25°C (72°F to 77°F) |

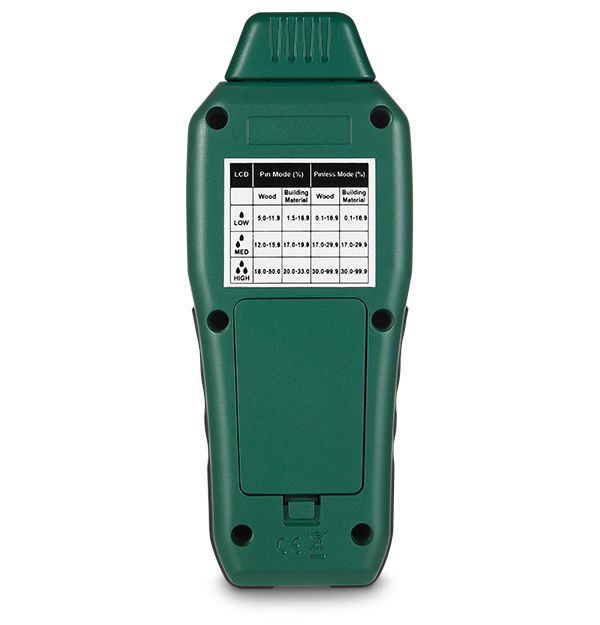

| Campo di misurazione | Wood: Low: 1.5% to 16.9% Medium: 12% to 15.9% High: 16% to 50% Building Material Low: 1.5% to 16.9% Medium: 17% to 19.9% High: 20% to 33% |
| Contenuto di umidità relativa (senza puntali) | Wood: 0.0% to 99.9% Other building materials: 0.0% to 99.9% up to 25 mm (1 in) deep various with material under test |
| Contenuto di umidità WME (puntali) | Wood Range: 5.0% to 50.0% Building Material Range: 1.5% to 33.0% |
| Principio di misurazione | Electrical resistance (pins); Capacitance (pinless) |
| Profondità di misurazione | Pinless < 25 mm (1 in) |
| Range di temperature di stoccaggio | 0°C to 50°C (32°F to 122°F); < 85% RH |
| Risoluzione max contenuto di umidità WME (puntali) | 0.1% |

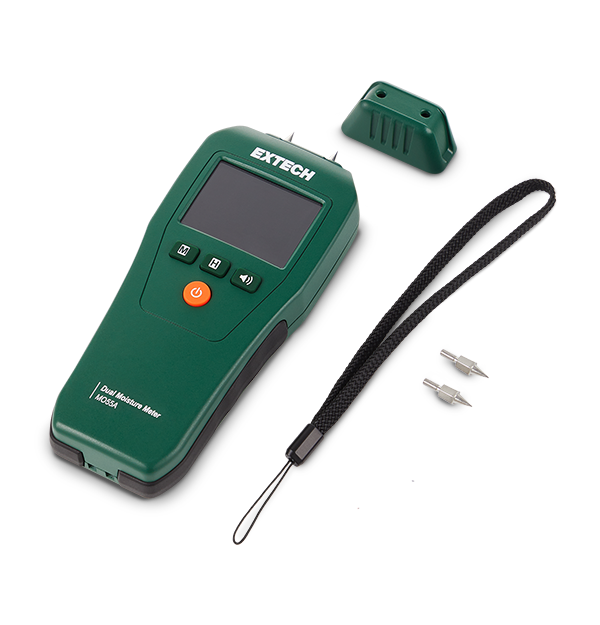

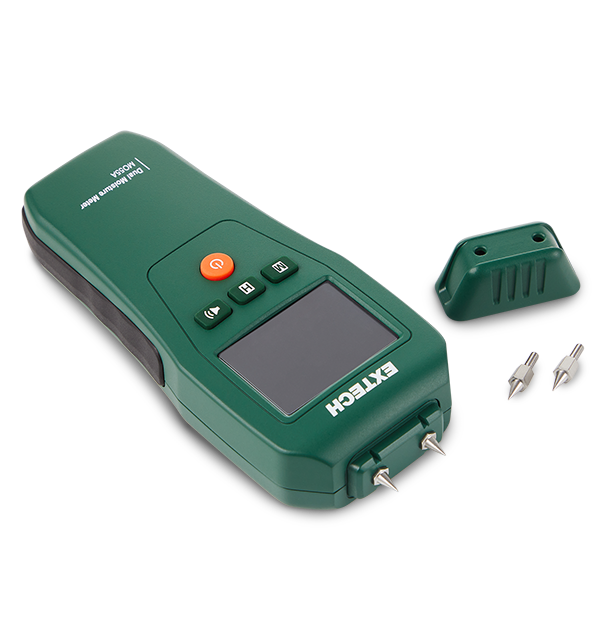

| Tipo sensore | Replaceable threaded contact pins, 8 mm (0.3 in); non-penetrating electromagnetic sensor pad |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | Auto Power Off after approx. 3 minutes |
| Certificazioni | CE, UKCA |
| Condizioni di esercizio | 5°C to 45°C (41°F to 113°F); < 80% RH |
| Dimensioni | 171.6 × 68 × 32.5 mm (6.7 × 2.7 × 1.3 in) |
| Display | Backlit Color LCD |
| Garanzia | 2 years |
| Peso | 151 g (0.33 lb) excluding batteries |
| Tipo batteria | 3 × 1.5 V, AAA batteries |
