FLIR A6700 MWIR
Science-Grade MWIR InSb Camera
Product Variations
Designed for electronics inspections, manufacturing monitoring, scientific research, and non-destructive testing, the FLIR A6700 MWIR camera is ideal for high-speed thermal events and fast-moving targets. Short exposure times allow users to freeze motion and achieve accurate temperature measurements. In fact, the camera’s image output can be windowed to increase frame rates to 480 frames per second to accurately characterize even higher speed thermal events, helping ensure critical data doesn’t get missed during testing.
Affordable, Flexible Solution For Real-time Thermal Analysis
FLIR A6700 operates in the 3.0–5.0 µm waveband (1.0–5.0 µm broadband option) and produces finely-detailed, 327,680 pixel images.
Snapshot mode lets you capture every pixel from a scene simultaneously, which is crucial to measuring temperatures of fast-moving objects.
Gigabit Ethernet and analog video are simultaneously active yet independently controlled allowing greater flexibility for recording and display purposes.
Specifications
| Highlighted | |
|---|---|
| Resolution | 640 × 512 |
| Pixel Size [Square] | 15 µm |
| Spectral Range | A6700 MWIR, A6702 MWIR: 1.0 – 5.0 µm A6701 MWIR, A6703 MWIR: 3.0 – 5.0 µm |
| Detector Type | FLIR indium antimonide (InSb) |
| Camera f_number | A6700 MWIR, A6701 MWIR: f/2.5 A6702 MWIR, A6703 MWIR: f/4.0 |
| Dynamic Range | 14-bit |
| Frame Rate [Full Window] | Programmable; 0.0015 Hz to 60 Hz |
| Integration Time | 480 ns to ~full frame |
| Standard Temperature Range [with band matched optics] | A6700 MWIR: -20°C to 300°C (-4°F to 572°F) A6701 MWIR, A6703 MWIR: -20°C to 350°C (-4°F to 662°F), -10°C (50°F) for microscopes A6702 MWIR: -20°C to 350°C (-4°F to 662°F) |
| Optional Temperature Range [with band matched optics] | 45°C to 600°C/113°F to 1112°F (ND1); 250°C to 2000°C/482°F to 3632°F (ND2); 500°C to 3000°C/932°F to 5432°F (ND3) |
| Filter Holder [Warm] | Behind lens mount for standard 1 inch diameter filters |
| Focus | Manual |

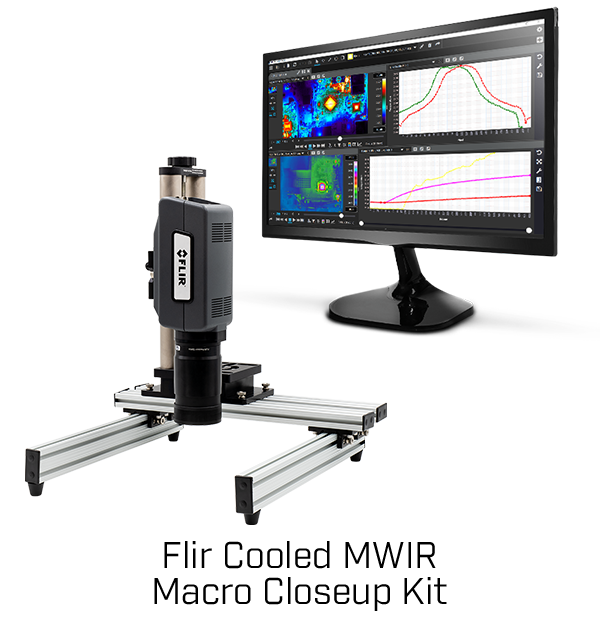

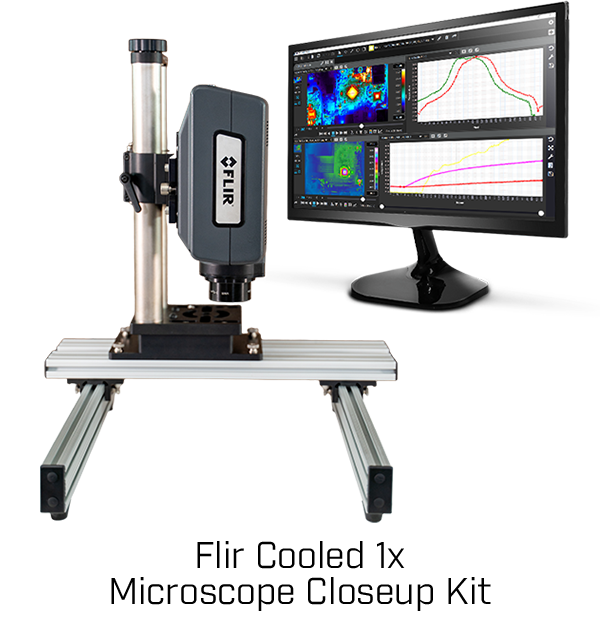

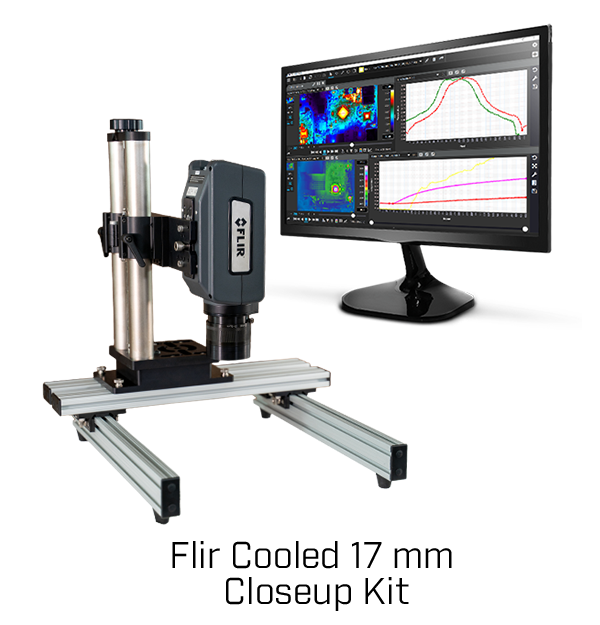

| Box Contents | Box Contents for Kits: • FLIR A6701 InSb (3.0 - 5.0μm), 640x512, f/2.5, GigE, 60Hz (29440-201) • MWIR 3-5um Thermographic Calibration for -20°C to +350°C (CAL35-STD) • Research Studio - Professional Edition - 1 Year License (Online Activation) (4232535) • Heavy Duty Open Base Camera Stand (4257132) And one of the following: • 50mm macro lens 3.0-5.0µm, f/2.5 (FPO Manual Bayonet) (T300585) or • 1x Microscope, 3.0-5.0µm, f/2.5 (4214995) or • 17mm lens, 3.0-5.0µm, f/2.5 (FPO Manual Bayonet) (4215423) |
| Imaging & Optical | |
|---|---|
| Available Lenses | A6700 MWIR, A6702 MWIR: 25 mm, 50 mm, 100 mm A6701 MWIR, A6703 MWIR: 17 mm, 25 mm, 50 mm, 100 mm, 200 mm |
| Camera f_number | A6700 MWIR, A6701 MWIR: f/2.5 A6702 MWIR, A6703 MWIR: f/4.0 |
| Close_up Lenses_Microscopes | A6700 MWIR, A6702 MWIR: No microscopes available A6701 MWIR, A6703 MWIR: 1X, 3X |
| Detector Type | FLIR indium antimonide (InSb) |
| Dynamic Range | 14-bit |
| Filter Holder [Warm] | Behind lens mount for standard 1 inch diameter filters |
| Focus | Manual |
| Frame Rate [Full Window] | Programmable; 0.0015 Hz to 60 Hz |
| Image Time Stamp | Yes |
| Integration Time | 480 ns to ~full frame |
| Lens Interface | FLIR FPO (4-tab bayonet) |
| On Camera Image Storage | None |
| Operability | ≥99.8% (≥99.95% typical) |
| Overlay | Fixed configuration, can be turned off |
| Palette | Selectable 8-bit |
| Pixel Clock | 50 MHz |
| Pixel Size [Square] | 15 µm |
| Radiometric Data Streaming | Gigabit Ethernet (GigE Vision) |
| Readout Modes | Asynchronous integrate while read; asynchronous integrate then read |
| Readout Type | Snapshot |
| Resolution | 640 × 512 |
| Sensor Cooling | Closed-cycle rotary |
| Spectral Range | A6700 MWIR, A6702 MWIR: 1.0 – 5.0 µm A6701 MWIR, A6703 MWIR: 3.0 – 5.0 µm |
| Standard Video | SDI |
| Standard Video Zoom | Automatic, variable |
| Subwindow Modes | Full, half, and quarter window |
| Thermal Sensitivity_NETD [typical] | A6700 MWIR, A6702 MWIR: ≤25 mK typical A6701 MWIR, A6703 MWIR: ≤20 mK typical |
| Video Modes | SDI: 720p@50/59.9, 1080p@25/29.9 |
| Measurement & Analysis | |
|---|---|
| Accuracy | ≤100°C (≤212°F), ±2°C (±3.6°F) accuracy (±1°C/1.8°F typical); >100°C ±2% of reading (±1% typical) |
| Ambient Drift Compensation [with factory cal] | Yes |
| Automatic Gain Control | Manual, Linear, Plateau equalization, DDE |
| Optional Temperature Range [with band matched optics] | 45°C to 600°C/113°F to 1112°F (ND1); 250°C to 2000°C/482°F to 3632°F (ND2); 500°C to 3000°C/932°F to 5432°F (ND3) |
| Standard Temperature Range [with band matched optics] | A6700 MWIR: -20°C to 300°C (-4°F to 572°F) A6701 MWIR, A6703 MWIR: -20°C to 350°C (-4°F to 662°F), -10°C (50°F) for microscopes A6702 MWIR: -20°C to 350°C (-4°F to 662°F) |
| Communication & Data Storage | |
|---|---|
| Command and Control | GenICam (GigE) |
| Synchronization Modes | Sync In |
| General | |
|---|---|
| Box Contents | Box Contents for Kits: • FLIR A6701 InSb (3.0 - 5.0μm), 640x512, f/2.5, GigE, 60Hz (29440-201) • MWIR 3-5um Thermographic Calibration for -20°C to +350°C (CAL35-STD) • Research Studio - Professional Edition - 1 Year License (Online Activation) (4232535) • Heavy Duty Open Base Camera Stand (4257132) And one of the following: • 50mm macro lens 3.0-5.0µm, f/2.5 (FPO Manual Bayonet) (T300585) or • 1x Microscope, 3.0-5.0µm, f/2.5 (4214995) or • 17mm lens, 3.0-5.0µm, f/2.5 (FPO Manual Bayonet) (4215423) |
| Size [L x W x H ] w_o Lens | 226 × 102 × 109 mm (8.9 × 4.0 × 4.3 in.) |
| Weight [without lens] | 2.3 kg (5 lbs) |
| Power | |
|---|---|
| Power | 24 VDC (<24 W steady state) |
| Environmental & Certifications | |
|---|---|
| Mounting | 2 × ¼" -20 tapped holes, 1 × 3/8"-16 tapped hole, 4 × 10-24 tapped holes |
| Operating Temperature Range | -20°C to 50°C (-4°F to 122°F) |
Accessories
- 3x Microscope Protective Window - MWIR ONLY (4219929)
- FPO Bayonet Plug, 4-Tab FPO Bayonet (4142249)
- FLIR A67xx Camera Filter Holder, Behind The lens, 1" Diameter, 4-tab FPO Manual Bayonet (4205217)
- Extender Ring Set, 4 Rings 0.25", 0.50", 0.75", & 1.00", 4-Tab FPO Bayonet (4205079)
- FLIR Cooled Science X-Series + A-Series Camera Universal Lens Support (4210086)
- FLIR Cooled Science A-Series + X-Series Camera Power Connector (26399-000)
- 1x Microscope Protective Window - MWIR & LWIR (4206654-6)
