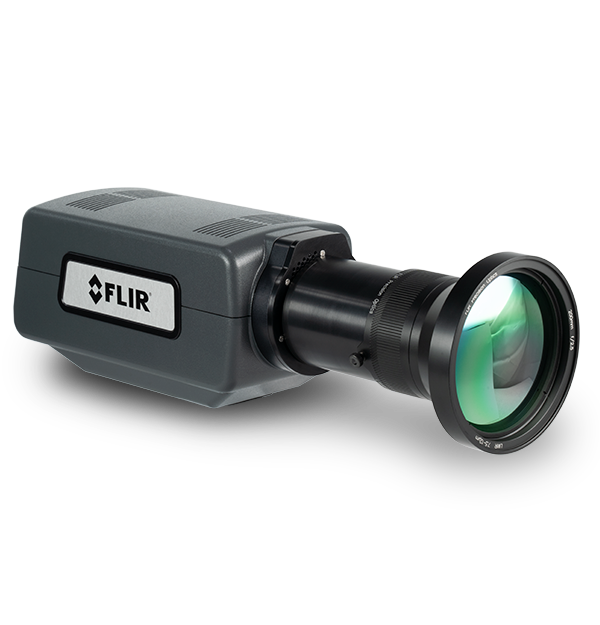

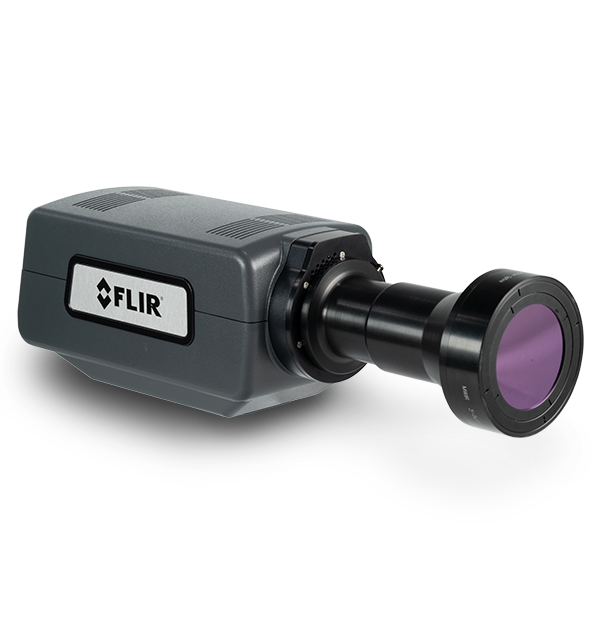

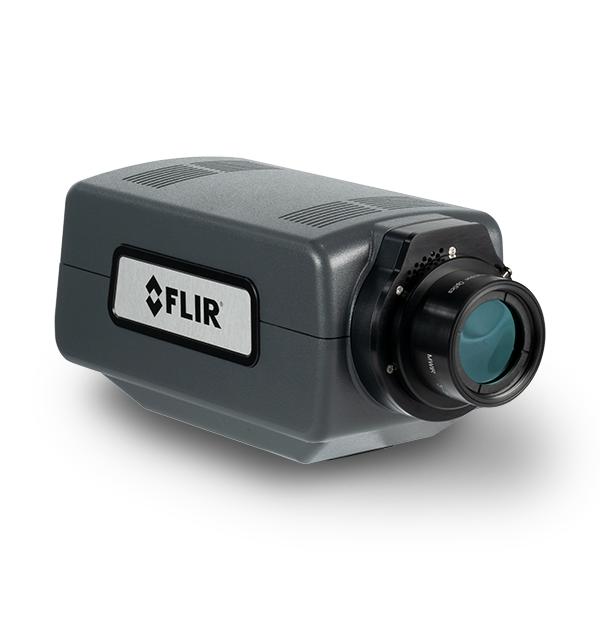

FLIR A6780 MWIR
Midwave Infrared Thermal Camera
Product Variations
The FLIR A6780 MWIR camera system makes it easy to measure temperatures of rapid thermal events and fast-moving targets, making it an ideal choice for industrial, military, and manufacturing R&D applications. This affordable, cooled InSb camera offers the flexibility of both manual and remote-focus lens options to maximize the number of measurement pixels on the object of interest. And single cable connectivity using Gigabit Ethernet provides complete camera control plus data capturing in FLIR Research Studio software – so users can analyze and understand data faster than ever before.
EASY, ACCURATE TEMPERATURE DATA
Control the camera and stream data using a single Gigabit Ethernet cable; capture the data you want when you want it thanks to advanced triggering and synchronization capabilities.
Offers sub-windowed frame rates up to 4,130 Hz, a suite of lens options, and a built-in 3-position warm filter wheel to quickly switch between standard and high-temperature ranges.
FLIR Research Studio’s simple Connect–View–Record–Analyze workflow helps you collect and analyze data quickly and collaborate with your team easily.
Specifications
| Highlighted | |
|---|---|
| Resolution | 640 × 512 |
| Pixel Size [Square] | 15 µm |
| Spectral Range | A6780 MWIR, A6782 MWIR: 1.0 – 5.0 µm A6781 MWIR, A6783 MWIR: 3.0 – 5.0 µm |
| Detector Type | FLIR indium antimonide (InSb) |
| Camera f_number | A6780 MWIR, A6781 MWIR: f/2.5 A6782 MWIR, A6783 MWIR: f/4.0 |
| Dynamic Range | 14-bit |
| Frame Rate [Full Window] | Programmable; 0.0015 Hz to 125 Hz |
| Integration Time | 480 ns to ~full frame |
| Standard Temperature Range [with band matched optics] | A6780 MWIR: -20°C to 300°C (-4°F to 572°F) A6781 MWIR, A6783 MWIR: -20°C to 350°C (-4°F to 662°F), -10°C (50°F) for microscopes A6782 MWIR: -20°C to 350°C (-4°F to 662°F) |
| Optional Temperature Range [with band matched optics] | 45°C to 600°C/113°F to 1112°F (ND1); 250°C to 2000°C/482°F to 3632°F (ND2); 500°C to 3000°C/932°F to 5432°F (ND3) |
| Filter Holder [Warm] | 3-position motorized filter wheel ( 1 inch diameter filters) |
| Focus | Motorized (compatible w/ manual) |
| Imaging & Optical | |
|---|---|
| Available Lenses | A6780 MWIR: Manual (broadband): 25 mm, 50 mm, 100 mm A6781 MWIR, A6783 MWIR: Manual (3-5 µm): 17 mm, 25 mm, 50 mm, 100 mm, 200 mm Motorized (3-5 µm): 17 mm, 25 mm, 50 mm, 100 mm, 200 mm A6782 MWIR: Manual (broadband): 25 mm, 50 mm, 100 mm Motorized: TBA |
| Camera f_number | A6780 MWIR, A6781 MWIR: f/2.5 A6782 MWIR, A6783 MWIR: f/4.0 |
| Close_up Lenses_Microscopes | A6780 MWIR, A6782 MWIR: No microscopes available A6781 MWIR, A6783 MWIR: 1X, 3X |
| Detector Type | FLIR indium antimonide (InSb) |
| Dynamic Range | 14-bit |
| Filter Holder [Warm] | 3-position motorized filter wheel ( 1 inch diameter filters) |
| Focus | Motorized (compatible w/ manual) |
| Frame Rate [Full Window] | Programmable; 0.0015 Hz to 125 Hz |
| Image Time Stamp | Yes |
| Integration Time | 480 ns to ~full frame |
| Lens Interface | FLIR FPO-M (4-tab bayonet, motorized) |
| On Camera Image Storage | None |
| Operability | ≥99.8% (≥99.95% typical) |
| Overlay | Fixed configuration, can be turned off |
| Palette | Selectable 8-bit |
| Pixel Clock | 50 MHz |
| Pixel Size [Square] | 15 µm |
| Radiometric Data Streaming | Gigabit Ethernet (GigE Vision) |
| Readout Modes | Asynchronous integrate while read, asynchronous integrate then read |
| Readout Type | Snapshot |
| Resolution | 640 × 512 |
| Sensor Cooling | Closed-cycle rotary |
| Spectral Range | A6780 MWIR, A6782 MWIR: 1.0 – 5.0 µm A6781 MWIR, A6783 MWIR: 3.0 – 5.0 µm |
| Standard Video | SDI |
| Standard Video Zoom | Automatic, variable |
| Subwindow Modes | Flexible windowing down to 16 × 4 (steps of 16 columns, 4 rows) |
| Thermal Sensitivity_NETD [typical] | A6780 MWIR, A6782 MWIR: @@@ A6781 MWIR, A6783 MWIR: @@@ |
| Video Modes | SDI: 720p@50/59.9, 1080p@25/29.9 |
| Measurement & Analysis | |
|---|---|
| Accuracy | ≤100°C (≤212°F), ±2°C (±3.6°F) accuracy (±1°C/1.8°F typical); >100°C ±2% of reading (±1% typical) |
| Ambient Drift Compensation [with factory cal] | Yes |
| Automatic Gain Control | Manual, Linear, Plateau equalization, DDE |
| Optional Temperature Range [with band matched optics] | 45°C to 600°C/113°F to 1112°F (ND1); 250°C to 2000°C/482°F to 3632°F (ND2); 500°C to 3000°C/932°F to 5432°F (ND3) |
| Standard Temperature Range [with band matched optics] | A6780 MWIR: -20°C to 300°C (-4°F to 572°F) A6781 MWIR, A6783 MWIR: -20°C to 350°C (-4°F to 662°F), -10°C (50°F) for microscopes A6782 MWIR: -20°C to 350°C (-4°F to 662°F) |
| Communication & Data Storage | |
|---|---|
| Command and Control | GenICam (GigE), RS-232 |
| Synchronization Modes | Sync In, Sync Out |
| General | |
|---|---|
| Size [L x W x H ] w_o Lens | 226 × 102 × 109 mm (8.9 × 4.0 × 4.3 in) |
| Weight [without lens] | 2.3 kg (5 lbs) |
| Power | |
|---|---|
| Power | 24 VDC (<24 W steady state) |
| Environmental & Certifications | |
|---|---|
| Mounting | 2 × ¼" -20 tapped holes, 1 × 3/8"-16 tapped hole, 4 × 10-24 tapped holes |
| Operating Temperature Range | -20°C to 50°C (-4°F to 122°F) |
Accessories
- 3x Microscope Protective Window - MWIR ONLY (4219929)
- FPO Bayonet Plug, 4-Tab FPO Bayonet (4142249)
- FLIR A858x + A678x Camera Filter Holder, Behind The Lens, 1" Diameter, 4-tab FPO Motorized Bayonet (4229763)
- Extender Ring Set, 4 Rings 0.25", 0.50", 0.75", & 1.00", 4-Tab FPO Bayonet (4205079)
- FLIR Cooled Science X-Series + A-Series Camera Universal Lens Support (4210086)
- FLIR Cooled Science A-Series + X-Series Camera Power Connector (26399-000)
- 1x Microscope Protective Window - MWIR & LWIR (4206654-6)
