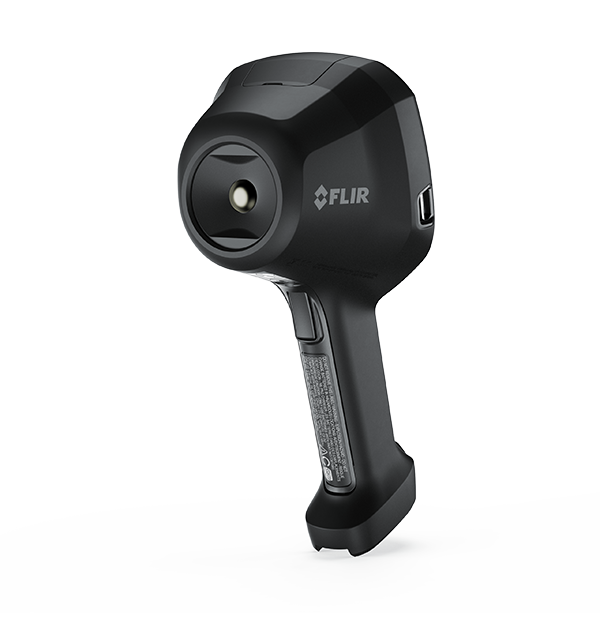

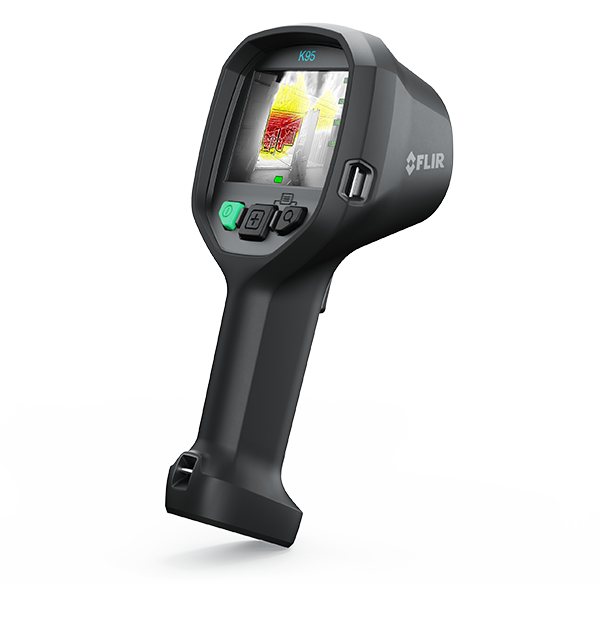

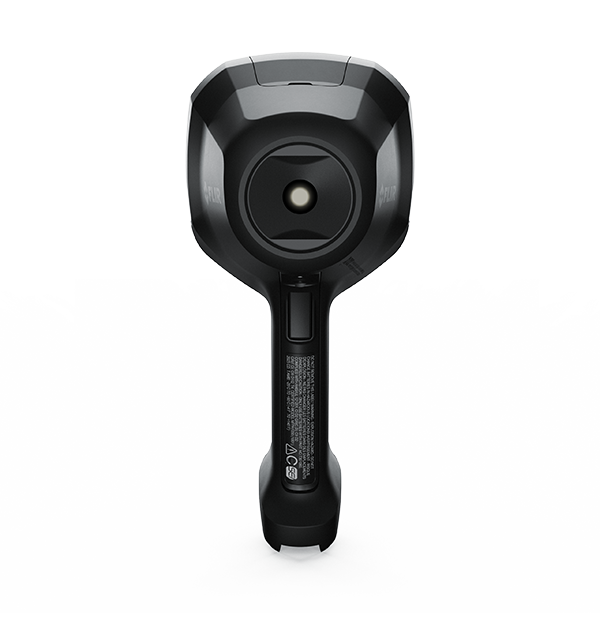

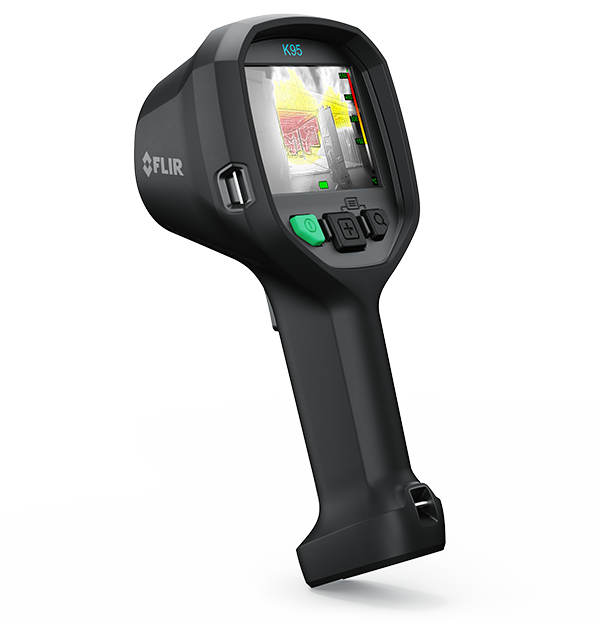

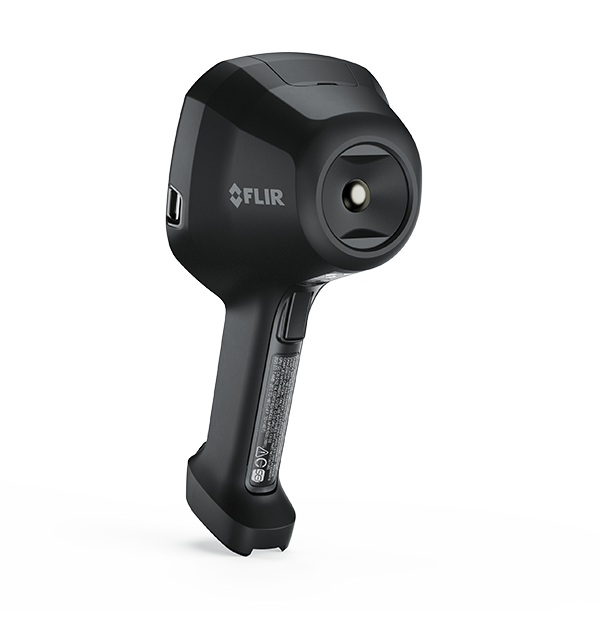

K95
Firefighting TIC, 95° Wide-Angle Field of View, 640 × 480, App-Enabled
The Flir K95 is the next generation of the K-Series, designed to give firefighters a clearer, more complete view before, during, and after every incident. Combining 640 × 480 thermal resolution with an expansive 95° field of view, the K95 reveals more of the scene in every glance. By reducing the need for constant scanning and panning, it helps crews understand room layouts, identify movement paths, assess fire development, and make faster, better-informed decisions during search and rescue and fire attack.
Its single-gain solution provides continuous, freeze-free imaging without losing critical scene information. From overheated doors and hidden fire spread to floor openings, the K95 helps firefighters recognize changing conditions sooner, attack fires more strategically, and manoeuvre through smoke-filled environments with greater confidence. Wireless connectivity to the Flir Responder App also simplifies camera configuration, enables live video streaming for training, and supports mission data sharing after the call.
Especificações
| Destacado | |
|---|---|
| Resolução de IV | 640 × 480 |
| Display | 4" LCD, 640 × 480, 60 Hz, backlit |
| Faixa de Temperatura de Objetos | Single range solution operating: -20°C to 650°C (-4°F to 1202°F) |
| Modos de Imagem | Basic, Search, Detection, High Heat, White Hot |
| Geração de imagem e óptica | |
|---|---|
| Campo de visão (FOV) | 95° × 74° |
| Densidade | 12 µm |
| Faixa Espectral | 7.5µm to 14 µm |
| Frequência da Imagem | 30 Hz |
| Gravação de vídeo IV não radiométrico | MPEG4 to internal flash memory |
| Modos de Imagem | Basic, Search, Detection, High Heat, White Hot |
| Otimização do contraste | Flexible Scene Enhancement (FSX®) |
| Resolução de IV | 640 × 480 |
| Sensibilidade Térmica/NETD | <70 mK |
| Streaming de vídeo IV não radiométrico | Uncompressed colorized video using USB and MPEG-4 Stream over Wi-Fi to Flir Responder app |
| Tipo de Detector | Focal plane array (FPA), uncooled microbolometer |
| Zoom | 2x digital zoom |
| Dados ambientais e certificações | |
|---|---|
| Campos magnéticos | EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment) |
| Choque | 25 g (IEC 60068-2-27) |
| EMC | EN 301 489-1 RED
EN 301 489-17 EN 55032 Class B (Emission) EN 55035 (Immunity) EN 61000-6-2 Immunity according to Industrial EN 61000-6-3 380-480MHz EN 61000-6-3 800-960MHz EN 60945 Maritime equipment FCC 47 CFR part 15 B, cla |
| Encapsulamento | IP67 (IEC 60529) |
| Espectro de Rádio | ETSI EN 300 328
ETSI EN 301 893 FCC 47 CFR part 15 RSS-247 |
| Faixa de Temperatura de Armazenamento | -40°C to 85°C (-40°F to 185°F) |
| Faixa de Temperatura Operacional | -20°C to 60°C (-4°F to 140°F)
150°C (302°F): 15 min 260°C (500°F): 5 min |
| Queda | 2 m (6.6 ft) on concrete floor (IEC 60068-2-31) |
| Umidade (em operação e em armazenamento) | IEC 60068-2-30/24 h 95 |
| Umidade Relativa | 95% relative humidity 25°C to 40°C
(77°F to 104°F) non-condensing |
| Vibração | 2 g (IEC 60068-2-6) |
| Potência | |
|---|---|
| Capacidade da bateria | 5.8 Ah, at 20°C to 25°C (68°F to 77°F) |
| Gerenciamento de Energia | For documents like MSDS and UN38.3 test reports/summaries, see: https://support.flir.com/resources/msds |
| Segurança [fonte de alimentação] | CE/EN/UL/CSA/PSE 60950-1 IEC 62368 |
| Sistema de carregamento | Desktop 2-bay charger
Optional in-truck charger |
| Temperatura de Carregamento | 0°C to 45°C (32°F to 113°F) |
| Tempo de Carregamento | ≤3 h to capacity enough for 3 h operation |
| Tempo Operacional da Bateria | Approx. 4 hours @ 25°C (77°F) ambient temperature and typical use |
| Tensão da bateria | 3.7 V |
| Tipo de bateria | Li-Ion |
| Medição e análise | |
|---|---|
| Faixa de Temperatura de Objetos | Single range solution operating: -20°C to 650°C (-4°F to 1202°F) |
| Geral | |
|---|---|
| O Pacote Inclui | Infrared camera
Battery (2 ea.) Battery charger Carabiner strap Power supply Printed documentation Retractable lanyard, 16 N (58 oz) USB cable |
| Interface do usuário | |
|---|---|
| Display | 4" LCD, 640 × 480, 60 Hz, backlit |
| Comunicação e armazenamento de dados | |
|---|---|
| Armazenamento de Imagem | Camera and Flir Responder app |
| Bluetooth | Bluetooth v. 5.0 EDR + BLE *PAN |
| Capacidade de Armazenamento de Imagem | 200 files in total (N.B. The total number of files varies dependent on the number of saved video clips) |
| Formatos de Arquivo | Standard JPEG |
| Interface | Update via OTA (Wi-Fi using the Flir Responder app)
Legacy support for updates from PC and data transfer to and from PC |
| Mídia de Armazenamento | Internal flash memory |
| USB | USB-C |
| Wi-Fi | IEEE 802.11 b/g/n (2.4 GHz) |
