Discontinued

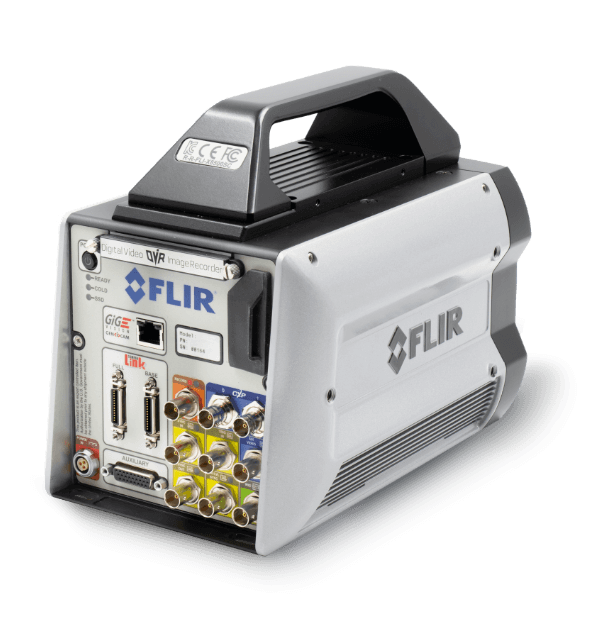

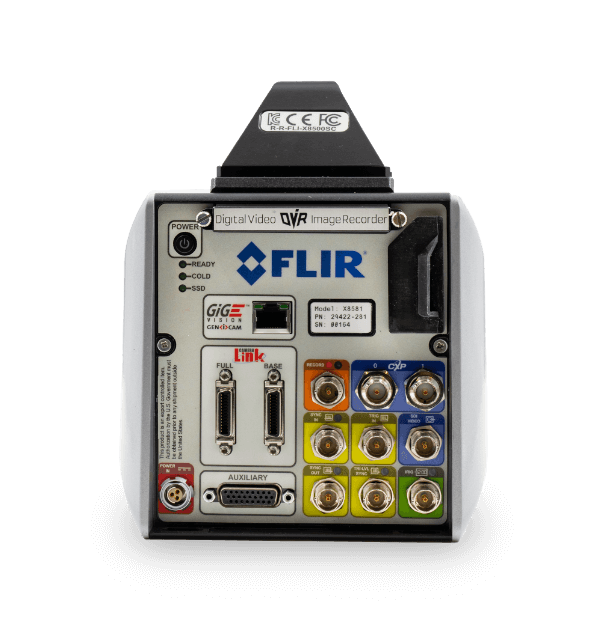

FLIR X8580™
High Definition MWIR Science-Grade Camera
Product Variations
The FLIR X8580 midwave IR camera is designed for scientists and engineers who need to capture detailed imagery of high-speed events, perform custom radiometric measurements, or detect points of failure in composites, solar cells, and electronics. This thermal imaging camera combines 1280 × 1024 HD resolution with fast frame rates and integration times, allowing researchers to record stop motion on fast-moving subjects or rapid temperature changes—whether in the lab or on the test range. With a four-position motorized filter wheel and support for FLIR motorized focus lenses, the X8580 will provide higher quality recordings, save time, and mitigate frustration in dynamic acquisition environments.
Standout Performance, Game-changing Capabilities
Record up to 34 seconds of full HD resolution data directly to on-camera memory, or up to 15 minutes to included 512 GB SSD
Capture essential data easily and control image frame generation precisely with dedicated trigger input and new Tri-level Sync input
Stream thermal data directly from the SSD over any of the digital data buses for advanced analysis with FLIR Research Studio software
Especificações
| Highlighted | |
|---|---|
| Resolução | 1280 × 1024 |
| Pitch do Detector | 12 µm |
| Faixa Espectral | X8580 InSb, X8582 InSb: 1.5–5.0 µm X8581 InSb: 3.0–5.0 µm |
| Tipo de Detector | FLIR indium antimonide (InSb) |
| Número f da Câmera | X8580 InSb, X8581 InSb: f/2.5 X8582 InSb: f/4.1 |
| Faixa Dinâmica | 14-bit |
| NETD | 30 mK typical |
| Taxa de Quadros [Janela Completa] | Programmable: ~0.5 Hz to 181 Hz |
| Faixa de temperatura padrão [com óptica correspondente à banda] | X8580 InSb, X8582 InSb: -20°C to 350°C (-4°F to 662°F) X8581 InSb: -20°C to 350°C (-4°F to 662°F), -10°C/14°F for microscopes |
| Faixa de temperatura opcional [com óptica correspondente à banda] | ND1: 45°C–600°C (113°F–1112°F) ND2: 250°C–2000°C (482°F–3632°F) ND3: 500°C–3000°C (957°F–5432°F) |
| Filtragem | 4-Position motorized warm filter wheel, standard 1-inch filters, user swappable |
| Foco | Motorized (compatible w/manual) |
| Geração de imagem e óptica | |
|---|---|
| Armazenamento de Imagem na Câmera | RAM (volatile): 16 GB, up to 6,500 frames full frame SSD (user-removable/non-volatile): ~15 minutes of recording with included 512 GB SSD (more than 2 hours possible with 4 TB SSD purchased separately) |
| Carimbo de Data/Hora da Imagem | Internal IRIG-B decoder clock TSPI accurate time stamp |
| Clock de Pixel | 355 MHz |
| Download de RAM na câmera, gravações SSD | Transfer from SSD through GigE, CXP, or CL to Research Studio v2.1 or higher |
| Faixa Dinâmica | 14-bit |
| Faixa Espectral | X8580 InSb, X8582 InSb: 1.5–5.0 µm X8581 InSb: 3.0–5.0 µm |
| Filtragem | 4-Position motorized warm filter wheel, standard 1-inch filters, user swappable |
| Foco | Motorized (compatible w/manual) |
| Gravação direta para SSD | Yes, removable 512 GB SSD included |
| Interface da Lente | FLIR FPO-M (4-tab bayonet, motorized) |
| Lentes Disponíveis | X8580 InSb, X8582 InSb: Manual (broadband): 25 mm, 50 mm, 100 mm
Motorized (broadband): None X8581 InSb: Manual (3–5 µm): 17 mm, 25 mm, 50 mm, 100 mm, 200 mm Motorized (3–5 µm): 17 mm, 25 mm, 50 mm, 100 mm, 200 mm |
| Lentes/Microscópios de Close-up | X8580 InSb, X8582 InSb: No broadband microscopes available X8581 InSb: 1x, 3x, 50mm close focus |
| Modos de Janela Secundária | Flexible windowing down to 64 × 4 (steps of 64 columns, 4 rows) |
| Modos de Leitura | Asynchronous integrate while read, Asynchronous integrate then read |
| Modos de Vídeo | HD-SDI: 720p@50/59.9Hz, 1080p@25/29.97Hz; SD-SDI: 480i@60Hz, 576i@50Hz |
| NETD | 30 mK typical |
| Número f da Câmera | X8580 InSb, X8581 InSb: f/2.5 X8582 InSb: f/4.1 |
| Operacionalidade | ≥99.95% typical |
| Paleta | Selectable 8-bit |
| Pitch do Detector | 12 µm |
| Refrigeração do Sensor | Linear sterling cooler |
| Resolução | 1280 × 1024 |
| Sobreposição | Customizable (ability to toggle off) |
| Streaming de Dados Radiométricos | Simultaneous Gigabit Ethernet (GigE Vision), Camera Link,CoaXPress® 1.1, dual 5 Gb links |
| Taxa de Quadros [Janela Completa] | Programmable: ~0.5 Hz to 181 Hz |
| Tipo de Detector | FLIR indium antimonide (InSb) |
| Tipo de Leitura | Snapshot |
| Vídeo Padrão | HDMI, SDI |
| Zoom Digital | 1x, Auto (best fit) |
| Medição e análise | |
|---|---|
| Compensação de variação de temperatura [com calibração de fábrica] | Yes |
| Controle Automático de Ganho | Manual, Linear, Plateau equalization, ROI, DDE |
| Faixa de temperatura opcional [com óptica correspondente à banda] | ND1: 45°C–600°C (113°F–1112°F) ND2: 250°C–2000°C (482°F–3632°F) ND3: 500°C–3000°C (957°F–5432°F) |
| Faixa de temperatura padrão [com óptica correspondente à banda] | X8580 InSb, X8582 InSb: -20°C to 350°C (-4°F to 662°F) X8581 InSb: -20°C to 350°C (-4°F to 662°F), -10°C/14°F for microscopes |
| Precisão | ≤100°C: ±2°C (±1°C typical), >100°C: ±2% of reading (±1% typical) |
| Comunicação e armazenamento de dados | |
|---|---|
| Modos de Sincronização | Sync In, Sync Out, Tri-Level Sync |
| Potência | |
|---|---|
| Potência | 24 VDC (<50 W steady state) |
| Dados ambientais e certificações | |
|---|---|
| Faixa de Temperatura Operacional | -20°C to 50°C (-4°F to 122°F) |
| Montagem | 2 × 1/4 in -20 / 1 × 3/8 in -16 / 4 × #10 -24 / Side: 3x 1/4 in -20 (each side) |
Accessories
- Extender Ring Set, 4 Rings 0.25", 0.50", 0.75", & 1.00", 4-Tab FPO Bayonet (4205079)
- FLIR Cooled Science X-Series + A-Series Camera Universal Lens Support (4210086)
- FLIR Cooled Science A-Series + X-Series Camera Power Connector (26399-000)
- 1x Microscope Protective Window - MWIR & LWIR (4206654-6)
- FLIR X-Camera Filter Wheel Removal Wrench (C1004.M202)
- FLIR X-Camera Filter Wheel Holders
- 3x Microscope Protective Window - MWIR ONLY (4219929)
- FPO Bayonet Plug, 4-Tab FPO Bayonet (4142249)
