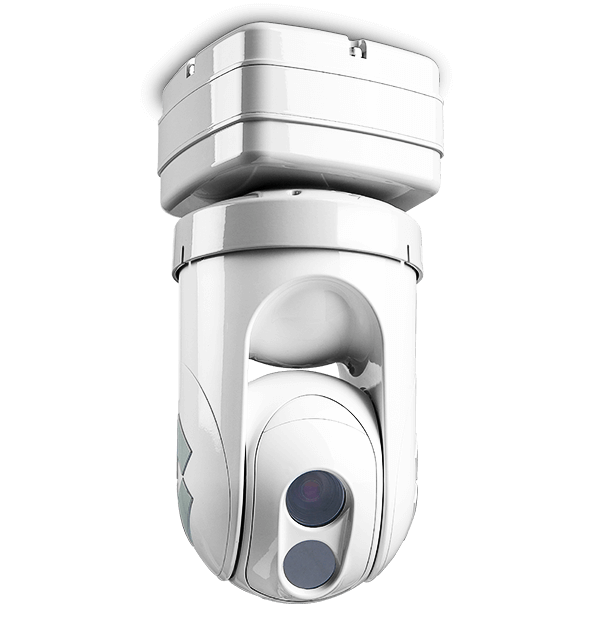

Triton™ D-Series
Visible and Thermal Pan/Tilt Dome
The compact Triton™ D-Series thermal security camera reveals intruders and other security threats in complete darkness and inclement weather using a discrete dome-style enclosure. The camera offers precise pan/tilt control and fully-programmable scan patterns, radar slew-to-cue, and slew-to-alarm functionality via IP standards. The result is clear 24/7 imaging capability.
规格
| 合规性与认证 | |
|---|---|
| 合规性与认证 | EN 61000-6-4: 2007 Class A/CISPR 22: 2005 Class A EN 61000-3-3: 1995+A1:2001+A2:2005 EN 61000-3-2: 2006 EN 50130-4: 1996+A1:1998+A2:2003 FCC Part 15, Subpart B, Class A IP 56 (IEC 60529) IEC 60068-2-27 |
| 环境 | |
|---|---|
| IP防护等级（防尘防水） | IP56 |
| 存储温度范围 | -55°C to 85°C |
| 工作温度范围 | (-25°C to 70°C ) (-25°C to 58°C )(w/black paint) |
| 抗振动 | IEC 60068-2-27 |
| 抗撞击 | MIL-STD-810F "Transportation" |
| 湿度 | 0-95% relative |
| 常规 | |
|---|---|
| 功耗 | 24 VDC: 75 W (max) 24 VAC: 85 VA (max) |
| 尺寸（长 x 宽 x 高） | 17" × 8" (432 × 203 mm) |
| 探测器类型 | Long-Life, Uncooled VOx Microbolometer |
| 有效热分辨率 | 76800.0 |
| 热像仪像素间距 | 25 µm |
| 热像仪平台类型 | Outdoor PTZ Dome |
| 热像仪波长范围 | 7.5 µm to 13.5 µm |
| 热像仪阵列格式 | 320 × 240 |
| 热电子变焦 | Up to 4× E-zoom |
| 热调焦范围 | Athermalized, Focus-Free |
| 输入电压 | 24 VDC (21-30 VDC) 24 VAC (20-30 VAC) |
| 重量 | ~18.2 lb (8.3 kg); Configuration Dependent |
| 测量与分析 | |
|---|---|
| 可编程预设值 | 128.0 |
| PTZ | |
|---|---|
| 位置可重复性 | +/-.5 deg El, +/- .2deg Az |
| 俯仰角-速度 | +45° to -180°; 0.5° to 60°/sec |
| 方位角/速度 | Continuous 360°; 0.5° to 60°/sec |
| 系统集成 | |
|---|---|
| 串行控制接口 | RS-232/-422; Pelco D, Bosch |
| 以太网 | Yes |
| 兼容外部分析软件 | Yes |
| 支持的协议 | IPV4, HTTP, Bonjour, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, SCP |
| 网络API | Nexus SDK for comprehensive system control and integration Nexus CGI for http command interfaces ONVIF 2.0 Profile S |
| 热像仪 | |
|---|---|
| 焦距 | 13 mm |
| 视场角（FOV） | 34° × 28° |
| 阵列格式 | 320 × 240 |
| 可见光相机 | |
|---|---|
| 焦距 | 13 mm |
| 视场角（FOV） | 34° × 28° |
| 阵列格式 | 320 × 240 |
| 视频和录制 | |
|---|---|
| NTSC或PAL复合视频 | Yes: Hybrid IP & Analog |
| 热成像视频AGC侦测区域[ROI] | Default, Presets and User definable to insure optimal image quality on subjects of interest |
| 热成像视频AGC模式 | Auto AGC, Manual AGC, Plateau Equalization AGC, Linear AGC, Auto Dynamic Detail Enhancement (DDE), Max Gain Setting |
| 视频压缩 | Two independent channels of streaming MPEG-4, H.264, or M-JPEG for each of two cameras; multiple streams per channel. |
| 视频图像一致性优化 | Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers |
| 视频流分辨率 | NTSC: D1 (720 × 480) 4SIF (704 × 480) VGA (640 × 480) SIF (352 ×240) QVGA (320 × 240) PAL: D1 (720 ×576) 4CIF (704 × 576) CIF (352 × 288) |
