Note: For additional Ex Pro-Series support resources, please visit Support.FLIR.com.

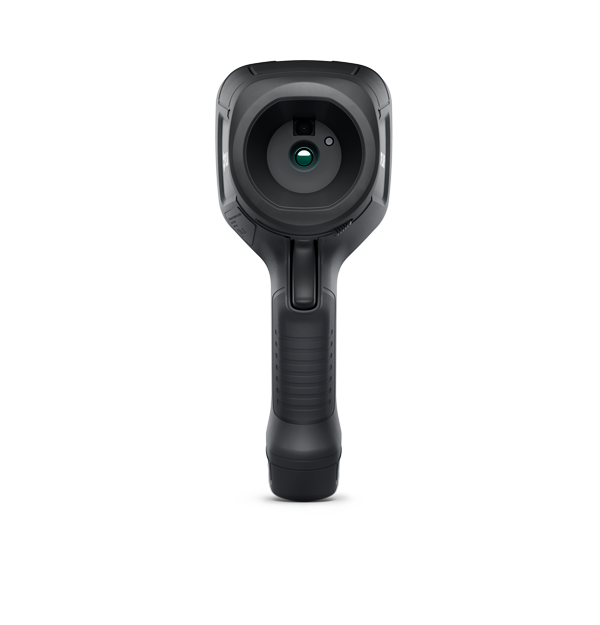

FLIR E5 Pro是一款坚固耐用的即瞄即拍型红外热像仪，可帮助您在建筑勘测、暖通空调、汽车以及一般电气和机械检测方面比以往更高效地工作。可快速定位和诊断问题，具有 160 × 120 的热分辨率（19,200 像素）和 FLIR 专利的 MSX®（多波段动态成像）（专利号：CN201380073584.9）技术增强支持的生动热成像效果。E5 Pro 配备 3.5 英寸、640 × 480 触摸屏，可简化您的工作流程。您可以编辑和整理照片，添加详细备注，并将文件直接从相机上传到 FLIR Ignite 云，以便从任何设备轻松访问。可直接在 FLIR Ignite 中与客户共享图像和创建快速报告，或者在 FLIR Thermal Studio 中创建高级报告。
所有新购买的 FLIR Ex Pro 系列产品均包括延长的 FLIR Protect 保修期、12 个月的 FLIR Ignite Pro 订阅以及 FLIR Academy 提供的 FLIR Ex Pro 系列和红外基础知识培训，使其成为同类产品中更具价值的热像仪和您日常工作中必不可少的工具。
MSX Image Enhancement
All Ex Pro-Series thermal cameras feature Flir's unique Multi Spectral Dynamic Imaging (MSX®), which adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an all-in-one, undiluted thermal picture with visible light features that lets you instantly recognize where the problematic heat pattern is. MSX is real time so you can see its results immediately in the camera's LCD.
Over-the-Air Updates Keep Your Camera Current
With Over-the-air (OTA) updates, your Flir camera will always have the latest firmware, bug fixes, and features. When you connect your camera to the internet, it will automatically search for firmware updates.
Professional Reports that Help Your Customer and Your Business
The right image analysis and reporting software can greatly improve your business by making it easier for your customers to understand the problem and feel confident that you fixed it.
The Flir Ignite cloud service allows you to back up images directly to the cloud, organize and edit files, and create simple reports. And for advanced editing and reporting, there's Flir Thermal Studio Suite: a desktop software offering batch processing, feature-rich measurement tools, and customized reports.
单触式电平/跨度功能可节省时间
通过单触式电平/跨度功能，您只需轻触屏幕，就可以在热图像中选择一小块聚焦区，相机将根据这块区域在图像中的热对比度自动调整电平和跨度。结果：省下了手动调整的时间。
成为 Thermal Studio 专家
通过红外培训中心的在线培训课程，学习使用 FLIR Thermal Studio Suite 软件编辑图像、分析图像并生成定制报告。该虚拟课程涵盖了您需要了解的所有内容，包括：
- 如何调整图像参数和优化热对比度
- 如何创建图像处理的批处理功能
- 如何设计新的报告模板
编辑和整理您的照片，添加详细备注，并将其从相机上传到 FLIR Ignite 云，以便从任何设备轻松访问。
FLIR 获得专利的 MSX®（多波段动态成像）（专利号：CN201380073584.9）增强功能提供高精细热图像，帮助您快速识别问题所在。
在 FLIR Ignite 中立即共享图像并创建快速报告，或在 FLIR Ignite 或 FLIR Thermal Studio 中创建高级客户端报告。
规格
| Highlighted | |
|---|---|
| IR Resolution | 160 × 120 (19,200 pixels) |
| Thermal Sensitivity_NETD | <0.06°C (0.11°F) / <60 mK at 30°C (86°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F) |
| Field of view [FOV] | 33° × 25° |
| Digital Camera | 5 MP |
| Image Modes | Thermal MSX, Thermal, Picture-in-Picture, Digital camera |
| Display | 3.5 in. 640 × 480 color LCD |
| Storage Media | Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi) |
| 成像与光学 | |
|---|---|
| Color palettes | Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC |
| Detector Type | Uncooled microbolometer |
| Digital Camera | 5 MP |
| f number | 1.4 |
| Field of view [FOV] | 33° × 25° |
| Focus | Focus free |
| Image Frequency | 9 Hz |
| Image Modes | Thermal MSX, Thermal, Picture-in-Picture, Digital camera |
| IR Resolution | 160 × 120 (19,200 pixels) |
| Minimum Focus Distance | 0.36 m (1.18 ft) |
| Picture_in_Picture | IR area on visual image |
| Spatial resolution [IFOV] | 3.7 mrad |
| Spectral Range | 7.5 µm to 13 µm |
| Thermal Sensitivity_NETD | <0.06°C (0.11°F) / <60 mK at 30°C (86°F) |
| 测量与分析 | |
|---|---|
| Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F) |
| Camera size [L x W x H] | 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in) |
| Camera weight incl battery | 0.590 kg (1.30 lb) |
| Delta T | Yes, NFPA 70B compliant |
| Isotherm | Above alarm, below alarm |
| Measurements correction | Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation |
| Object Temperature Range | -20°C to 400°C (-4°F to 752°F) in two ranges |
| Spot Meter | Center spot; box with min./max. |
| 用户界面 | |
|---|---|
| Display | 3.5 in. 640 × 480 color LCD |
| Text | Text annotation on image using onscreen keyboard |
| Touchscreen | Capacitive touch |
| 通讯与数据存储 | |
|---|---|
| Storage Media | Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi) |
| WiFi | Standard: 802.11 a/b/g/n (2.4 and 5 GHz) |
| 电源 | |
|---|---|
| Battery operating time | 4 hours |
| Battery Type | Rechargeable Lithium ion battery |
| Charging system | Battery is charged inside the camera or in specific charger. |
| Charging Time | 2 hours |
| Power Management | Automatic shut-down |
| 环境与认证 | |
|---|---|
| Certifications | UL, CSA, CE, PSE and CCC, WEEE 2012/19/EC, RoHs 2011/65/EC |
| Drop test | 2 m (6.6 ft) |
| EMC | EN 301 489-1 EN 301 489-17 EN 61000-6-3 EN 61000-6-2 FCC 47 CFR Part 15 Class B |
| Encapsulation | IP54 (IEC 60529) |
| Humidity [operating and storage] | IEC 60068-2-30/24 h 95% relative humidity |
| Operating Temperature Range | -15°C to 50°C (5°F to 122°F) |
| Shock | 25 g (IEC 60068-2-27) |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Vibration | 2 g (IEC 60068-2-6) |
| 常规 | |
|---|---|
| Flashlight | Bright LED |
| List of Contents | Infrared camera, hard transport case, battery (inside camera), power supply (with EU, UK, US and AU plugs), FLIR Thermal Studio Starter, and printed documentation |
| Packaging Size | 385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in) |
| Size [L x W x H] | 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in) |
| Weight | 0.610 kg (1.34 lbs) |
