Discontinued

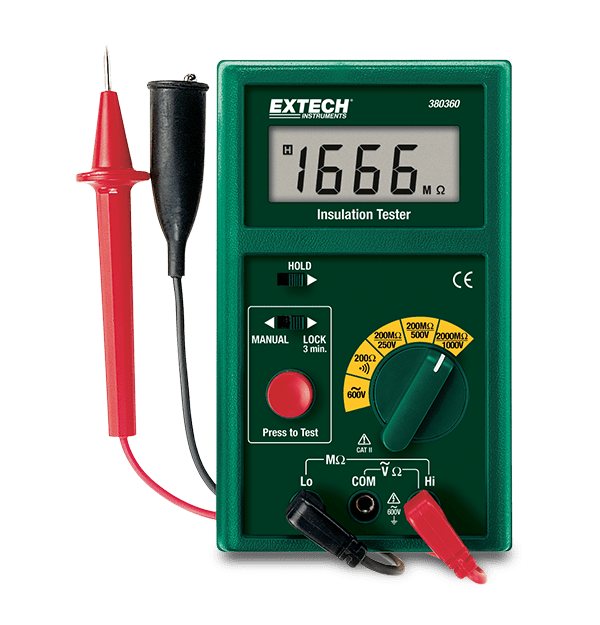

Extech 380360
Digital Megohmmeter
The Extech 380360 is a 1000 V Megohmmeter with an automatic 3 minute test. It has three test voltages of 250 V, 500 V and 1000 V, plus insulation resistance up to 2000 MΩ. Automatic discharge when the safety "Press to Test" button is released. Complete with 6 AA batteries, heavy duty 0.8 m (2.5 ft) test leads, alligator clip, large probe, and case with neck strap.
Specifications
| General | |
|---|---|
| AC Voltage | 600V |
| AC Voltage Basic Accuracy | 0.8% of reading + 3 digits |
| Continuity | <100Ω |
| Insulation Resistance | 200M, 2000MΩ |
| Insulation Resistance Basic Accuracy | <1000MΩ (3% of reading + 5 digits), >1000MΩ (5% of reading + 5 digits) |
| Insulation Test Voltage | 250V, 500V, 1000V |
| Low Resistance | 200Ω |
| Low Resistance Basic Accuracy | 1% of reading |
| Output Short Circuit Current | 1.5 mA 0.3-0.5 mA |
| Overload Protection | 2200V (< 1 min) |
| Resistance | 20/200Ω |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 3.8 × 6.3 × 2.3" (97 × 160 × 58mm) |
| Display | Segment LCD |
| Power | 6 × AA (1.5V) batteries |
| Safety Category | CAT II-600V |
| Warranty | 2 years |
| Weight | 13oz (369g) |
