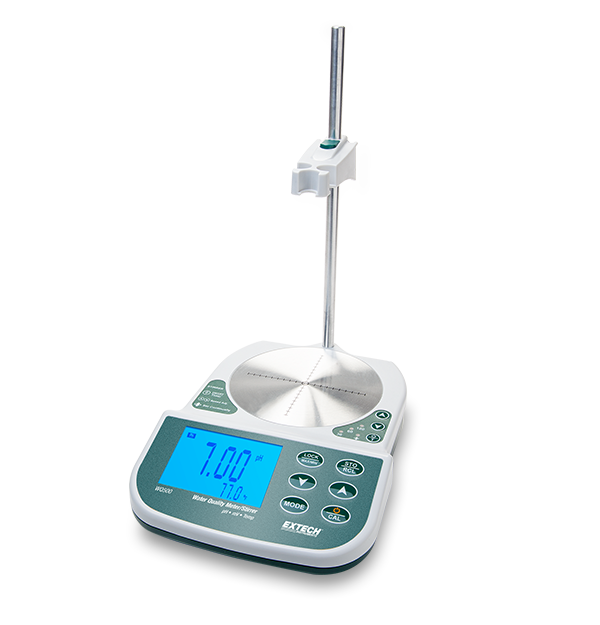

Extech WQ500
Benchtop Water Quality Meter/Stirrer
The Extech WQ500 is a 3 in 1 Benchtop Meter that measures pH, ORP, and temperature of liquids and semi-solids. The unit features a 30 min, 60 min, and 120 min timer or continuous stirring, plus 2 or 3 point pH calibration and automatic temperature compensation. This unit features a large backlit dual display and the ability to store and recall 150 readings. It can also capture readings directly to a PC via the built in USB interface. The WQ500 comes with pH glass electrode, temperature probe, pH calibration solutions (4 pH and 7 pH), plastic burette, polishing paper, electrode clamp and rod, software and USB cable, AC adapter, stirrer, and user manual.
Specifications
| General | |
|---|---|
| ORP | -1999 to + 1999mV |
| ORP Basic Accuracy | ±2mV |
| ORP Max Resolution | 0.1mV |
| pH | -2.00 to 16.00pH |
| pH Basic Accuracy | ±0.02pH |
| pH Max Resolution | 0.01pH |
| Temperature [Contact] | 32 to 212°F (0 to 100°C) for pH |
| Temperature [Contact] Basic Accuracy | ±1.8°F/1°C |
| Temperature [Contact] Max Resolution | 0.1° |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 4 × 5.7 × 1.3" (103 × 145 × 32mm) |
| Power | 100 to 240V AC adapter with US, EU, UK, and AU plugs |
| Warranty | 2 years |
| Weight | 1.5lbs (700g) |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech WQ500 Software
Datasheet
Extech WQ500 Datasheet
User Manual
Extech WQ500 WQ510 WQ530 User Manual
Certification
Extech WQ500 Declaration of Conformity
