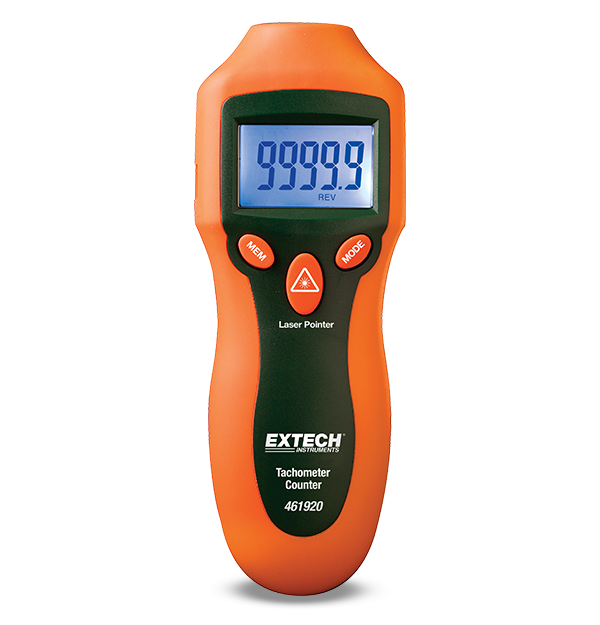

Extech 461920
Mini Laser Photo Tachometer Counter
Extech's 461920 is a tachometer for RPM measurements. Make safe, non-contact RPM measurements (2 to 99,999 RPM) of rotating objects by pointing the integral laser (1.6-ft. target distance) at the reflective tape placed on the object to be measured. Complete with 9-Volt battery, reflective tape and user manual.
Specifications
| General | |
|---|---|
| Revolution Count (Photo) | 1 to 99,999 revolutions |
| Revolution Count (Photo) Basic Accuracy | ±0.05% |
| Revolution Count (Photo) Max Resolution | 1 count |
| Rotation Speed (Strobe) | 2 to 99,999 rpm |
| Rotation Speed (Strobe) Basic Accuracy | ±0.05% |
| Rotation Speed (Strobe) Max Resolution | 0.1rpm |
| Additional Details | |
|---|---|
| Certifications | 461920-NIST_S: CE, NIST 461920_S: CE |
| Dimensions | 6.2 × 2.3 × 1.6" (160 × 60 × 42mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 5.3oz (151g) |
Resources & Support
Datasheet
Extech 461920 Datasheet
User Manual
Extech 461920 User Manual
Certification
Extech 461920 Declaration of Conformity
