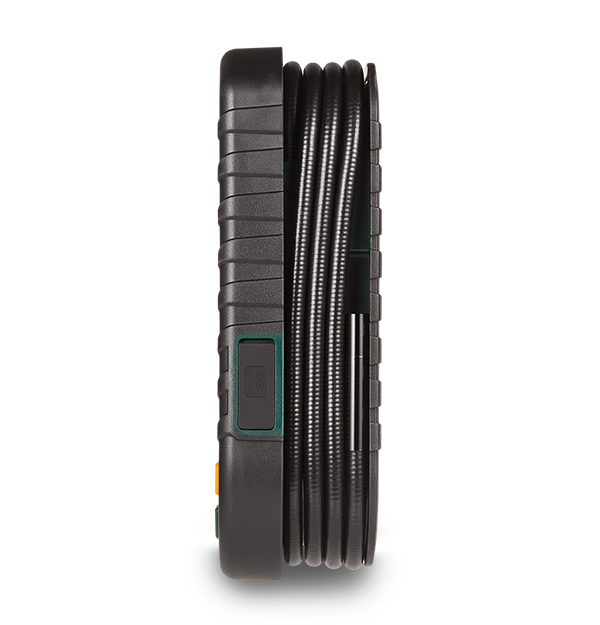

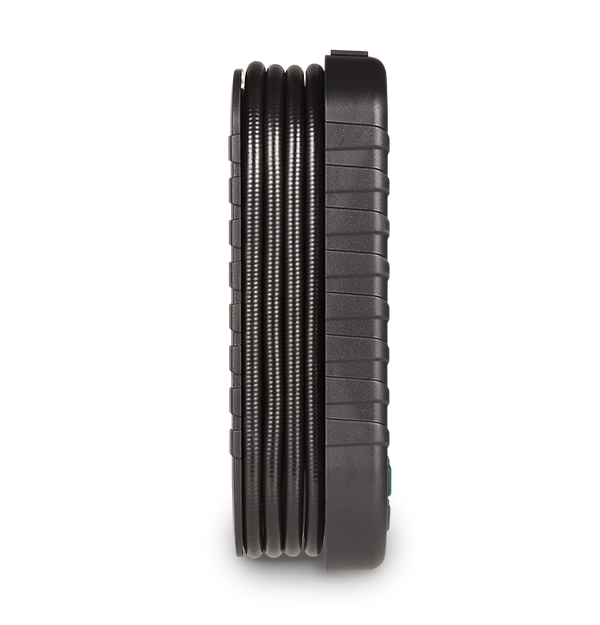

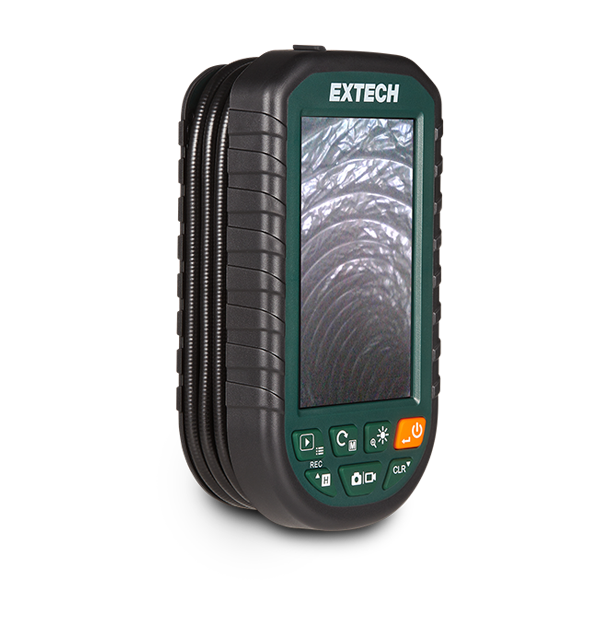

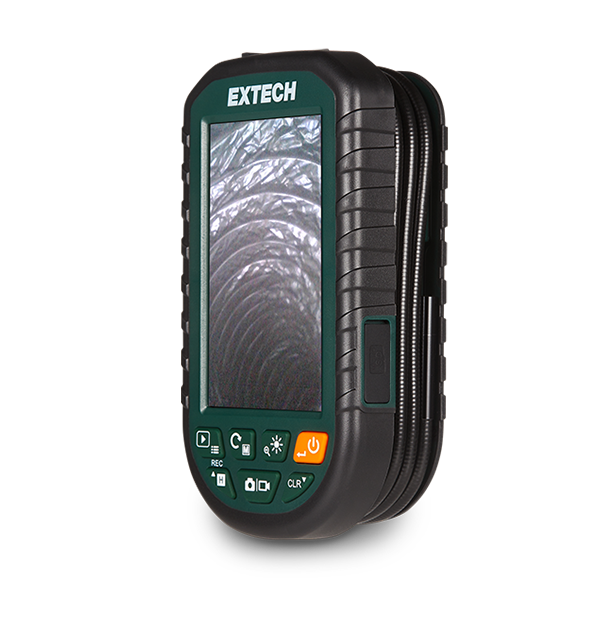

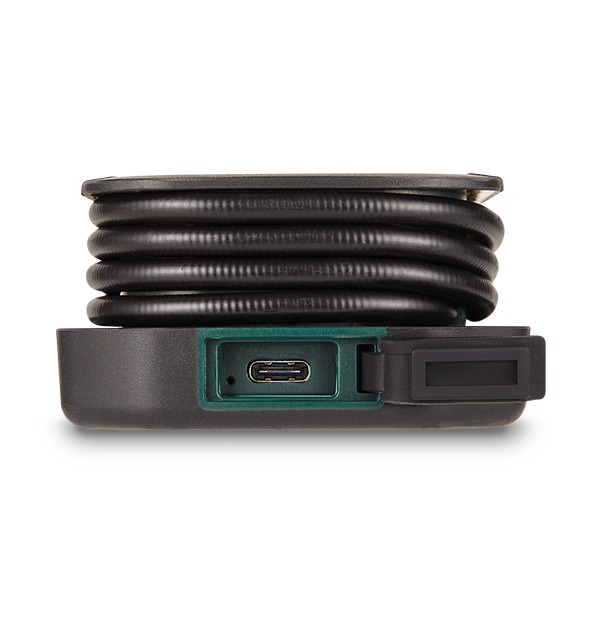

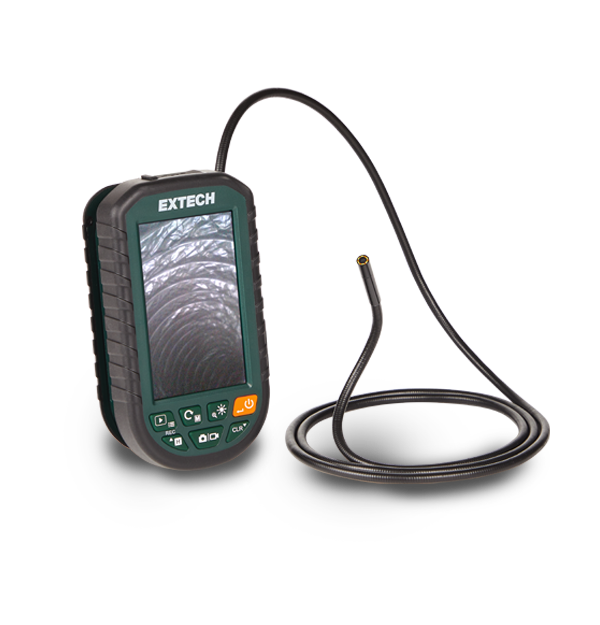

Extech’s palm-sized borescope includes a convenient compartment to coil the camera probe for easy storage. It features a waterproof (IP67) 5.5 mm camera probe with a 1 m flexible goose-neck cable that retains it’s configured shape. The camera delivers sharp 1280 × 720 resolution imaging, while the 3.5 in. IPS display provides clear viewing. Built-in bright LED lamps illuminate the inspection area, and additional features include 3x digital zoom, video recording capability, and microSD card storage for easy file management.
Capture and store clear images and videos with 1280 × 720 resolution
Get into tight spaces with a 5.5 mm camera diameter and 1 m probe

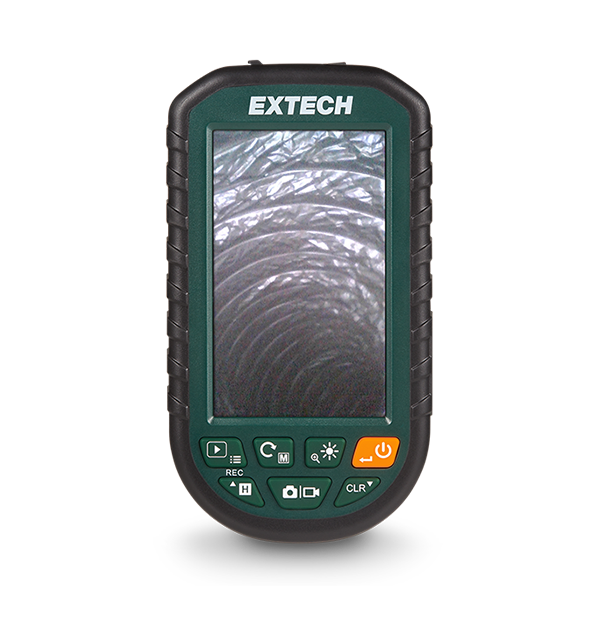

The BR95 features a 3.5 in IPS display, 800 × 480 resolution, 3x digital zoom, and image flip feature
Specifications
| General | |
|---|---|
| Cable Length | 1 m (3.28 ft) |
| Datalogging Interval | Configurable: 5s, 15s, 30s, 1 min |
| Diameter | 5.5 mm (0.22 in) |
| Direction of Camera View | Forward |
| Field of View | 68° |
| Focus Distance | 35 mm to 60 mm (1.4 in to 2.4 in) |
| Memory | 16 GB MicroSD card included (supports up to 256 GB) |
| Minimum Bend Radius | 14 mm (0.56 in) |
| Probe Flexibility | Semi-Rigid |
| Resolution | Camera Probe: 1280 × 720 |
| Zoom | Digital 1x, 2x, 3x |
| Additional Details | |
|---|---|
| Certifications | CE, UKCA |
| Connector(s) | USB Type-C |
| Data Logging | Available only when the compatible external USB sensor is connected |
| Dimensions | 129 × 73 × 39 mm (5.1 × 2.9 × 1.5 in) |
| Display | 3.5 in IPS Display (800 × 480) |
| IP Rating | IP67 (Camera Probe only) |
| Operating Conditions | 0°C to 45°C (32°F to 113°F), <85% RH |
| Power | 3.7 V Li-Ion Battery with 3.5 Hour Operating Time Auto Power Off: Configurable: 5 min, 10 min, 20 min, off |
| Warranty | 2 years |
| Weight | 262 g (0.58 lb) |
