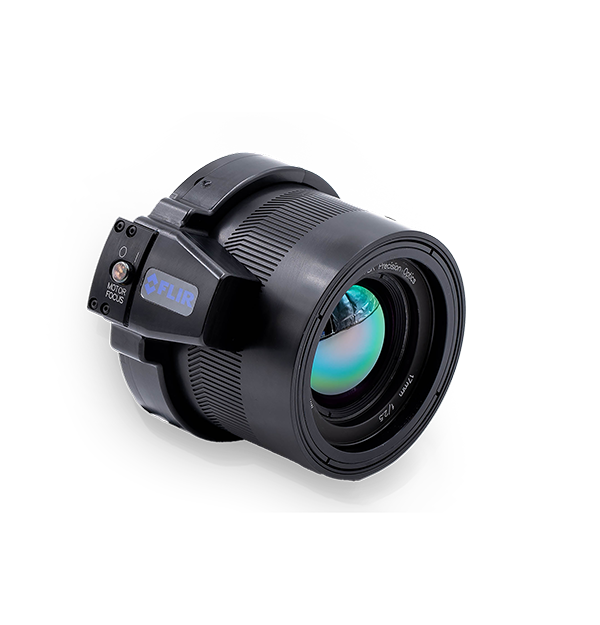

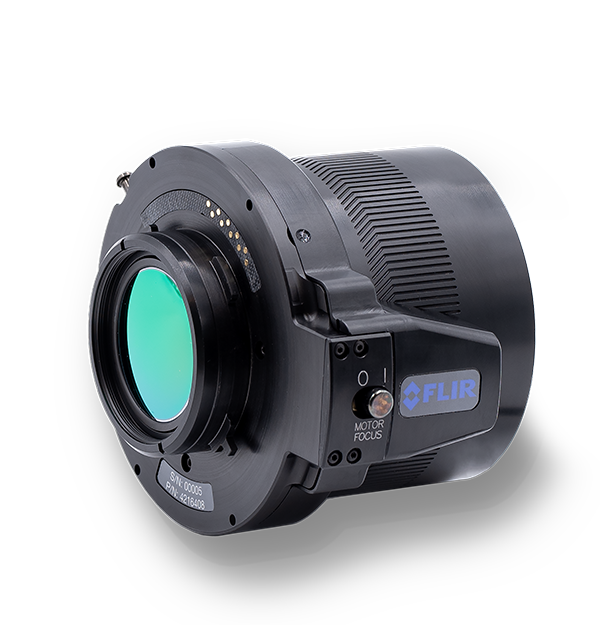

Lente de bayoneta, motorizado FPO MWIR de 17 mm, 3.0-5.0 μm, f/2.5 (4216408)

Lente de bayoneta, motorizado FPO MWIR de 17 mm, 3.0-5.0 μm, f/2.5, para cámaras de I+D y científicas FLIR, como A67xx MWIR y A85xx MWIR.

Especificaciones

Generación de imágenes y óptica
Banda espectral 3 - 5 µm
Distancia hiperfocal 5 m (a 4.2 μm)
Distorsión <3,5 %
Diámetro 90 mm/3.54 in (62 mm/2.44 in CL to Toggle)
Enfoque Manual/motorizado
Longitud 69 mm (2.71 in)
Longitud focal 17 mm
Número_F f/2,5
Rango de enfoque 0.06 m al infinito
Comunicación y almacenamiento de datos
Interfaz Bayoneta FPO motorizada de 5 lengüetas **NO es compatible con la bayoneta no motorizada
Características medioambientales y certificaciones
Rango de temperatura de almacenamiento Entre -20°C y 60°C (entre -4°F y 140°F)
Rango de temperatura operativa -20 °C a 50 °C (-4 °F a 122 °F)
General
Peso 0.67 kg (1.47 lb)
Transmisión promedio 95.12 %

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
