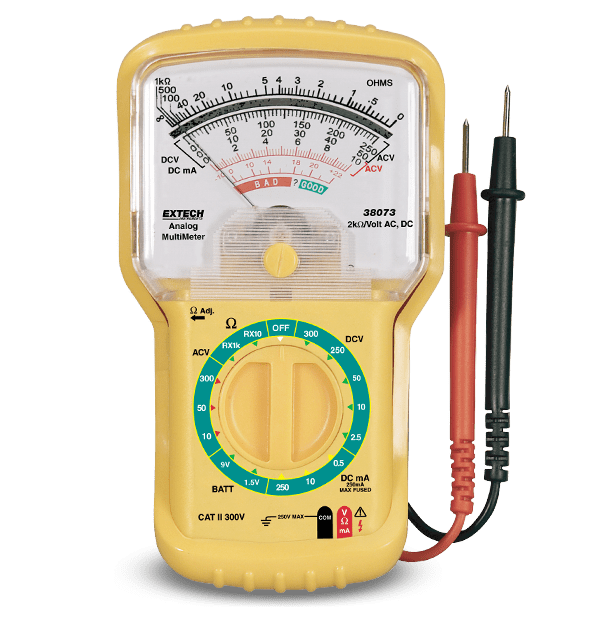

Extech 38073
Mini Analog MultiMeter
Extech’s 38073 Mini Analog MultiMeter offers the testing advantages of an analog meter with a pocket-friendly size. This compact multimeter is equipped with measurement capabilities that are perfect for a electrical hobbyist, electronics tinkerer, home DIYer, and shadetree mechanic. Useful for illustrating adjustments made to a circuit between relative high and low settings, this meter can be used to perform basic troubleshooting on anything connected to an outlet. Complete with protective holster, test leads, and one 1.5 V AA battery.
Especificaciones
| Especificaciones generales | |
|---|---|
| Corriente CC | 0.5mA, 10mA, 250mA |
| Decibelio | -10 to 56dB (0dB, 1mW, 600Ω) |
| Precisión básica de corriente CD | ±5% full scale |
| Precisión básica de voltaje CA | ±5% full scale |
| Precisión básica de voltaje CD | ±5% full scale |
| Prueba de batería | 1.5V and 9V |
| Resistencia | 10kΩ, 1MΩ |
| Voltaje CA | 10V, 50V, 300V |
| Voltaje CC | 2.5V, 10V, 50V, 250V, 300V |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × AA (1.5V) battery |
| Categoría de seguridad | CAT II-300V |
| Certificaciones | CE |
| Dimensiones | 3.5 × 6.1 × 1.9" (88 × 155 × 49mm) with holster |
| Garantía | 2 years |
| Pantalla | Analog |
| Peso | 8.2oz (288g) with holster and test leads |
Resources & Support
User Manual
Manual del usuário de Extech 38073
User Manual
Extech 38073 User Manual
Certification
Extech 38073 Declaration of Conformity
Datasheet
Extech 38073 Datasheet
