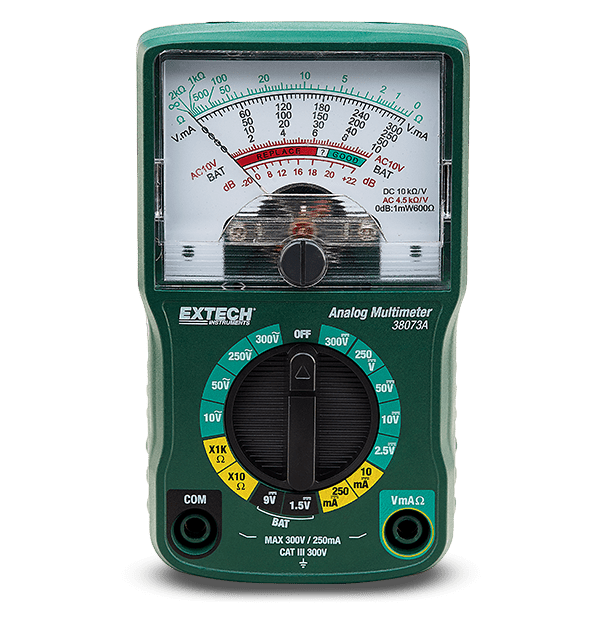

Extech 38073A
Mini Analog MultiMeter
Extech’s 38073A Mini Analog MultiMeter offers the testing advantages of an analog meter with a pocket-friendly size. This compact multimeter is equipped with measurement capabilities that are perfect for a electrical hobbyist, electronics tinkerer, home DIYer, and shadetree mechanic. It offers 6 functions and includes test leads plus an easy to read, color coded analog display. Useful for illustrating adjustments made to a circuit between relative high and low settings, this meter can be used to perform basic troubleshooting on anything connected to an outlet. Complete with test leads and a 1.5 V AA battery.
Especificaciones
| Especificaciones generales | |
|---|---|
| Corriente CC | 10mA, 250mA |
| Decibelio | -20 to 22dB (0dB: 1mW, 600Ω) |
| Precisión básica de corriente CD | ±4% full scale |
| Precisión básica de voltaje CA | ±5% full scale |
| Precisión básica de voltaje CD | ±4% full scale |
| Prueba de batería | 9V and 1.5V |
| Resistencia | 10Ω, 1kΩ |
| Voltaje CA | 10V, 50V, 250V, 300V |
| Voltaje CC | 2.5V, 10V, 50V, 250V, 300V |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Categoría de seguridad | CAT III-300V |
| Certificaciones | CE,ETL |
| Dimensiones | 4.6 × 2.7 × 1.3" (116 × 68 × 34mm) |
| Garantía | 2 years |
| Peso | 4.2oz (120g) |
Resources & Support
User Manual
Manual del usuário de Extech 38073A
Certification
Extech 38073A Declaration of Conformity
User Manual
Extech 38073A User Manual GB
Datasheet
Extech 38073A Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
