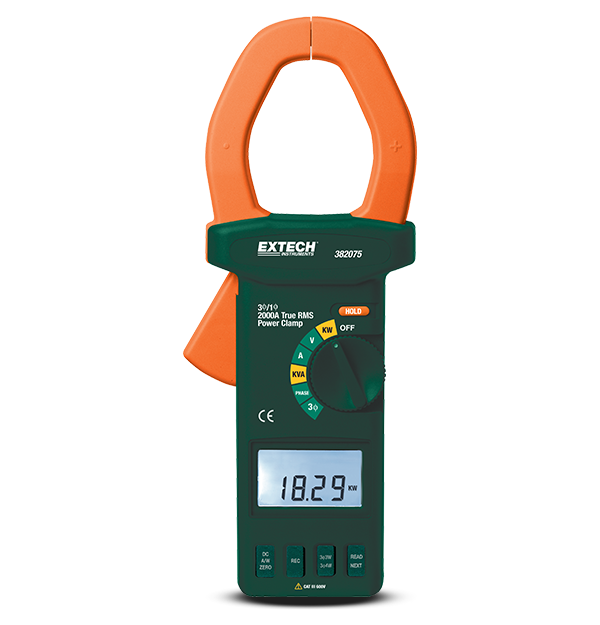

Extech 382075
2000A True RMS AC/DC 3-Phase Clamp-on Power Analyzer
The Extech 382075 is a 3-Phase True RMS Clamp-on Power Analyzer which can be used on 3 and 4 wire balanced or unbalanced loads. It can measure reactive and apparent power up to 1200 kW. Additional measurements include watts, voltage, current, frequency, power factor, and phase angle. It can display lead, lag current, and voltage phase shift in degrees, plus it can also store and recall the previous 4 readings. Additional features include DC current auto zero, data hold, min/max, and relative mode. Comes complete with test leads, carrying case, and 9 V battery.
Especificaciones
| Especificaciones generales | |
|---|---|
| Corriente CA | 2000A |
| Corriente CA, resolución máx. | 0.1A |
| Corriente CC | 2000A |
| Corriente CC, resolución máx. | 0.1A |
| Factor de potencia | 0.2 to 1 |
| Fase | -90° to +90° |
| Fase, resolución máx. | 0.1° |
| Frecuencia | 40 to 400Hz |
| Frecuencia, resolución máx. | 0.1Hz |
| Potencia aparente | 1200KVA |
| Potencia aparente, resolución máx. | 0.01/0.1KVA |
| Potencia reactiva | 1200KVAR |
| Potencia reactiva, resolución máx. | 0.01/0.1KVAR |
| Potencia verdadera | 1200kW |
| Potencia verdadera, resolución máx. | 0.01/0.1kW |
| Precisión básica de corriente CA | ±2% of reading + 5 digits |
| Precisión básica de corriente CD | ±2% of reading + 5 digits |
| Precisión básica de factor de potencia | PF=W/(V×A) |
| Precisión básica de fase | ±0.5° |
| Precisión básica de frecuencia | ±1% of reading + 2 digits |
| Precisión básica de potencia aparente | ±2% of reading + 5 digits |
| Precisión básica de potencia reactiva | ±2% of reading + 5 digits (PF<0.91) |
| Precisión básica de potencia verdadera | ±2% of reading + 5 digits |
| Precisión básica de voltaje CA | ±2% of reading + 5 digits |
| Precisión básica de voltaje CD | ±2% of reading + 5 digits |
| Resolución máxima de factor de potencia | 0.01 |
| RMS real | Yes |
| Voltaje CA | 600VAC |
| Voltaje CA, resolución máx. | 0.1V |
| Voltaje CC | 800VDC |
| Voltaje CC, resolución máx. | 0.1V |
| Detalles adicionales | |
|---|---|
| Categoría de seguridad | CAT III-600V |
| Certificaciones | CE, UL |
| Dimensiones | 10.7 × 4.8 × 1.8" (271 × 122 × 46mm) |
| Garantía | 2 years |
| Peso | 24.7oz (700g) |
