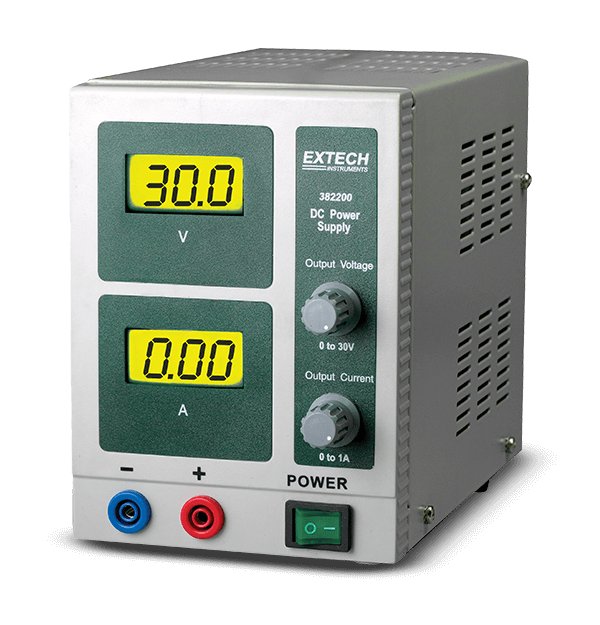

Extech 382200
Fuente de alimentación de CC de salida única de 30 V/1 A
Fuente de alimentación de CC digital de voltaje/corriente constante con pantalla LCD doble
Especificaciones
| Especificaciones generales | |
|---|---|
| Line Current Regulation | <0.2 % + 3 mA |
| Line Voltage Regulation | <0.01 % + 3 mV |
| Load Current Regulation | <0.2 % + 3 mA |
| Load Voltage Regulation | <0.01 % + 2 mV |
| Output Current | 0-1.00 A CC |
| Output Current Basic Accuracy | ±2 % de la lectura |
| Output Voltage | 30.0 V CC |
| Output Voltage Basic Accuracy | ±1.5 % de la lectura |
| Ripple and Noise | <0.5 mV/<3 mA |
| Detalles adicionales | |
|---|---|
| Dimensions | 9.4 × 4.25 × 6" (240 × 108 × 154 mm) |
| Power | 115 V/230 V; 50/60 Hz |
| Warranty | 2 años |
| Weight | 4.4 lb (2 kg) |
Resources & Support
User Manual
Manual del usuário de Extech 382200 382202
Certification
Extech 382200 Declaration of Conformity
User Manual
Extech 382200 382202 User Manual
Datasheet
Extech 382200-382202 Datasheet
